EMPU-3401

A$0.00

In stock

SKU

EMPU-3401

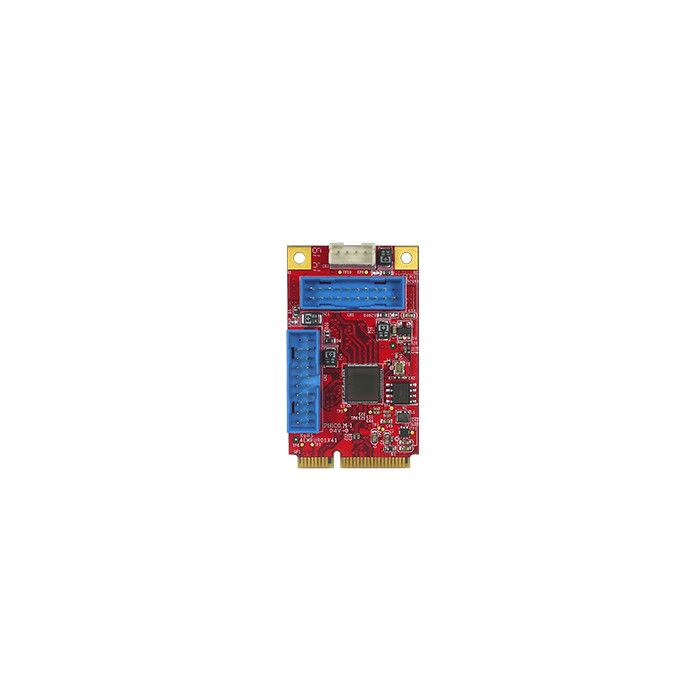

mPCIe to four USB 3.0 Module

mPCIe to four USB 3.0 Module

· PCI Express 2.0 to 4 x USB ports with SuperSpeed (5Gbps) data rate.

· Independent 1.5A overcurrent protection (OCP) for each port.

· Compliant with xHCI 1.0, USB 3.0 Rev 1.0.

· Two USB ports from CN1 provides limited power natively.

· Two USB ports from CN2 needs external power.

· Supports USB Battery Charging Specification Revision 1.2.

· Optional Industrial Temperature (-40°C to +85°C) support.

· 30μ golden finger, 3 years warranty.

· Industrial design, manufactured in innodisk Taiwan

Specifications

Module Name	EMPU-3401
Module Type	mPCIe to four USB 3.0 Module
Form Factor	mPCIe
Input I/F	PCI Express 2.0
Output I/F	USB 3.0
Output connector	19 Pin box header
TDP	1.12W (3.3V x 340mA)
Dimensions (W x L x H/mm)	30.0 x 50.9 x 8.45
Temperature	Operation: STD temp: 0°~70°C; W/T temp: -40°C ~ +85°C Storage: -55°C ~ +95°C
Environment	Vibration: 5G @7~2000Hz Shock: 50G @ 0.5ms
Notes	Please download driver from MyInnodisk website. Windows: XP(32 bit), 7(32/64 bit), Vista Linux: Kernel v2.6.0, v2.6.8 *After Win8 and Linux Kernel v2.6.31 supports built-in xHCI 1.0.

Description

mPCIe to four USB 3.0 Module

· PCI Express 2.0 to 4 x USB ports with SuperSpeed (5Gbps) data rate.

· Independent 1.5A overcurrent protection (OCP) for each port.

· Compliant with xHCI 1.0, USB 3.0 Rev 1.0.

· Two USB ports from CN1 provides limited power natively.

· Two USB ports from CN2 needs external power.

· Supports USB Battery Charging Specification Revision 1.2.

· Optional Industrial Temperature (-40°C to +85°C) support.

· 30μ golden finger, 3 years warranty.

· Industrial design, manufactured in innodisk Taiwan
