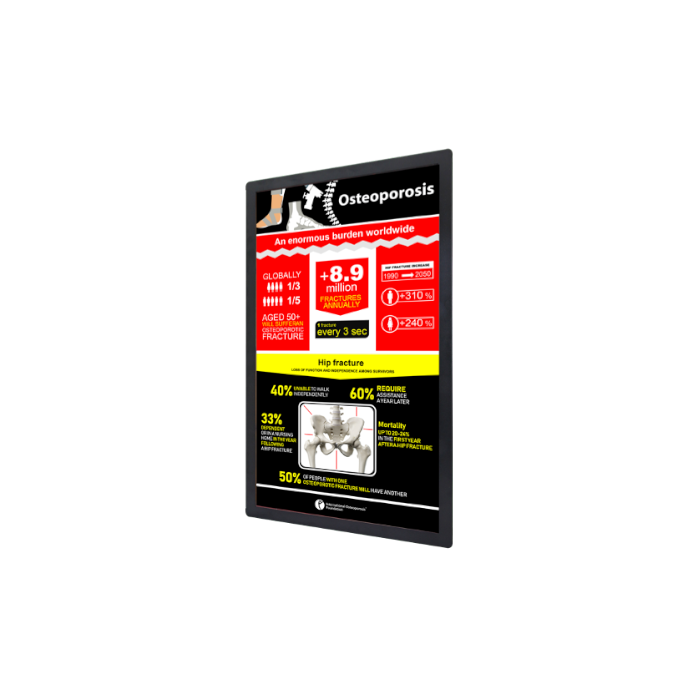

EPD-2501 Public Information e-Ink Display

Be the first to review this product

A$0.00

In stock

SKU

EPD-2501

Onboard Intel Celeron SoC BGA Processor N3350

Key Features:

25.3” E Ink Black/White/Red/Yellow
25.3” E Ink Gallery Plus Full colour 55K (Typ.)
25.3" E Ink Kaleido with colour 4096
Onboard Intel® Celeron® SoC BGA Processor N3350
DDR3L 1866MTs SO-DIMM up to 8GB,
2.5” SATA3 SSD 64GB
2 x HDMI, 1 x COM, 2 x LAN, 4 x USB 3.1(Gen1)
Front Cover Glass, Optional PMMA, support IP54
Super Slim Bezel Design
E Ink SDK / API support
Optional WiFi Module
Operating Temp 0~40C

Details

Using extremely low power and low reflectivity with no backlight, it can display healthcare information while reducing paper use and energy depletion. Furthermore, a 4-colour e-paper display is more appealing than a conventional monochrome e-paper. Collaborating with Biomdcare, Avalue will be exhibiting its MAB-T600 healthcare AI workstation in the “Medical AI” zone.

Key Features:

25.3” E Ink Black/White/Red/Yellow
25.3” E Ink Gallery Plus Full colour 55K (Typ.)
25.3" E Ink Kaleido with colour 4096
Onboard Intel® Celeron® SoC BGA Processor N3350
DDR3L 1866MTs SO-DIMM up to 8GB,
2.5” SATA3 SSD 64GB
2 x HDMI, 1 x COM, 2 x LAN, 4 x USB 3.1(Gen1)
Front Cover Glass, Optional PMMA, support IP54
Super Slim Bezel Design
E Ink SDK / API support
Optional WiFi Module
Operating Temp 0~40C

More Information

brand

Avalue Technology Inc

Specifications

-System Information-
Processor	Onboard Intel® Celeron® SoC BGA Processor N3350
System Memory	1 x 204-Pin DDR3L 1866MTs SO-DIMM up to 8GB
Board	ECM-APL2 + LT1000 T-CON Board

Storage
Storage	2.5” SATA3 SSD 64GB

External I/O
USB Port	4 x USB 3.1 (Gen1 5Gbps)
LAN Port	2 x RJ45 LAN port
Wireless LAN Antenna	mPCIe Wi-Fi/BlueTooth module

Panel
LCD Size	25.3“
LCD Panel	E Ink EL253TV1 E Ink AC253TT1
Display Type	E Paper Display
Resolution	3200x1800
Touch Screen	2.8 mm Super Clear CG

Wireless Communication
WLAN	Optional dual-band 2.4/5.0GHz wireless LAN
Bluetooth	Optional Bluetooth 5.0
Ethernet Chipset	Intel® I211AT, 10/100/1000 Base-Tx Gigabit Ethernet Compatible)

Mechanical & Environmental
Operating Temperature	0 ~ 40°C
Storage Temperature	-25 ~ 60°C
Operating Humidity	5% ~ 90% Relative Humidity, Non-condensing
Dimension (W x L x H)	L 607 x W 350 x H 38.8mm
Weight	4.4kg
Vibration Test	1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis
Shock Test	10Grms, IEC 60068-2-27, Half Sine, 11ms
Drop Test	ISTA-2A, IEC-60068-2-32 (96.5cm)
IP Rating	Front IP54
Power Requirement	+12V/5A (60W) (accept +12V DC in)
Power Connector	Lockable DC Jack
Color	Black

Software Support
OS Information	Windows 10 IoT / Linux

Description

Key Features:

25.3” E Ink Black/White/Red/Yellow
25.3” E Ink Gallery Plus Full colour 55K (Typ.)
25.3" E Ink Kaleido with colour 4096
Onboard Intel® Celeron® SoC BGA Processor N3350
DDR3L 1866MTs SO-DIMM up to 8GB,
2.5” SATA3 SSD 64GB
2 x HDMI, 1 x COM, 2 x LAN, 4 x USB 3.1(Gen1)
Front Cover Glass, Optional PMMA, support IP54
Super Slim Bezel Design
E Ink SDK / API support
Optional WiFi Module
Operating Temp 0~40C

Reviews

Write Your Own Review

Downloads

Datasheet
