ESPL-G4P1

A$0.00

In stock

SKU

ESPL-G4P1

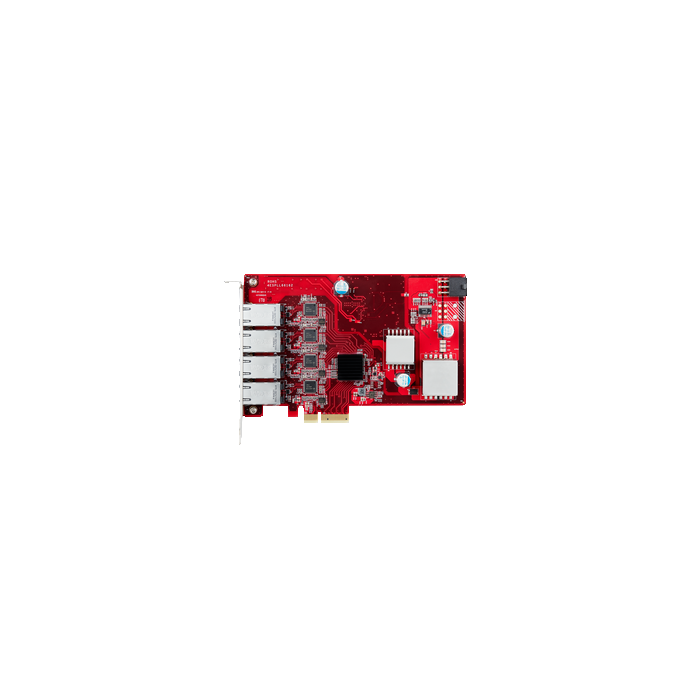

PCIe to four isolated PoE/PoE+ Module

PCIe to four isolated PoE/PoE+ Module

· Supports four isolated GbE LAN ports

· Four independent PSE channels

· Complies with IEEE 802.3af, up to 15.4W at 48V per PoE port

· Complies with IEEE 802.3at, up to 25.5W at 54V per PoE port

· Supports power input 12V~24V from 6pin PCIE-ATX

· Total power budget is 75W for 4 output PoE ports with maximum 25.5W per port

· Complies with EN61000-4-5 2kV surge protection

· Complies with IEC 60950-1:2005 + A1: 2009 + A2:2013 2kV HiPOT protection

· 30μ" golden finger, 3-year warranty

Specifications

Module Type	PCIe to four isolated PoE/PoE+ Module
Function	PoE
Form Factor	Standard PCIe
Output I/F	PoE/PoE+ x 4
Output connector	RJ45 x 4
TDP	8.58W (12V x 715mA From PCIe bus) 1.75W (3.3V x 530mA From PCIe bus)
Dimensions (W x L x H/mm)	169.55 x 111.15 x 19.6
Temperature	Operation: STD temp: 0°~70°C; W/T temp: -40°C ~ +85°C Storage: -55°C ~ +95°C
Environment	Vibration: 5G @7~2000Hz Shock: 50G @ 0.5ms
Notes	Please download driver from MyInnodisk website. Windows: XP(32bit), 7(32/64bit), 8/8.1(32/64 bit), 10(32/64bit) Linux: kernel 2.4 series, 2.6.x and 3.x version.

Description

PCIe to four isolated PoE/PoE+ Module

· Supports four isolated GbE LAN ports

· Four independent PSE channels

· Complies with IEEE 802.3af, up to 15.4W at 48V per PoE port

· Complies with IEEE 802.3at, up to 25.5W at 54V per PoE port

· Supports power input 12V~24V from 6pin PCIE-ATX

· Total power budget is 75W for 4 output PoE ports with maximum 25.5W per port

· Complies with EN61000-4-5 2kV surge protection

· Complies with IEC 60950-1:2005 + A1: 2009 + A2:2013 2kV HiPOT protection

· 30μ" golden finger, 3-year warranty
