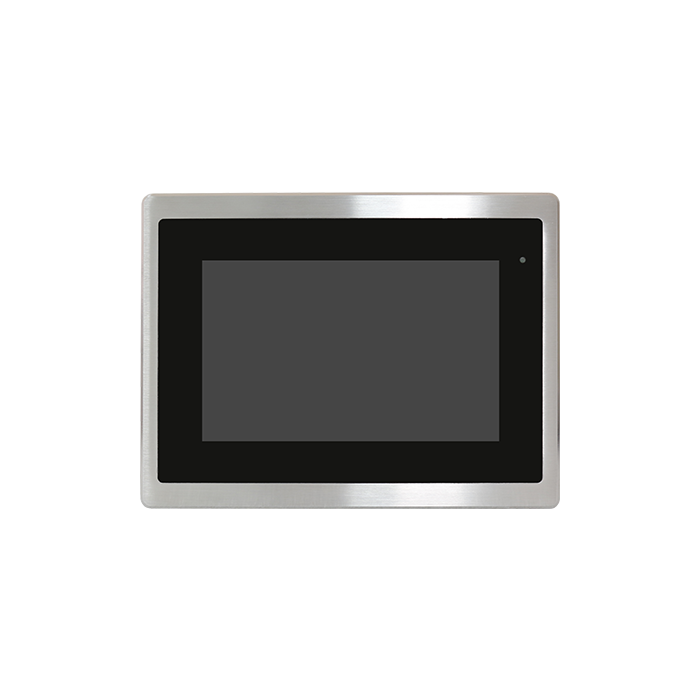

The APLEX FABS series is the ideal solution for a sterile environment. It can prevent sand, dirt, mould, or bacteria from contaminating food or other materials during the manufacturing process. We also devote ourselves to achieving food safety standards with optional EN 1672-2 certification. APLEX's new food safety design HMI focuses on improving food and beverage, pharmaceutical, and consumer packaged goods processing operations.
Touch Screen Type Projected Capacitive Touch (for P model) Resistive Touch (for R model) Glass (for G model) Interface USB Light Transmission(%) Resistive Touch: over 80% Projected Capacitive Touch: over 90%
Power Power Input DC 9~36V Power Consumption FABS-807P: 28W (MAX)
Mechanical Construction 304 Stainless steel front bezel (Default) 316 Stainless steel front bezel (Optional) Aluminium die-casting back cover Mounting Panel mount, VESA mount 75 x 75 IP Rating IP66/IP69K compliant front bezel Dimensions 217 x 163 x 40 mm Net Weight 1.1 kg
Environmental Operating Temperature 0~50˚C/ -20~60°C (option) Storage Temperature -30~70°C Humidity 10 to 95% @ 40°C, non- condensing Certificate R/P/G/RH/PH/GH Model: CE/FCC Class A P/G Model: EN 1672-2 (option)
Operating System Support Windows 10 IoT
Description
The APLEX FABS series is the ideal solution for a sterile environment. It can prevent sand, dirt, mould, or bacteria from contaminating food or other materials during the manufacturing process. We also devote ourselves to achieving food safety standards with optional EN 1672-2 certification. APLEX's new food safety design HMI focuses on improving food and beverage, pharmaceutical, and consumer packaged goods processing operations.
