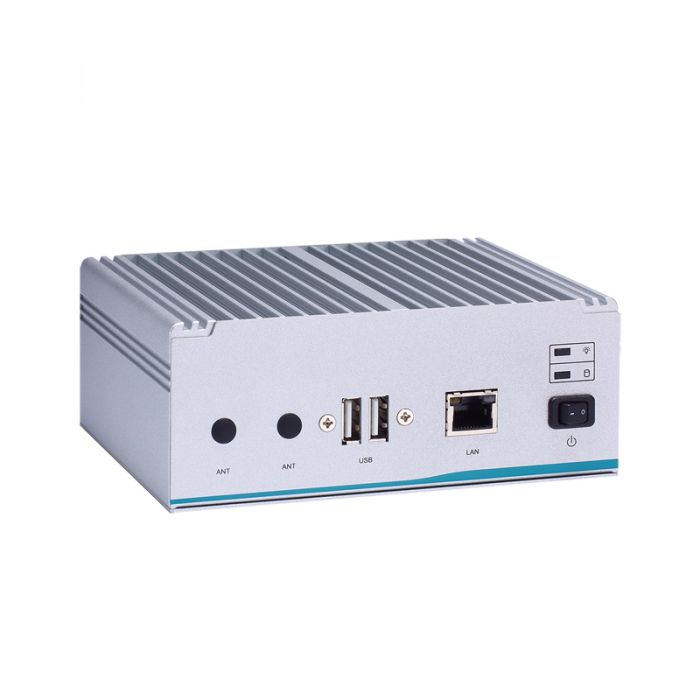

eBOX560-52R-FL Fanless i5/Celeron Palm-Size PC
Fanless Embedded System with Intel® Core™ i5-8365UE/Celeron® 4305UE Processor, HDMI/DisplayPort, 2 GbE LAN, 2 COM, 4 USB
- 141.6 x 106 x 55 mm
- 8th gen Intel® Core™ and Celeron® processor onboard (Whisky Lake-U )
- One M.2 Key E 2230 for Wi-Fi module
- 260-pin DDR4-2400 SO-DIMM, max. up to 32GB
- 2 GbE LAN and 2 USB 3.1 Gen2
- Supports DisplayPort and HDMI for dual independent displays
- Multiple mounting designs: Wall mount, DIN-rail and VESA mountt
More Information
| brand |
Axiomtek |
| Specifications |
| CPU |
- Intel® Core™ i5-8365UE, 1.6 GHz
- Intel® Celeron® 4305UE, 2.0 GHz
|
| Chipset |
|
| System Memory |
- 1 x 260-pin DDR4-2400 SO-DIMM, max. up to 32GB
|
| BIOS |
|
| COM |
|
| USB |
- 2 x USB 2.0
- 2 x USB 3.1 Gen2
|
| Ethernet/PoE |
- 2 x 10/100/1000 Mbps (Intel® i219-LM, Intel® i211-AT)
|
| Display |
|
| Digital I/O |
|
| Audio |
|
| Storage |
- 1 x 2.5" SATA HDD drive bay (max. up 9.5 mm height)
|
| Expansion |
- 1 x M.2 Key E 2230 (for Wi-Fi)
|
| Others |
- 1 x ATX power switch
- 1 x AT/ATX quick switch
- 1 x Screw type VDC power input connector
- 2 x Antenna opening
|
| Power Supply |
|
| Watchdog Timer |
- 65535 levels, 1 to 65536 sec.
|
| Construction |
- Aluminum extrusion and heavy-duty steel, IP40
|
| Operating Temperature |
- -10°C to +50°C (+14°F to +122°F) with 0.7 m/s air flow (with W.T. SSD/DRAM)
|
| Relative Humidity |
- 10% - 90%, non-condensing
|
| Vibration |
- IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration)
|
| Shock |
- IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
|
Dimensions
(W x D x H) |
- 141.6 x 106 x 55 mm (5.57" x 4.17" x 2.17")
|
| Weight (net/gross) |
- 0.6 kg (1.32 lb)/1.5 kg (3.3 lb)
|
| Certifications |
|
| EOS Support |
|
| Software Support |
|
| Mounting |
- Wall mount Kit
- DIN-rail kit
|
|
| Description |
- 141.6 x 106 x 55 mm
- 8th gen Intel® Core™ and Celeron® processor onboard (Whisky Lake-U )
- One M.2 Key E 2230 for Wi-Fi module
- 260-pin DDR4-2400 SO-DIMM, max. up to 32GB
- 2 GbE LAN and 2 USB 3.1 Gen2
- Supports DisplayPort and HDMI for dual independent displays
- Multiple mounting designs: Wall mount, DIN-rail and VESA mountt
|
