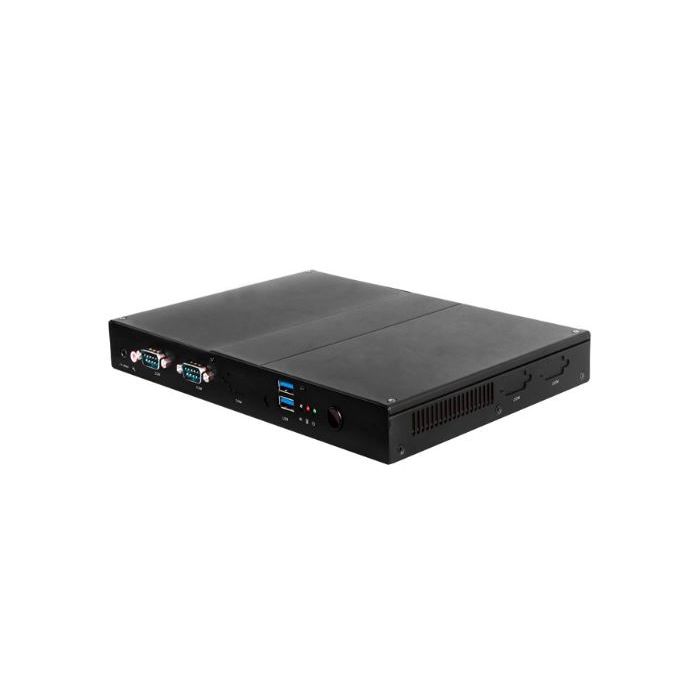

G468 Quad Display Media Player
REPLACED BY DM6
This product is now end of life. There might still be stock available; get in touch with us for more details or suggestions for appropriate replacements.
The player adopts high-performance Ryzen Embedded V1605B/V1807B processors. It supports dual-channels DDR4 memory and it's flexible to extend the hard drive through M.2 and 2.5" SATA slots.
Key Features:
AMD V1000 Platform Processors
2 x SO-DIMM DDR4-2400MHz, Up to 32GB
4 x HDMI
1 x 2.5"SATA,1 x M.2(2242/2280) for SSD
2 x USB 3.1,2 x USB 2.0,2 x RS232
1 x M.2(2230) for WiFi/BT
More Information
Brand
Giada Technology Inc.
Specifications
Processor CPU
AMD V1605B / AMD V1807B
Frequency
2.0 GHz / 3.35 GHz
BIOS
AMI Source Code
Chipset
SOC
Memory Type
DDR4-2400MHz
Socket
2 x SO-DIMM
Max Size
Max 3200MHz 32GB
Graphics GPU
AMD VEGA GPU
Graphic Engine
DirectX12, OpenGL4.4 and OpenCL 1.2
HDMI
4 x HDMI 2.0(Max.4096 x 2304 @60Hz)
Network Controller
Realtek RTL 8111H Gigabit Ethernet
I/O USB
2 x USB 3.1， 2 x USB 2.0
Serial Port
2 x RS232
Audio
1 x MIC-IN, 1 x AUDIO-OUT & SPDIF
Mini-PCIe1
1 x Full-size Mini-PCIe for mSATA
M.2(2230)
1 x M.2(2230) for WiFi/BT
Storage SATA
1 x 2.5"SATA
M.2
1 x M.2(2242/2280) for SSD
JAHC Tech WatchDog Timer
0~255 Second Time Out Support
Auto Power On
Power Activated Automatically Start
RTC
Set Up Independently Every day, A Week as a Cycle
Operation System Windows
Windows 10(64-bit)
Linux
Supported
Power Power Type
DC-IN
Input Voltage
19V / 4.74A
Mechanical Dimensions (W × D × H)
240mm x 175mm x 28mm(9.45"x6.83"x1.1")
Construction
Metal
Mounting(Optional)
Wall Mounting and VESA Mounting(JZ300)
Colour
Black
Environment Operating Temperature
0℃ ~ 40℃ ( 32 ℉ ~ 140 ℉ ) at 0.7m/s Air Flow
Relative Humidity
95%@60℃ (non-condensing)
Certification Certification
CE, FCC Class B, CCC
Description
The player adopts high-performance Ryzen Embedded V1605B/V1807B processors. It supports dual-channels DDR4 memory and it's flexible to extend the hard drive through M.2 and 2.5" SATA slots.
Key Features:
AMD V1000 Platform Processors
2 x SO-DIMM DDR4-2400MHz, Up to 32GB
4 x HDMI
1 x 2.5"SATA,1 x M.2(2242/2280) for SSD
2 x USB 3.1,2 x USB 2.0,2 x RS232
1 x M.2(2230) for WiFi/BT
