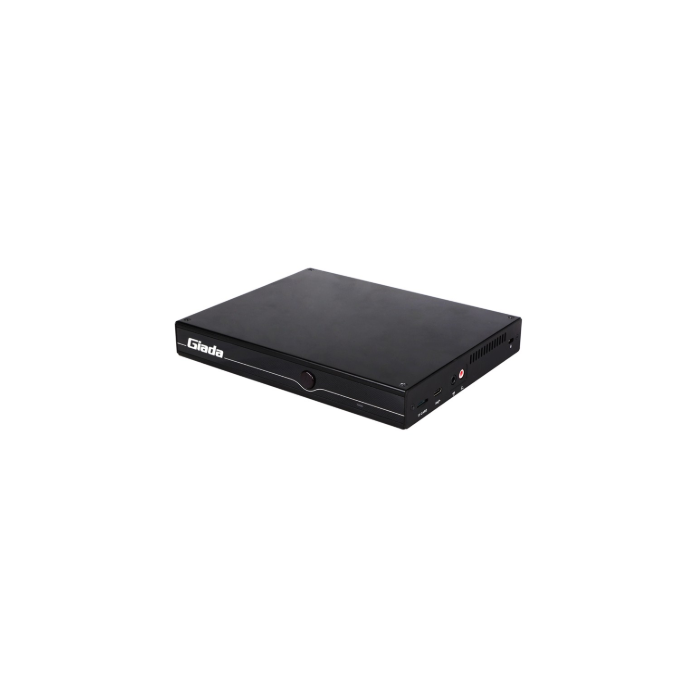

D67 4K Dual Display Media Player

A$682.00

In stock

SKU

D67

REPLACED BY D612

This product is now end of life. There might still be stock available; get in touch with us for more details or suggestions for appropriate replacements.

Details

Book size Kabylake high end signage player, Intel 7^th generation core processor

· Intel 7^th generation core processor

· 2 x SO-DIMM DDR3L/DDR4 Memory,Up to 32GB

· 1 x DP,1 x HDMI, Supporting 4K Display

· 1 x 2.5” SATA, 1 x mSATA, 1 x M.2 (2242/2280)

· 3 x USB 3.0, 3 x USB2.0, 1 x RS232

· 1 x RJ45,1 x Mini-PCIe for WiFi/BT/3G/4G, 1 x SIM Slot

More Information

Brand

Giada Technology Inc.

Specifications

		D67
Processor	CPU	Intel^®Pentium 4415U/Core i3-7100U/Core i5-7200U
Frequency	2.30GHz / 2.40GHz / 2.50GHz(Up to 3.10GHz)
BIOS	AMI Source Code
Chipset	SOC
Memory	Type	DDR4/DDR3L
Socket	2 x SO-DIMM
Max Size	32GB
Graphics	GPU	Intel^® HD Graphics 620
Graphic Engine	Direct3D 2015, OpenGL 4.5, OpenCL 2.1
DP	1 x DP (Max.4096 x 2304 @60Hz)
HDMI	1 x HDMI (Max.3840x2160 @30Hz)
Network	Controller	Realtek 8111H Gigabit Ethernet
Interface	1 x RJ45
I/O	USB	3 x USB 3.0,3 x USB 2.0
Serial Port	1 x RS232
Audio	1 x AUDIO-OUT, 1 x MIC-IN
Mini-PCIe1#	1 x Full-size Mini-PCIe for mSATA
Mini-PCIe2#	1 x Full-size Mini-PCIe for WiFi/BT/3G/4G
M.2(2230)	1 x M.2(2242/2280) for SSD
SIM	1 x SIM Slot
Storage	SATA	1 x 2.5\"SATA
mSATA	1 x Full-size mSATA
M.2	1 x M.2(2242/2280) for SSD
JAHC Tech	WatchDog Timer	0~255 Second Time Out Support
Auto Power On	Power Activated Automatically Start
Remote Control	By IR Controller for Power On
RTC	Set Up Independently Every day, A Week as a Cycle
Operation System	Windows	Windows 10（64-Bit）
Linux	Supported
Power	Power Type	DC-IN
Input Voltage	19V / 3.42A
Mechanical	Dimensions (W × D × H)	189.6mm x 148.3mm x 26mm（7.46\"x 5.84\"x 1.02\"）
Construction	Metal
Mounting	Desk/Wall Mounting and VESA Mounting Kit (JZ183)
Color	Black
Environment	Operating Temperature	0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow
Relative Humidity	95%@40℃ (non-condensing)
Certification	Certification	CE, FCC Class B, CCC

Description

Book size Kabylake high end signage player, Intel 7^th generation core processor

· Intel 7^th generation core processor

· 2 x SO-DIMM DDR3L/DDR4 Memory,Up to 32GB

· 1 x DP,1 x HDMI, Supporting 4K Display

· 1 x 2.5” SATA, 1 x mSATA, 1 x M.2 (2242/2280)

· 3 x USB 3.0, 3 x USB2.0, 1 x RS232

· 1 x RJ45,1 x Mini-PCIe for WiFi/BT/3G/4G, 1 x SIM Slot
