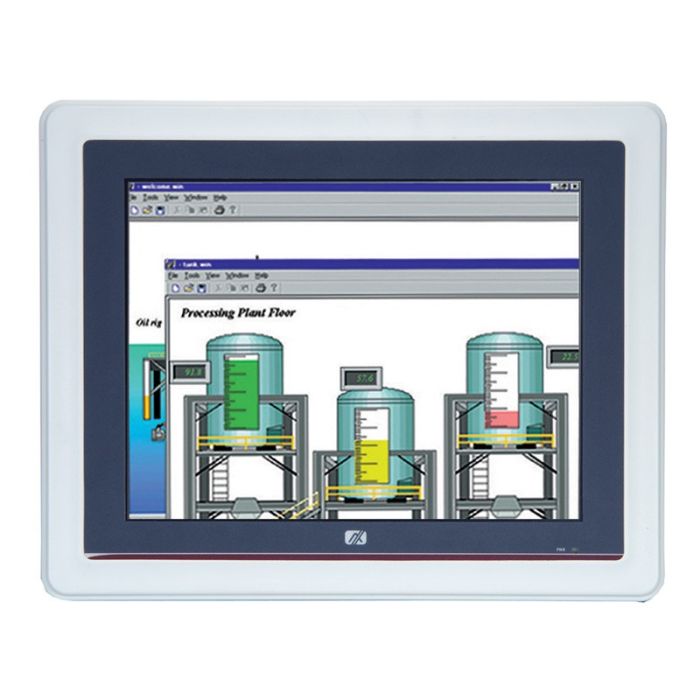

GOT5120T-845 12.1" XGA Fanless Panel PC
12.1" XGA/SVGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor N3060
12.1" XGA/SVGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor N3060
· 12.1" XGA/SVGA TFT LCD display with LED backlight
· Fanless design with Intel® Celeron® processor N3060 (up to 2.48 GHz)
· 2.5" SATA HDD and mSATA with easy access design
· 2 GbE LAN, 4 USB, 2 COM and optional speakers
· IP65 front bezel design
· Supports optional panel mount/wall mount/VESA arm/desktop stand
· External AT/ATX mode selectable switch
· Supports RFID (optional)
· Adjust RS-232/422/485 setting via BIOS
More Information
| Brand |
Axiomtek |
| Specifications |
| LCD Panel |
- 12.1" XGA/SVGA TFT LCD withg LED backlight
- 500 nits (XGA)
450 nits (SVGA)
- 1024 x 768 (XGA)
800 x 600 (SVGA)
|
| CPU |
- Intel® Celeron® processor N3060 up to 2.48 GHz
|
| Chipset |
|
| System Memory |
- 1 x 204-pin SO-DIMM DDR3L-1600, up to 8 GB
|
| BIOS |
|
| COM |
- 1 x RS-232
- 1 x RS-232/422/485 (default RS-232)
|
| USB |
|
| Ethernet |
- 2 x 10/100/1000 Mbps (Intel® i211-AT)
|
| Display |
|
| Audio |
|
| Storage |
- 1 x 2.5" SATA HDD (9.5 mm)
- 1 x mSATA
|
| Expansion |
- 1 x Full-size PCI Express Mini Card slot with mSATA
- 1 x Full-size PCI Express Mini Card slot with SIM
|
| Others |
- 1 x 8-bit DIO port (programmable, DB9)
- 1 x switch for power on/off
- 1 x AT/ATX mode selection switch
|
| Touchscreen |
|
| Front Bezel |
- IP65, NEMA 4 rugged protection, plastic front bezel
|
| Power Supply |
- DC version: 24 VDC over current protection fuse (optional)
- AC version: 100 - 240VAC-DC, 60W power adapter
|
| Power Comsumption |
|
| Watchdog Timer |
|
| Operating Temperature |
- 0°C to +50°C (+32°F to +122°F)
|
| Relative Humidity |
- 20% - 90% @ +40°C; non-condensing
|
| Vibration |
- 2G, 10 - 500Hz, random for SSD
|
Dimensions
(W x D x H) |
- 327.5 x 52.5 x 261.8 mm (12.9" x 2.07" x 10.3")
|
| Weight (net/gross) |
- 2.48 kg (5.46 lb)/3.84 kg (8.46 lb)
|
| Certifications |
|
| EOS |
- Windows® 7, WES 7, Windows® 8.1, WE8S, Windows® 10
|
| Mounting |
- Panel mount
- Wall mount
- VESA arm
- Desktop stand
|
|
| Description |
12.1" XGA/SVGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor N3060
· 12.1" XGA/SVGA TFT LCD display with LED backlight
· Fanless design with Intel® Celeron® processor N3060 (up to 2.48 GHz)
· 2.5" SATA HDD and mSATA with easy access design
· 2 GbE LAN, 4 USB, 2 COM and optional speakers
· IP65 front bezel design
· Supports optional panel mount/wall mount/VESA arm/desktop stand
· External AT/ATX mode selectable switch
· Supports RFID (optional)
· Adjust RS-232/422/485 setting via BIOS
|
