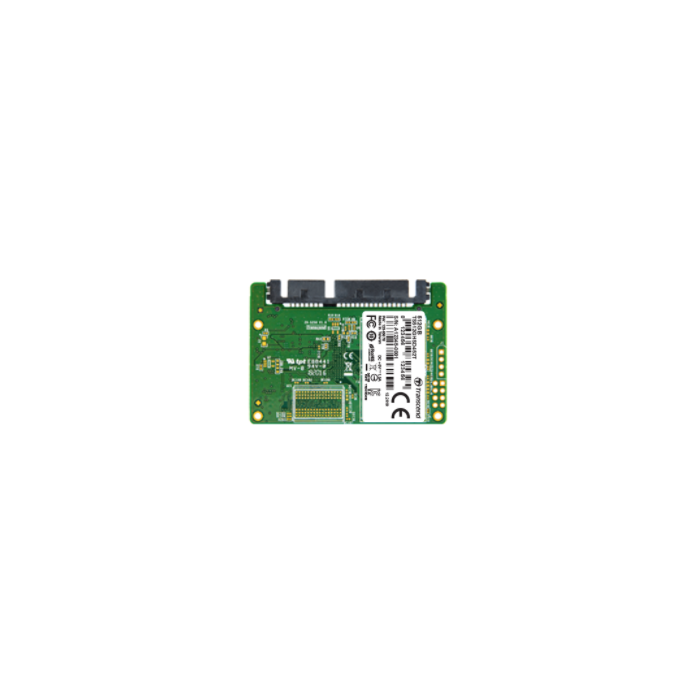

HSD452T & HSD452T-I SATA III, Half-Slim SSD

A$0.00

In stock

The HSD452T Half-Slim SSDs deliver outstanding transfer speeds in a compact form factor to ensure the utmost quality and performance, best suited to read-heavy applications and space-limited mobile devices such as industrial control systems, medical equipment, mobile devices, and POS terminals.

Details

DRAM Cache embedded

Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed

Wide-temperature model available: promised operational reliability in a wide temperature range (from -40℃ to 85℃)

Advanced Global Wear-Leveling and Block management for reliability

Advanced Garbage Collection

Security Command

Built-in LDPC ECC (Error Correction Code) functionality

Enhanced S.M.A.R.T. function for durability

Compliant with RoHS 2.0 standards

Power-saving DevSleep (Device Sleep) mode (optional)

More Information

Specifications

Appearance
Dimensions	54.0 mm x 39.8 mm x 4 mm (2.13" x 1.57" x 0.15")
Weight	9 g (0.32 oz)
mSATA Type	MO-297
Pin Count	7+15 pin
Form Factor	Half-slim
Interface
Bus Interface	SATA III 6Gb/s
Storage
Flash Type	3D TLC NAND flash
Capacity	64 GB/ 128 GB/ 256 GB/ 512 GB
Operating Environment
Operating Voltage	5V±5%
Operating Temperature	Standard 0°C (32°F) ~ 70°C (158°F) Wide Temp. -40°C (-40°F) ~ 85°C (185°F)
Storage Temperature	-40°C (-40°F) ~ 85°C (185°F)
Humidity	5% ~ 95%
Shock	1500 G, 0.5 ms, 3 axis
Vibration (Operating)	20 G (peak-to-peak), 7 Hz ~ 2000 Hz (frequency)
Power
Power Consumption (Operation)	2.7 watt(s)
Power Consumption (Sleep)	0.6 watt(s)
Performance
Sequential Read/Write (CrystalDiskMark, max.)	Read: 560 MB/s Write: 520 MB/s
4K Random Read/Write (IOmeter, max.)	Read: 90,000 IOPS Write: 85,000 IOPS
Mean Time Between Failures (MTBF)	3,000,000 hour(s)
Terabytes Written (Max.)	880 TBW
Drive Writes Per Day (DWPD)	1.61 (3 yrs)
Note	Speed may vary due to host hardware, software, usage, and storage capacity. The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
Warranty
Certificate	CE/ FCC/ BSMI
Warranty	Three-year Limited Warranty
Warranty Policy	Please check https://au.transcend-info.com/Warranty for more information about the Transcend Warranty Policy. Warranty does not apply when SSD Scope's wear-out indicator displays 0% within the warranty coverage. Due to the complexity and variety of industrial applications, Transcend cannot guarantee 100% compatibility with all platforms and under all scenarios. For special applications and environments, it is strongly suggested that you contact Transcend beforehand for clarification. SSD Scope Pro software is required by request. Please contact us for more information.
