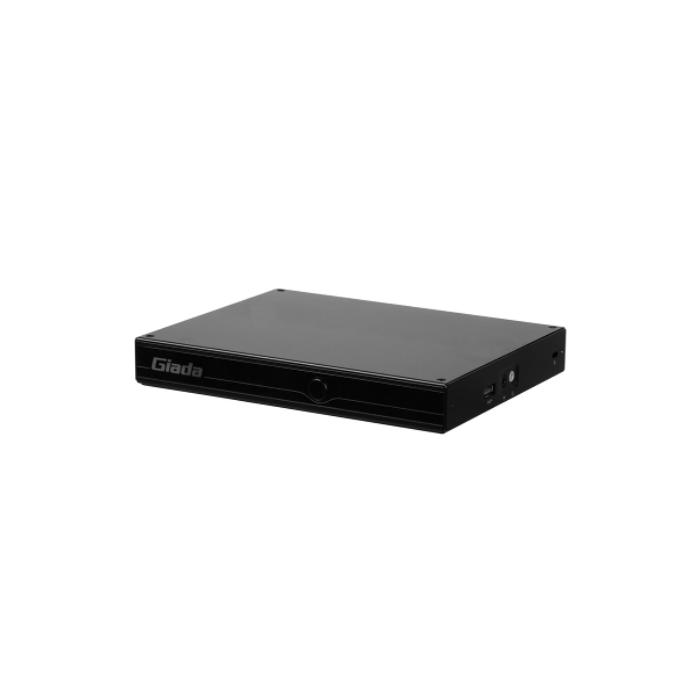

i39B Entry Celeron J1900 CPU Dual Display Media Player
Entry level Digital Signage Player J1900 Quad Core Celeron
The Giada i39B features an Intel J190 2.41GHz Quad core CPU capable of 8GB RAM and a 2.5" SATA SSD/HDD with 2 x mPCIe for mSATA or PCIe. Housed in a 190x149x25.55mm case it is ideal for office or digital signage applications.
Intel Celeron J1900
1 x SODIMM DDR3L (up to 8GB)
1 x HDMI, 1 x VGA
1 x 2.5" drive, 1 x mSATA
1 x USB3.0, 4 x USB2.0, 1 x RS232
1 x RJ45
1 x mPCIe for Wifi/BT
More Information
Specifications
i39B i39B-BJ000-V2
Processor CPU
Intel® Celeron J1900
Frequency
2.00GHz (Up to 2.42GHz )
BIOS
AMI Source Code
Chipset
SOC
Memory Type
DDR3L-1333MHz
Socket
1 x SO-DIMM
Max Size
8GB
Graphics GPU
Intel® HD Graphics
Graphic Engine
DirectX 11.1, OpenGL 3.0, OpenCL 1.2
HDMI
1 x HDMI (Max.1920 x 1080@60Hz)
VGA
1 x VGA (Max.2560 x 1600@60Hz)
Network Controller
Realtek RTL8111H Gigabit Ethernet
Interface
1 x RJ45
I/O USB
1 x USB 3.0, 4 x USB 2.0
Display Interface
1 x HDMI, 1 x VGA
Serial Port
1 x RS232
Audio
1 x MIC-IN, 1 x AUDIO-OUT&SPDIF
Mini-PCIe1#
1 x Full-size Mini-PCIe for mSATA
Mini-PCIe2#
1 x Full-size Mini-PCIe for WiFi/BT
Storage SATA
1 x 2.5" SATA
mSATA
1 x Full-size mSATA
JAHC Tech WatchDog Timer
0~255 Second Time Out Support
Auto Power On
Power Activated Automatically Start
RTC
Set Up Independently Every day, A Week as a Cycle
Remote Control
By IR Controller for Power On
Operation System Windows
Windows 7/8.1/10(64-bit)
Linux
Supported
Power Power Type
DC-IN
Input Voltage
19V/2.1A
Mechanical Dimensions (W × D × H)
189.6mm x 148.3mm x 26mm(7.46"x5.84"x1.02")
Fanless
NO
Construction
Metal
Mounting(Optional)
Desk/Wall Mounting and VESA Mounting Kit (JZ183)
Color
Black
Environment Operating Temperature
0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow
Relative Humidity
95%@40℃ (non-condensing)
Certification Certification
CE, FCC Class B, CCC
Description
The Giada i39B features an Intel J190 2.41GHz Quad core CPU capable of 8GB RAM and a 2.5" SATA SSD/HDD with 2 x mPCIe for mSATA or PCIe. Housed in a 190x149x25.55mm case it is ideal for office or digital signage applications.
Intel Celeron J1900
1 x SODIMM DDR3L (up to 8GB)
1 x HDMI, 1 x VGA
1 x 2.5" drive, 1 x mSATA
1 x USB3.0, 4 x USB2.0, 1 x RS232
1 x RJ45
1 x mPCIe for Wifi/BT
