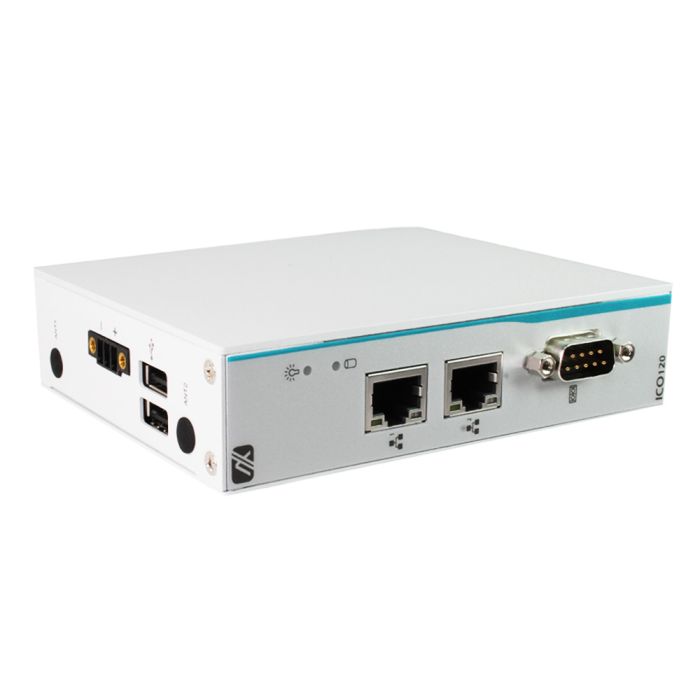

ICO120-83D DIN-Rail Fanless Embedded System

Be the first to review this product

A$0.00

In stock

SKU

ICO120-83D-N3350-DC

Robust DIN-rail Fanless Embedded System with Intel Celeron Processor N3350, COM or CAN, 2 LAN, 2 USB and DIO

Key Features:

Extreme cost-effective with fanless and cableless design
Intel Celeron processor N3350, reliable F1 stepping version CPU
1 COM or CAN, 2 USB, 2 GbE LAN
8-bit programmable DIO for IoT gateway applications
Wide operating temperature range from -20°C to +70°C
12 to 24 VDC wide range power input
Supports SocketCAN
AMS. AXView intelligent remote monitoring software for IIoT

Details

The Axiomtek ICO120-83D is a DIN-rail mount fanless embedded system designed for IoT gateway solutions. The super compact embedded PC is built around the high performing but low-powered Intel Celeron N3350 processor ensuring long lifespan support.

Key Features:

Extreme cost-effective with fanless and cableless design
Intel Celeron processor N3350, reliable F1 stepping version CPU
1 COM or CAN, 2 USB, 2 GbE LAN
8-bit programmable DIO for IoT gateway applications
Wide operating temperature range from -20°C to +70°C
12 to 24 VDC wide range power input
Supports SocketCAN
AMS. AXView intelligent remote monitoring software for IIoT

More Information

brand

Axiomtek

Specifications

CPU	Intel® Celeron® N3350 2C @1.1 GHz, TDP: 6W
Chipset	SoC integrated
System Memory	1 x SO-DIMM DDR3L-1866, up to 8GB
COM	1 x DB9 RS-232/422/485
USB	2 x USB 2.0
Ethernet	2 x RJ-45 isolated 10/100/1000 Mbps (Intel® i211-AT) Isolation voltage: 1.5 kV
PoE	N/A
CANbus	1 x DB9 CANBus 2.0 A/B, supports SocketCAN
Digital I/O	1 x DB9 8-bit programmable DIO
Analog Input	N/A
Display	1 x VGA
Expansion	1 x Full-size Rev. 1.2 PCI Express Mini Card slot: USB/PCIe with SIM socket 1 x Half-size Rev. 1.2 PCI Express Mini Card slot: mSATA/USB/PCIe
Storage	Half-size mSATA shared with half-size PCI Express Mini Card slot (optional eMMC flash onboard)
Others	2 x Antenna opening
Power Supply	1 x Terminal block, 12 to 24 VDC 12 to 24 VDC, 1.39-0.72A
Watchdog Timer	255 levels, 1 to 255 sec.
Construction	Extruded aluminum and heavy-duty steel, IP30
Operating Temperature	-20°C to +70°C (-4°F to +158°F) with W.T. peripheral
Relative Humidity	0% to 95%
Vibration	2 Gms with storage (5 to 500Hz, X/Y/Z direction; random, operating)
Dimensions (W x D x H)	31 x 100 x 125 mm (1.22" x 3.93" x 4.92")
Weight (net/gross)	0.3 kg (0.67 lb)/0.45 kg (0.99 lb)
Certifications	CE (Class A) FCC (Class A)
Software Support	AMS.AXView
EOS Support	Windows® 10 IoT, Linux
Mounting	DIN-rail Wall Mounting

Description

Key Features:

Extreme cost-effective with fanless and cableless design
Intel Celeron processor N3350, reliable F1 stepping version CPU
1 COM or CAN, 2 USB, 2 GbE LAN
8-bit programmable DIO for IoT gateway applications
Wide operating temperature range from -20°C to +70°C
12 to 24 VDC wide range power input
Supports SocketCAN
AMS. AXView intelligent remote monitoring software for IIoT
