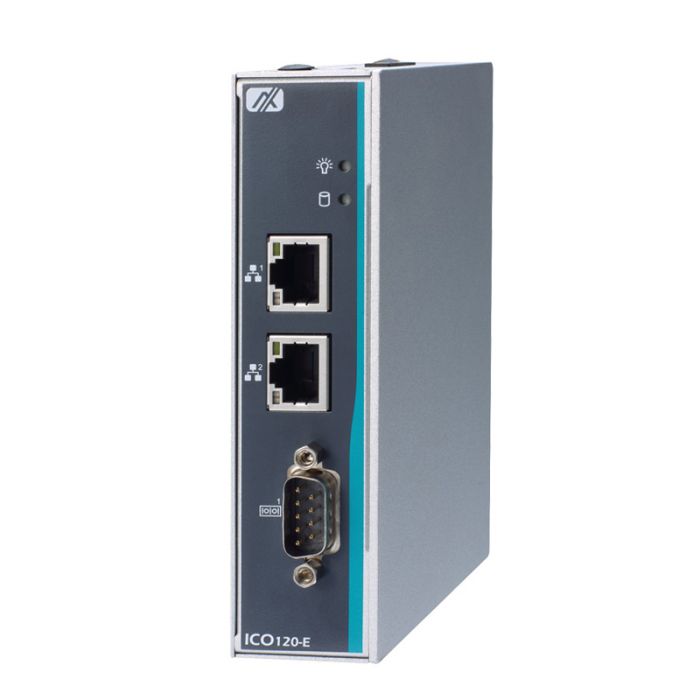

ICO120-E3350 DIN-rail Fanless Embedded System Celeron N3350
DIN-rail Fanless Embedded System with Intel Celeron Processor N3350, COM/CAN/DIO, 2 LAN, 2 USB, and HDMI
Key Features:
- Extreme cost-effective with fanless and cableless design
- Intel Celeron processor N3350, reliable F1 stepping version CPU
- COM/CAN/DIO, 2 USB, and 2 GbE LAN
- Wide operating temperature range from -40°C to +70°C
- 9 to 36 VDC wide range power input (typical: 12-24 VDC)
- OVP, UVP, OCP, RPP power protection design
- eAPI for intelligent remote monitoring software integration
The ICO120-E3350 from Axiomtek is intended to simplify device-to-cloud communication and enable data-driven condition-based maintenance management for the Internet of Things connectivity of industrial devices and next-generation intelligent infrastructure.
Optimized performance
The Intel Celeron processor N3350 powers the ICO120-E3350, an extremely small industrial IoT gateway (codename: Apollo Lake-M). The ICO120-E3350 has a fanless operation, an operating temperature range of -40°C to 70°C, and a 9V to 36V DC wide power input with overvoltage and reverse protection.
More Expansion Options
The IIoT gateway includes a full-size Rev. 1.2 PCI Express Mini Card slot with SIM socket for Wi-Fi, 3G/4G/LTE, and GPS connectivity, as well as a half-size Rev. 1.2 PCI Express Mini Card slot for wireless module and mSATA SSD.
Rich I/O Interfaces
This low-cost industrial gateway includes two DB9 ports with COM/CAN/DIO selections, one HDMI, two USB 2.0, two RJ-45, and two antenna openings.
Key Features:
- Extreme cost-effective with fanless and cableless design
- Intel Celeron processor N3350, reliable F1 stepping version CPU
- COM/CAN/DIO, 2 USB, and 2 GbE LAN
- Wide operating temperature range from -40°C to +70°C
- 9 to 36 VDC wide range power input (typical: 12-24 VDC)
- OVP, UVP, OCP, RPP power protection design
- eAPI for intelligent remote monitoring software integration
| brand | Axiomtek | ||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
| Description |
The ICO120-E3350 from Axiomtek is intended to simplify device-to-cloud communication and enable data-driven condition-based maintenance management for the Internet of Things connectivity of industrial devices and next-generation intelligent infrastructure. Optimized performance The Intel Celeron processor N3350 powers the ICO120-E3350, an extremely small industrial IoT gateway (codename: Apollo Lake-M). The ICO120-E3350 has a fanless operation, an operating temperature range of -40°C to 70°C, and a 9V to 36V DC wide power input with overvoltage and reverse protection. More Expansion Options The IIoT gateway includes a full-size Rev. 1.2 PCI Express Mini Card slot with SIM socket for Wi-Fi, 3G/4G/LTE, and GPS connectivity, as well as a half-size Rev. 1.2 PCI Express Mini Card slot for wireless module and mSATA SSD. Rich I/O Interfaces This low-cost industrial gateway includes two DB9 ports with COM/CAN/DIO selections, one HDMI, two USB 2.0, two RJ-45, and two antenna openings. Key Features:
|
