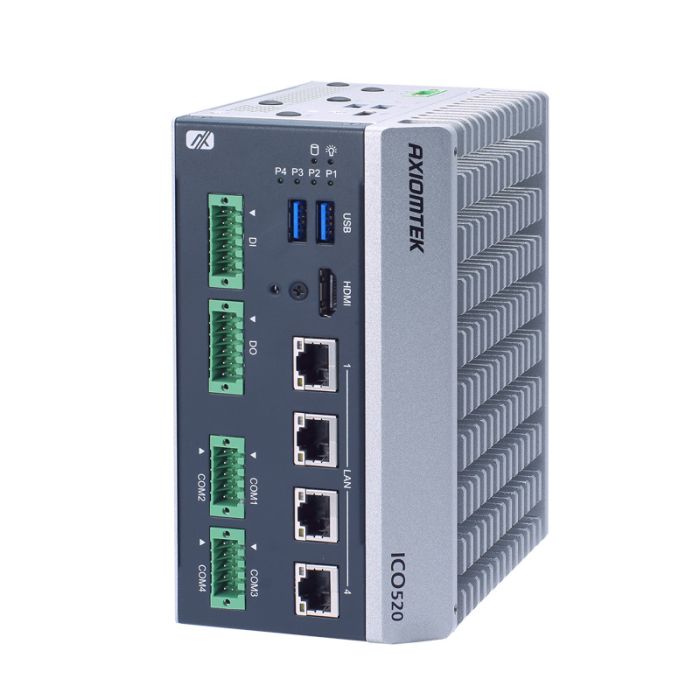

ICO520 DIN-Rail Fanless Embedded Computer with 12th Gen
Axiomtek ICO520 DIN-Rail Fanless Embedded-System 12th-Gen Intel®-Core™ 4x2.5GbE, 4xIsolated-COM, Isolated DIO (8-in/8-out)
Key Features:
- High performance with fanless and DIN-rail design
- 12th Gen Intel® Core™ i7/i5/i3 or Celeron® processor (Alder Lake-P)
- 4 isolated COM, isolated DIO (8-in/8-out), 4 2.5 GbE LAN
- Wide operating temperature range from -40°C to +70°C
- 9 to 36 VDC, typical 12-24V power input with OVP, UVP, OCP, RPP
- Supports TPM 2.0
- Supports cold boot at -40°C
The ICO520 is a versatile and high-performance DIN-Rail Fanless Embedded System designed for industrial applications. Powered by the 12th generation Intel® Core™ i7/i5/i3 or Celeron® processors, this system delivers excellent computing power and efficiency. With its fanless design, the ICO520 ensures reliable operation even in harsh environments where dust, debris, or temperature variations may be present.
One of the standout features of the ICO520 is its connectivity options. It is equipped with four 2.5GbE LAN ports, enabling high-speed and stable network connections. This makes it suitable for applications that require extensive data transfer or network-intensive tasks. Additionally, the system offers two HDMI ports for dual-display capabilities, allowing users to connect multiple monitors or displays for enhanced productivity.
Furthermore, the ICO520 provides ample connectivity with four USB ports for seamless peripheral device integration. It also boasts four isolated COM ports, which are essential for communication in industrial environments, ensuring reliable and secure serial data transmission. Additionally, the system features isolated DIO (Digital Input/Output) with eight inputs and eight outputs, enabling flexible and customizable control and monitoring capabilities.
Key Features:
- High performance with fanless and DIN-rail design
- 12th Gen Intel® Core™ i7/i5/i3 or Celeron® processor (Alder Lake-P)
- 4 isolated COM, isolated DIO (8-in/8-out), 4 2.5 GbE LAN
- Wide operating temperature range from -40°C to +70°C
- 9 to 36 VDC, typical 12-24V power input with OVP, UVP, OCP, RPP
- Supports TPM 2.0
- Supports cold boot at -40°C
Ordering Information/Order Codes
- ICO520-ALD7-A
DIN-rail fanless embedded system with Intel® Core™ i7-1265UE processor, 4 USB 3.1, four 2.5GbE LAN, 4 isolated COM, isolated DIO (8-in/8-out), and 2 HDMI - ICO520-ALD7-AS
DIN-rail fanless embedded system with Intel® Core™ i7-1265UE processor, 4 USB 3.1, four 2.5GbE LAN, and 2 HDMI - ICO520-ALD5-A
DIN-rail fanless embedded system with Intel® Core™ i5-1245UE processor, 4 USB 3.1, four 2.5GbE LAN, 4 isolated COM, isolated DIO (8-in/8-out), and 2 HDMI - ICO520-ALD5-AS
DIN-rail fanless embedded system with Intel® Core™ i5-1245UE processor, 4 USB 3.1, four 2.5GbE LAN, and 2 HDMI - ICO520-ALD3-A
DIN-rail fanless embedded system with Intel® Core™ i3-1215UE processor, 4 USB 3.1, four 2.5GbE LAN, 4 isolated COM, isolated DIO (8-in/8-out), and 2 HDMI - ICO520-ALD3-AS
DIN-rail fanless embedded system with Intel® Core™ i3-1215UE processor, 4 USB 3.1, four 2.5GbE LAN, and 2 HDMI - ICO520-ALDC-A
DIN-rail fanless embedded system with Intel® Celeron® 7305E processor, 4 USB 3.1, four 2.5GbE LAN, 4 isolated COM, isolated DIO (8-in/8-out), and 2 HDMI - ICO520-ALDC-AS
DIN-rail fanless embedded system with Intel® Celeron® 7305E processor, 4 USB 3.1, four 2.5GbE LAN, and 2 HDMI
| brand | Axiomtek | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Description | The ICO520 is a versatile and high-performance DIN-Rail Fanless Embedded System designed for industrial applications. Powered by the 12th generation Intel® Core™ i7/i5/i3 or Celeron® processors, this system delivers excellent computing power and efficiency. With its fanless design, the ICO520 ensures reliable operation even in harsh environments where dust, debris, or temperature variations may be present. One of the standout features of the ICO520 is its connectivity options. It is equipped with four 2.5GbE LAN ports, enabling high-speed and stable network connections. This makes it suitable for applications that require extensive data transfer or network-intensive tasks. Additionally, the system offers two HDMI ports for dual-display capabilities, allowing users to connect multiple monitors or displays for enhanced productivity. Furthermore, the ICO520 provides ample connectivity with four USB ports for seamless peripheral device integration. It also boasts four isolated COM ports, which are essential for communication in industrial environments, ensuring reliable and secure serial data transmission. Additionally, the system features isolated DIO (Digital Input/Output) with eight inputs and eight outputs, enabling flexible and customizable control and monitoring capabilities. Key Features:
Ordering Information/Order Codes
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
