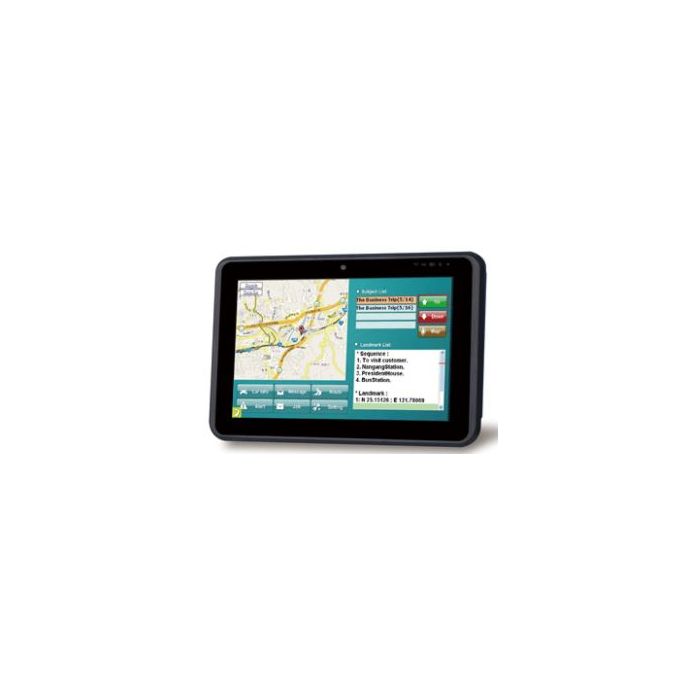

IEI IKARPC-07A

10.1" WXGA PCAP Touch Display, Intel¨ Atomª E3826, Ignition Smarts, GPS/LTE/Wi-Fi, OBD-II/J1939, E-mark

The iKarPC vehicle PC is a telematics all in one computer designed specifically for the transportation sector. The IP64 rated unit is ultra compact with excellent vibration resistance. The fanless design utilises the low power Baytrail Intel¨ Atomª processor E3826 CPU. This unit features an integral 8" sunlight readable LCD with touchscreen.

Other functionality includes Wake-on-SMS/RTC, integral GPS and smart power management with 9-36v input, low voltage protection and ignition delay. Optional features on request are LTE / Wi-Fi, Advanced GPS (dead reckoning) and integral webcam. All units carry CE, FCC and E-mark.

The device can be used for a range of applications such as vehicle GPS tracking, automatic vehicle locator (AVL), data logging, computer aided dispatch and navigation

• 10.1" WXGA TFT LCD with LED backlight
• PCAP Touch
• Intel¨ ATOMª E3826 CPU
• Compact and Fanless Design
• Ignition smarts
• GPS
• LTE/Wifi/BT
• OBD-II/J1939

• 2GB On-board DDR2 memory
• SD card slot
• 2 mega pixel Integral Webcam
• 1 x 2.5" Tray
• 1 x Built-in Speaker (3W)
• 1 x Line-in / out audio
• 1 x USB2.0, 1 x USB3.0
• 1 x SIM slot
• 1 x DB9 OB-II
• 1 x RS-232/485
• 1 x Wireless LAN 802.11 b/g/n
• 1 x WWAN module
• 1 x Bluetooth module
• Dims - 277 x 186 x27mm
• Compliant with IP54 (front panel)
• Operating temp with air: -20°C to 60°C
• CE/FCC/e-mark

• Computer Aided Despatch
• Navigation & AVL
• Vehicle tracking
• Fleet Management
