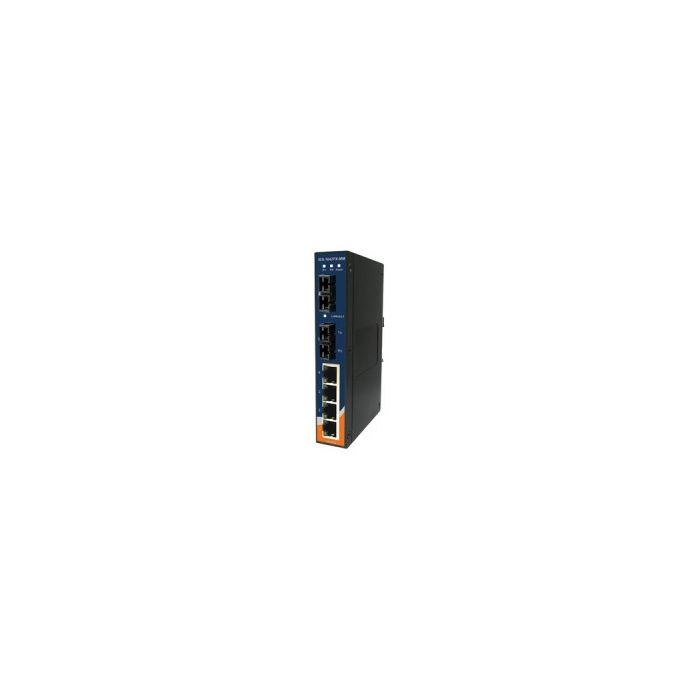

IES-1042FX Series - 6 port unmanaged switch

A$0.00

In stock

SKU

IES-1042FX-xx

4 x 10/100Base-T(X) and 2 x 100Base-FX ports, redundant power inputs, configurable relay output alarm, rigid IP-30 housing, wide operating temperature range from -40 to 70°C

Details

IES-1041FX series provide 4x10/100Base-T(X) and 1x100Base-FX single/multi-mode fiber ports
IES-1042FX series provide 4x10/100Base-T(X) and 2x100Base-FX single/multi-mode fiber ports
Support auto-negotiation and auto-MDI/MDI-X
Support store-and-forward transmission
Support flow control
Support surge protection technology
Warning system by relay output
Rigid IP-30 housing design
DIN-Rail and wall mounting enabled

More Information

Specifications

Physical Ports
10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX	4
Fiber Ports Number	2	2
Fiber Ports Standard	100Base-FX	100Base-FX
Fiber Mode	Multi-mode	Single-mode
Fiber Diameter (μm)	62.5/125 μm 50/125 μm	9/125 μm
Fiber Optical Connector	SC	SC
Typical Distance (km)	2 km	30 km
Wavelength (nm)	1310 nm	1310 nm
Max. Output Optical Power (dBm)	-14 dBm	-8 dBm
Min. Output Optical Power (dBm)	-23.5 dBm	-15 dBm
Max. Input Optical Power (Saturation)	0 dBm	0 dBm
Min. Input Optical Power (Sensitivity)	-31 dBm	-34 dBm
Link Budget (dB)	7.5 dB	19 dB
Technology
Ethernet Standards	IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3x for Flow control
MAC Table	2048 MAC addresses
Processing	Store-and-Forward
LED Indicators
Power Indicator	Green : Power LED x 2
Fault Indicator	Amber : Indicates PWR1 or PWR2 failure occurred
10/100Base-T(X) RJ45 Port Indicator	Green for port Link/Act. Amber for Duplex/Collision
Fiber Port LED	Green for port Link/Act.
Fault Contact
Relay	Relay output to carry capacity of 1A at 24VDC
Power
Redundant Input Power	Dual DC inputs: 12~48VDC on 6-pin terminal block
Power Consumption (Typ.)	7 Watts
Overload Current Protection	Present
Reverse Polarity Protection	Present
Physical Characteristics
Enclosure	IP-30
Dimensions (W x D x H)	26.1(W) x 94.9(D) x 144.3(H) mm (1.03 x 3.74 x 5.68 inch.)
Weight (g)	382 g
Environmental
Storage Temperature	-40 to 85°C (-40 to 185°F)
Operating Temperature	-40 to 75°C (-40 to 167°F)
Operating Humidity	5% to 95% Non-condensing
Regulatory Approvals
EMI	FCC Part 15, CISPR (EN55022) class A
EMS	IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11
Shock	IEC60068-2-27
Free Fall	IEC60068-2-32
Vibration	IEC60068-2-6
Safety	EN60950-1
Warranty	5 years

Description

IES-1041FX series provide 4x10/100Base-T(X) and 1x100Base-FX single/multi-mode fiber ports
IES-1042FX series provide 4x10/100Base-T(X) and 2x100Base-FX single/multi-mode fiber ports
Support auto-negotiation and auto-MDI/MDI-X
Support store-and-forward transmission
Support flow control
Support surge protection technology
Warning system by relay output
Rigid IP-30 housing design
DIN-Rail and wall mounting enabled
