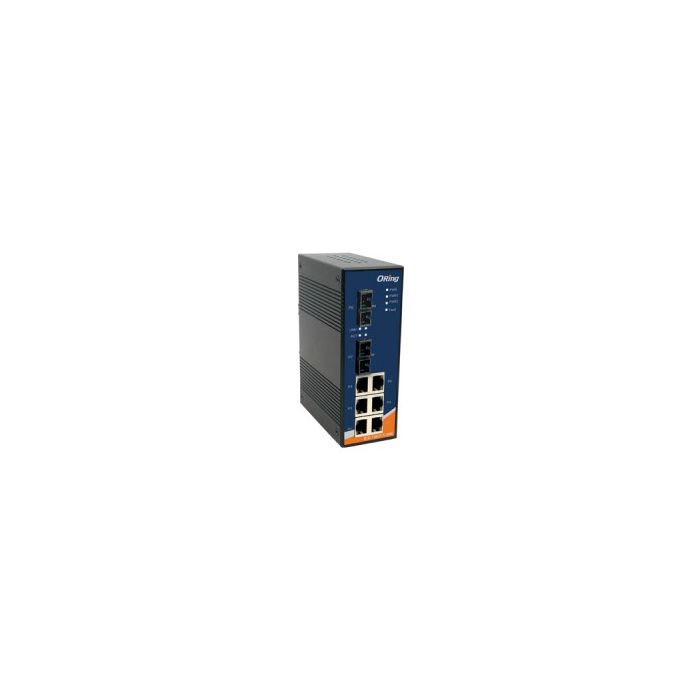

IES-1062FX Series - 8 port unmanaged switch

A$0.00

In stock

SKU

IES-1062FX-xx

6x10/100Base-T(X) and 2x100Base-FX, 10/100/1000Base-T(X), 1000Base-SX or 1000BaseLX ports. IES-1062 series support redundant power input, relay output alarm, surge protection, wide operating temperature range from -40° to 70°C.

Details

IES-1080 provide 8x10/100Base-T(X) ports
IES-1062GT provide 6x10/100Base-T(X) and 2x10/100/1000Base-T(X) ports
IES-1062FX series provide 6x10/100Base-T(X) and 2x100Base-FX fiber ports
IES-1062GF series provide 6x10/100Base-T(X) and 2x1000Base-X fiber ports
Triple redundant DC power inputs of terminal block and power jack
Support auto-negotiation and auto-MDI/MDI-X
Support store and forw ard transmission
Support flow control
Warning system by relay output
Rigid IP-30 housing design
DIN-Rail and wall mounting enabled

More Information

Specifications

Physical Ports
10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX	6	6
Fiber Ports Number	2	2
Fiber Ports Standard	100Base-FX	100Base-FX
Fiber Mode	Multi-mode	Single-mode
Fiber Diameter (μm)	62.5/125 μm 50/125 μm	9/125 μm
Fiber Optical Connector	SC	SC
Fiber Ports Specifications Typical Distance (km)	2 km	30 km
Wavelength (nm)	1310 nm	1310 nm
Max. Output Optical Power (dBm)	-14 dBm	-8 dBm
Min. Output Optical Power (dBm)	-23.5 dBm	-15 dBm
Max. Input Optical Power(Saturation)	0 dBm	0 dBm
Min. Input Optical Power (Sensitivity)	-31 dBm	-34 dBm
Link Budget (dB)	7.5 dB	19 dB
Technology
Ethernet Standards	IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000Base-X IEEE 802.3x for Flow control
MAC Table	8192 MAC addresses
Processing	Store-and-Forward
LED Indicators
Power Indicator	Green : Power LED x 3
Fault Indicator	Amber : Indicates PWR1 or PWR2 failure occurred
10/100Base-FX RJ45 Port Indicator	Green for port Link/Act. Amber for Duplex/Collision
10/100/1000Base-T(X) / Fiber Port Indicator	Green for port Link/Act. Amber for Link
Fault contact
Relay	Relay output to carry capacity of 1A at 24VDC
Power
Redundant Input Power	Triple DC inputs. 12~48VDC on 7-pin terminal block, 12~45VDC on power jack
Power Consumption (Typ.)	8 watts	8 watts
Overload Current Protection	Present
Reverse Polarity Protection	Present on terminal block
Physical Characteristics
Enclosure	IP-30
Dimensions (W x D x H)	52(W) x 106.1(D) x 144.3(H) mm (2.05x4.18x5.68 inch.)
Weight (g)	680 g	680 g
Environmental
Storage Temperature	-40 to 85°C (-40 to 185°F)
Operating Temperature	-40 to 70°C (-40 to 158°F)
Operating Humidity	5% to 95% Non-condensing
Regulatory Approvals
EMI	FCC Part 15, CISPR (EN55022) class A,
EMS	IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11
Shock	IEC60068-2-27
Free Fall	IEC60068-2-32
Vibration	IEC60068-2-6
Safety	EN60950-1, UL508(E331061)
MTBF (Hours) (MIL-HDBK-217F2, GB, GC, 25°C )	354,989	354,989
Warranty	5 years

Description

IES-1080 provide 8x10/100Base-T(X) ports
IES-1062GT provide 6x10/100Base-T(X) and 2x10/100/1000Base-T(X) ports
IES-1062FX series provide 6x10/100Base-T(X) and 2x100Base-FX fiber ports
IES-1062GF series provide 6x10/100Base-T(X) and 2x1000Base-X fiber ports
Triple redundant DC power inputs of terminal block and power jack
Support auto-negotiation and auto-MDI/MDI-X
Support store and forw ard transmission
Support flow control
Warning system by relay output
Rigid IP-30 housing design
DIN-Rail and wall mounting enabled
