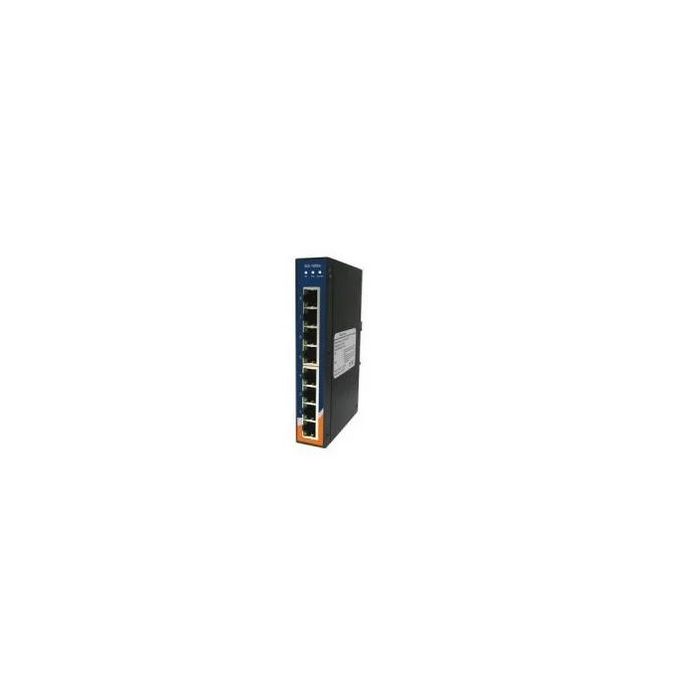

IES-1080A - 8 port umanaged switch

A$146.00

In stock

SKU

IES-1080A

8x10/100Base-T(X) ports. IES-1080 series support redundant power input, relay output alarm, surge protection, wide operating temperature range from -40° to 70°C.

Details

Support 8 ports 10/100Base-T(X)
Support auto-negotiation and auto-MDI/MID-X
Support Store and forward transmission
Support flow control
Provide Relay output
Compact size for easily installation
Rigid IP-30 housing design
DIN-rail and wall mounting enable

More Information

Specifications

Physical Ports
10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX	8
Technology
Ethernet Standards	IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3x for Flow control
MAC Table	1K
Packet buffer	448K bits
Processing	Store-and-Forward
Switch Properties	Switching latency: 7us Switching bandwidth: 1.6Gbps Throughput (packet per second): 1.19Mpps@64Bytes packet
LED Indicators
Power Indicator	Green : Power LED x 2
Fault Indicator	Amber : Indicates PWR1 or PWR2 failure
10/100Base-T(X) RJ45 Port Indicator	Upper LED for Link/Act indicator: Green for Link/Act Lower LED for duplex indicator, Amber for full duplex, off for half duplex
Fault Contact
Relay	Relay output to carry capacity of 1A at 24VDC
Power
Redundant Input Power	Dual 12~48VDC on 6-pin terminal block
Power Consumption (Typ.)	<3.7Watts, 0.23A-0.07A
Overload Current Protection	Present
Reverse Polarity Protection	Present
Physical Characteristics
Enclosure	IP-30
Dimensions (W x D x H)	26.1(W) x 94.9(D) x 144.3(H) mm (1.03 x 3.74 x 5.68 inch.)
Weight (g)	391 g
Hardware Version	V2.0
Environmental
Storage Temperature	-40 to 85°C (-40 to 185°F)
Operating Temperature	-40 to 75°C (-40 to 167°F)
Operating Humidity	5% to 95% Non-condensing
Regulatory Approvals
EMC	CE EMC (EN 55024, EN 55032), FCC Part 15 B
EMI	EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A
EMS	EN 55024 (IEC/EN 61000-4-2 (ESD: Contact 4KV, Air 8KV), IEC/EN 61000-4-3 (RS: 3V),IEC/EN 61000-4-4 (EFT Power 0.5KV, Signal 0.5KV), IEC/EN 61000-4-5 (Surge: Power 0.5KV, Signal 1KV), IEC/EN 61000-4-6 (CS: 3V), IEC/EN 61000-4-8(PFMF), IEC/EN 61000-4-11 (DIP))
Shock	IEC60068-2-27
Free Fall	IEC60068-2-31
Vibration	IEC60068-2-6
Safety	EN60950-1(LVD)
MTBF (Hours) (MIL-HDBK-217F2, GB, GC, 25°C )	2,439,118hrs
Warranty	5 years

Description

Support 8 ports 10/100Base-T(X)
Support auto-negotiation and auto-MDI/MID-X
Support Store and forward transmission
Support flow control
Provide Relay output
Compact size for easily installation
Rigid IP-30 housing design
DIN-rail and wall mounting enable
