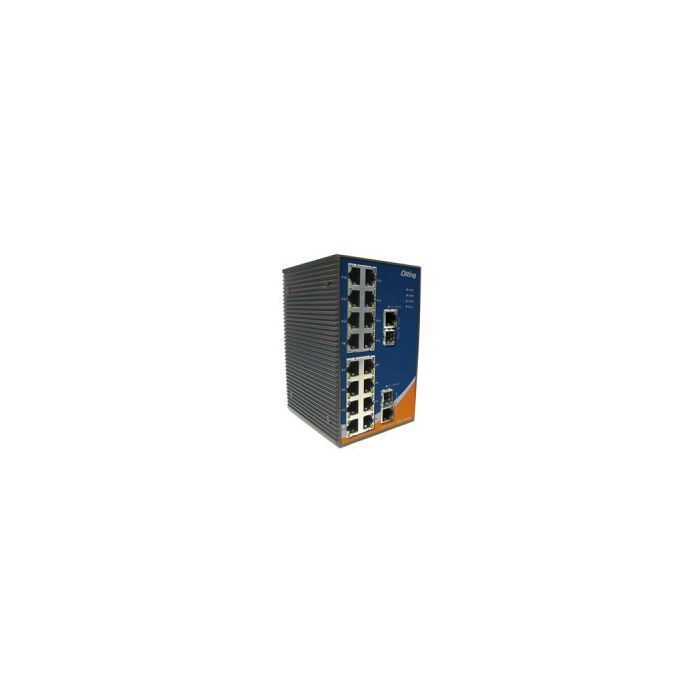

IES-1162GC - 18 port unmanaged switch

A$0.00

In stock

SKU

IES-1162GC

16x10/100Base-T(X) and 2xGigabit Combo port Ethernet Switch. IES-1162GC supports redundant power inputs, relay output alarm, surge protection and wide operating temperature, range from -40 to 70°C.

Details

Provides 16x10/100Base-T(X) and 2xGigabit Combo ports
RJ-45 ports support Auto MDI/MDI-X switching function
SFP supports 1000Base-X Mode
Provides Store-and-Forward switching architecture
Provides 7.2Gbps Back-plane (Switching Fabric)
Supports 1M bits packet buffer
Rigid IP-30 housing design
DIN-Rail and wall mounting enabled

More Information

Specifications

Physical Ports
10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX	16
Gigabit Combo Ports with 10/100/1000Base-T(X) and 1000Base-X SFP Port	2
Technology
Ethernet Standards	IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3z for 1000Base-X IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow control
MAC Table	8192 MAC addresses
Priority Queues	4
Processing	Store-and-Forward
Switch Properties	Switching latency : 9 μs Switching bandwidth : 7.2Gbps
LED Indicators
Power Indicator	Green : Power LED x 3
Fault Indicator	Amber : Indicates power failure occurred
10/100Base-T(X) RJ45 Port Indicator	Green for port Link/Act. Amber for Duplex/Collision
10/100/1000Base-T(X) RJ45 Port Indicator	Green for Link/Act. Amber for 100Mbps indicator
1000Base-X Fiber Port Indicator	Green for port Link/Act.
Power
Redundant Input Power	Dual DC inputs. 12~48VDC on 6-pin terminal block
Power Consumption (Typ.)	9 Watts
Overload Current Protection	Present
Reverse Polarity Protection	Present on terminal block
Physical Characteristics
Enclosure	IP-30
Dimensions (W x D x H)	96.4(W)x108.5(D)x154(H) mm (3.8 x 4.27 x 6.06 inch)
Weight (g)	1010 g
Environmental
Storage Temperature	-40 to 85°C (-40 to 185°F)
Operating Temperature	-40 to 70°C (-40 to 158°F)
Operating Humidity	5% to 95% Non-condensing
Regulatory Approvals
EMI	FCC Part 15, CISPR (EN55022) class A
EMS	IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11
Shock	IEC60068-2-27
Free Fall	IEC60068-2-32
Vibration	IEC60068-2-6
Safety	EN60950-1
Warranty	5 years

Description

Provides 16x10/100Base-T(X) and 2xGigabit Combo ports
RJ-45 ports support Auto MDI/MDI-X switching function
SFP supports 1000Base-X Mode
Provides Store-and-Forward switching architecture
Provides 7.2Gbps Back-plane (Switching Fabric)
Supports 1M bits packet buffer
Rigid IP-30 housing design
DIN-Rail and wall mounting enabled
