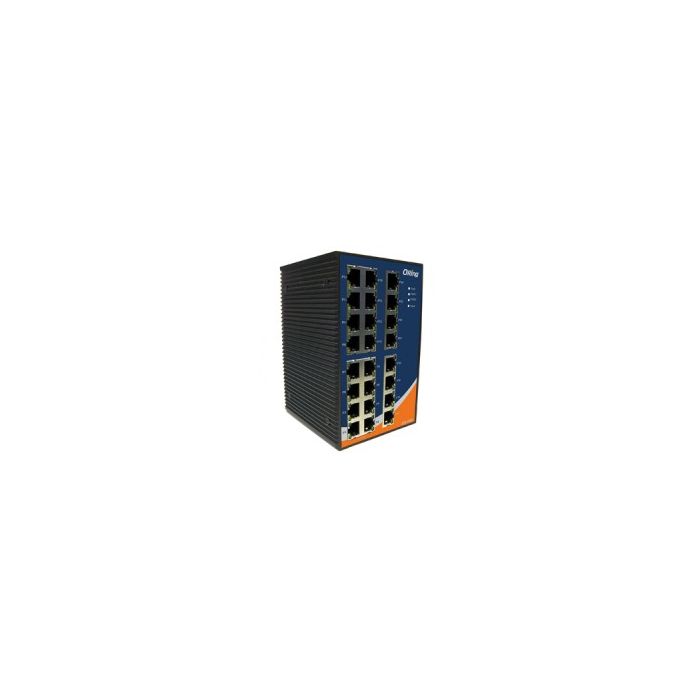

IES-1240 - 24 port unmanaged switch

A$0.00

In stock

SKU

IES-1240

24x10/100Base-T(X) port. IES-1240 support redundant power inputs, relay output alarm, surge protection and wide operating temperature range from -40°C to 70°C.

Details

RJ-45 ports support Auto MDI/MDI-X switching function
Provides Store-and-Forward switching architecture
Provides 4.8Gbps Back-plane (Switching Fabric)
Warning system by relay output
Rigid IP-30 housing design
DIN-Rail and walll mounting enabled

More Information

Specifications

Physical Ports
10/100 Base-T(X) Ports in RJ45 Auto MDI/MDIX	24
Technology
Ethernet Standards	IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3x for Flow control
MAC Table	8192 MAC addresses
Priority Queues	4
Processing	Store-and-Forward
Switch Properties	Switching latency: 9 μs Switching bandwidth: 4.8Gbps
LED Indicators
Power Indicator	Green : Power LED x 3
Fault Indicator	Amber : Indicates power failure occurred
10/100Base-T(X) RJ45 Port Indicator	Green for port Link/Act. Amber for Duplex/Collision
Fault Contact
Relay	Relay output to carry capacity of 1A at 24VDC
Power
Redundant Input Power	Dual DC inputs. 12 ~ 48VDC on 6-pin terminal block
Power Consumption (Typ.)	9.6 Watts
Overload Current Protection	Present
Reverse Polarity Protection	Present on terminal block
Physical Characteristics
Enclosure	IP-30
Dimensions (W x D x H)	96.4(W)x108.5(D)x154(H) mm (3.8 x 4.27 x 6.06 inch)
Weight (g)	1052 g
Environmental
Storage Temperature	-40 to 85°C (-40 to 185°F)
Operating Temperature	-40 to 70°C (-40 to 158°F)
Operating Humidity	5% to 95% Non-condensing
Regulatory Approvals
EMI	FCC Part 15, CISPR (EN55022) class A
EMS	IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11
Shock	IEC60068-2-27
Free Fall	IEC60068-2-32
Vibration	IEC60068-2-6
Safety	EN60950-1
Warranty	5 years

Description

RJ-45 ports support Auto MDI/MDI-X switching function
Provides Store-and-Forward switching architecture
Provides 4.8Gbps Back-plane (Switching Fabric)
Warning system by relay output
Rigid IP-30 housing design
DIN-Rail and walll mounting enabled
