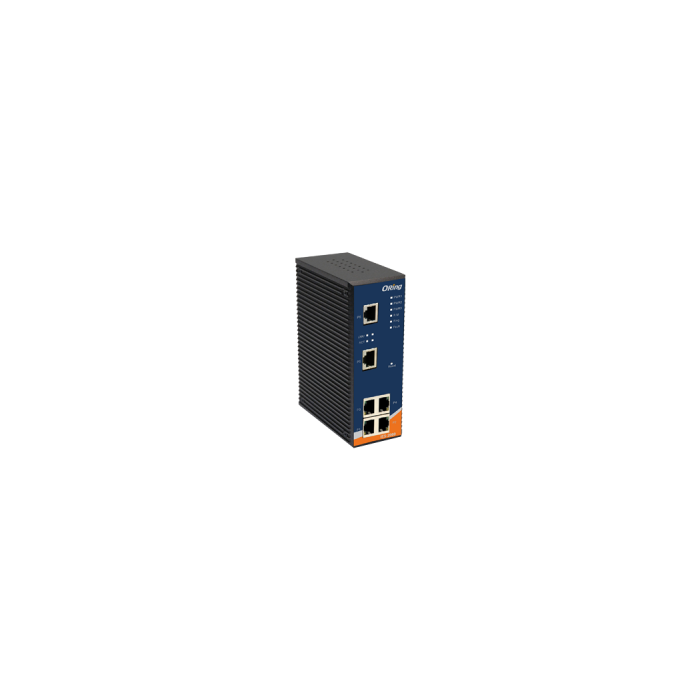

IES-2060 - 6 port lite managed switch

A$0.00

In stock

SKU

IES-2060

6x10/100Base-T(X) ports or 4x10/100Base-T(X) and 2x100BaseFX ports and wide operating temperature range from -40 to 70°C.

Details

Fastest Redundant Ethernet Ring: O-Ring (recovery time < 10ms over 250 units of connection)
Open-Ring supports other vendor’s ring technology in open architecture
O-Chain support the multiple redundant ring technology
Multiple Redundant Ethernet technology RSTP/STP, O-Ring supported to protect your industrial network
Provides Fast recovery technology for Ethernet multi-redundancy
SNMP v1/v2c/v3 ,http server, telnet server support
Supports LLDP protocol
Configurable by Web-based and Windows utility (Open-Vision)
Event notification through Syslog, Email, and SNMP trap
Two 100Base-FX fiber ports support for long distance connection
Rigid IP-30 housing design
DIN-Rail and wall mounting enabled

More Information

Specifications

Physical Ports
10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX	6
Technology
Ethernet Standards	IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3x for Flow control IEEE 802.1D for STP (Spanning Tree Protocol) IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol) IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)v1.41 / Dec, 2011
MAC Table	1024 MAC addresses
Priority Queues	4
Processing	Store-and-Forward
Switch Properties	Switching bandwidth : 1.2Gbps VLAN : Port Based
Security Feature	Enable/disable ports VLAN to segregate and secure network traffic
Software Features	STP/RSTP (IEEE 802.1D/w) Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units DHCP Client Port base VLAN LLDP (Link Layer Discovery Protocol) Port configuration, status, statistics, monitoring, security SNMP v1/v2c/v3 and private MIB support
Network Redundancy	O-Ring Open-Ring O-Chain Fast recovery STP RSTP
LED Indicators
Power Indicator	Green : Power LED x 3
R.M. Indicator	Green : Indicates that the system is operating in O-Ring Master mode
O-Ring Indicator	Green : Indicates that the system is operating in O-Ring mode
Fault Indicator	Amber : Indicates unexpected events occurred
10/100Base-T(X) RJ45 Port Indicator	Green for port Link/Act. Amber for Link
100 Base-FX Fiber Port Indicator	Green for port Link/Act. Amber for Link
Fault Contact
Relay	Relay output to carry capacity of 1A at 24VDC
Power
Redundant Input Power	Triple DC inputs: 12 ~ 48 VDC on 7-pin terminal block, 12 ~ 45 VDC on power jack
Power Consumption (Typ.)	5 Watts
Overload Current Protection	Present
Reverse Polarity Protection	Present on terminal block
Physical Characteristics
Enclosure	IP-30
Dimensions (W x D x H)	54.2(W) x 106.1(D) x 145.4(H) mm (2.13x4.18x5.72 inch.)
Weight (g)	657g
Environmental
Storage Temperature	-40 to 85°C (-40 to 185°F)
Operating Temperature	-40 to 70°C (-40 to 158°F)
Operating Humidity	5% to 95% Non-condensing
Regulatory Approvals
EMI	FCC Part 15, CISPR (EN55022) class A
EMS	IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11
Shock	IEC60068-2-27
Free Fall	IEC60068-2-32
Vibration	IEC60068-2-6
Safety	EN60950-1
MTBF (Hours) (MIL-HDBK-217F2, GB, GC, 25°C )	383,478
Warranty	5 years

Description

Fastest Redundant Ethernet Ring: O-Ring (recovery time < 10ms over 250 units of connection)
Open-Ring supports other vendor’s ring technology in open architecture
O-Chain support the multiple redundant ring technology
Multiple Redundant Ethernet technology RSTP/STP, O-Ring supported to protect your industrial network
Provides Fast recovery technology for Ethernet multi-redundancy
SNMP v1/v2c/v3 ,http server, telnet server support
Supports LLDP protocol
Configurable by Web-based and Windows utility (Open-Vision)
Event notification through Syslog, Email, and SNMP trap
Two 100Base-FX fiber ports support for long distance connection
Rigid IP-30 housing design
DIN-Rail and wall mounting enabled
