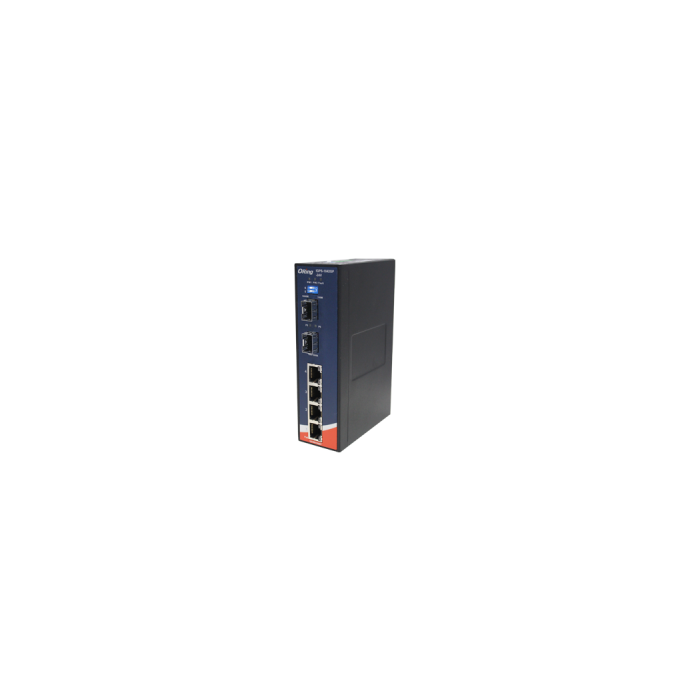

IGPS-1042GP-24V is an unmanaged PoE Ethernet switch with a P.S.E. function. IGPS-1042GP-24V supports Power over Ethernet, a system to transmit electrical power, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. IGPS-1042GP-24V has 4x10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports, and 2x100/1000Base-X SFP port. The SFP port optical network speed can be set by changing the settings of the DIP-Switch below. IGPS-1042GP-24V supports a wide range of 12~57VDC power inputs and generates 50VDC P.S.E. power output per port. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE setup. The wide operating temperature range from -40°C to 75°C can satisfy most of the operating environment. Therefore, the switch is one of the most reliable choices for PoE Ethernet applications.
IGPS-1042GP-24V provide 4x10/100/1000Base-T(X) PoE (P.S.E.) ports
Supports P.S.E. based on IEEE 802.3at standard up to 30 Watts per port
Advanced PoE power boost technology to support dual 24VDC power inputs
10/100/1000Base-T(X) Ports in RJ45 with P.S.E. Auto MDI/MDIX
4
100/1000Base-X SFP port
2
Technology
Ethernet Standards
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000Base-X IEEE 802.3x for Flow control IEEE 802.3at PoE specification (up to 30 Watts per port for P.S.E.)
MAC Table
1K MAC addressessses
Processing
Store-and-Forward
LED Indicators
Power indicator
Green : Power LED x 2
Fault Indicator
Amber : Indicates PWR1 or PWR2 failure occurred
10/100/1000Base-T(X) RJ45 port indicator and PoE indicator (P1 ~ P4)
Green for port Link/Act. Green for PoE power injected
100/1000Base-X SFP port indicator (P5 ~ P6)
Green for port Link/Act.
SFP Speed DIP-Switch
DIP-Switch 1/2
DIP-Switch 1 (ON) and DIP-Switch 2 (ON) : SFP speed setting to 100Mbps DIP-Switch 1 (OFF) and DIP-Switch 2 (OFF) : SFP speed setting to 1000Mbps
