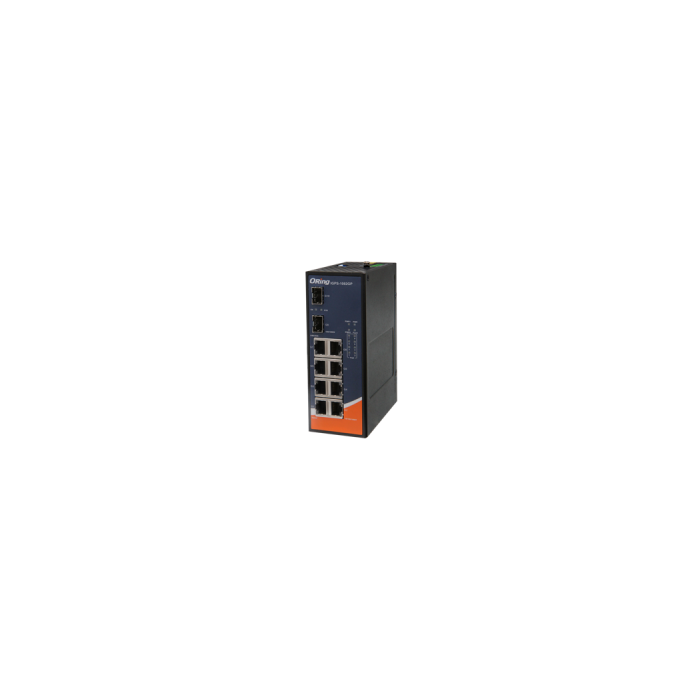

IGPS-1082GP - 10-port unmanaged PoE Ethernet switch

A$0.00

In stock

SKU

IGPS-1082GP-xx

Industrial 10-port unmanaged Gigabit PoE Ethernet switch with 8x10/100/1000Base-T(X) P.S.E. and 2x100/1000Base-X, SFP socket

Details

Support 8 ports IEEE 802.3at compliant PoE and total power budget is 120W with maximum 30W per port of 24V model
Total power budget is 180Watts with maximum 30Watts per port of IGPS-1082GP model
Support up to 9.6K Bytes Jumbo Frame
Support up to 4Mbit Packet buffer
Support auto-negotiation and auto-MDI/MDI-X
Support store and forward transmission
Support flow control
Provided relay output for power failed warning system
Provide DIP-switch to setting SFP speed
Rigid IP-30 housing design
DIN-Rail and wall mounting enabled

More Information

Specifications

Physical Ports
10/100/1000Base-T(X) with P.S.E. Ports in RJ45 Auto MDI/MDIX	8 (P.S.E. with IEEE 802.3at)
100/1000Base-X with SFP port	2
Technology
Ethernet Standards	IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000Base-X IEEE 802.3x for Flow control IEEE 802.3af/at PoE specification
MAC Table	8k
Processing	Store-and-Forward
Processing	Store-and-Forward
Switch Properties	Switching latency: less than 7us Switching bandwidth: 20Gbps
Jumbo frame	Up to 9.6K Bytes
Packet buffer	4Mbit
LED Indicators
Power Indicator (PWR)	Green : Power LED x 3
Fault Indicator	Amber : Indicate power failed even warning
10/100/1000Base-T(X) RJ45 PoE Port Indicator	Green for Link/Act indicator Green for PoE enable indicator.
100/1000Base-X SFP Port Indicator	Green for port Link/Act.
Fault contact
Relay	Relay output to carry capacity of 1A at 24VDC
DIP-Switch
DIP-Switch 1	Power-2 failed warning : (ON) enable, (OFF) disable
DIP-Switch 2	Power-1 failed warning : (ON) enable, (OFF) disable
DIP-Switch 3	DIP switch 3 and 4 (ON) : SFP speed setting to 100Mbps
DIP-Switch 4	DIP switch 3 and 4 (OFF) : SFP speed setting to 1000Mbps(default)
Power
Redundant Input power	Dual DC inputs. 50 ~ 57VDC on 6-pin terminal block.	Dual DC inputs. 12 ~ 57VDC on 6-pin terminal block.
Power consumption (Typ.)	11W	11W
PoE Power budget	180W	60W at 12~24VDC, 120W at 24~57VDC
Overload current protection	Present
Reverse polarity protection	Present
Physical Characteristic
Enclosure	IP-30
Dimension (W x D x H)	54.3(W) x 108.3(D) x 145.1(H) mm (2.13x4.26x5.71 inches.)
Weight (g)	889g	916g
Environmental
Storage Temperature	-40 to 85°C (-40 to 185°F)
Operating Temperature	-40 to 75°C (-40 to 167°F)
Operating Humidity	5% to 95% Non-condensing
Regulatory approvals
EMC	EN55032, EN55024(CE EMC), FCC Part 15B, EN61000-3-2, EN61000-3-3
EMI	CISPR 32, EN55032, FCC Part 15B class A
EMS	IEC 61000-4-2 (ESD), IEC 61000-4-3 (RS), IEC 61000-4-4 (EFT), IEC 61000-4-5 (Surge), IEC 61000-4-6 (CS), IEC 61000-4-8 (PFMF), IEC 61000-4-11 (DIP)
Shock	IEC60068-2-27
Free Fall	IEC60068-2-32
Vibration	IEC60068-2-6
Safety	EN60950-1
MTBF (Hours) (MIL-HDBK-217F2, GB, GC, 25°C )	TBD	TBD
Warranty	5 years

Description

Support 8 ports IEEE 802.3at compliant PoE and total power budget is 120W with maximum 30W per port of 24V model
Total power budget is 180Watts with maximum 30Watts per port of IGPS-1082GP model
Support up to 9.6K Bytes Jumbo Frame
Support up to 4Mbit Packet buffer
Support auto-negotiation and auto-MDI/MDI-X
Support store and forward transmission
Support flow control
Provided relay output for power failed warning system
Provide DIP-switch to setting SFP speed
Rigid IP-30 housing design
DIN-Rail and wall mounting enabled
