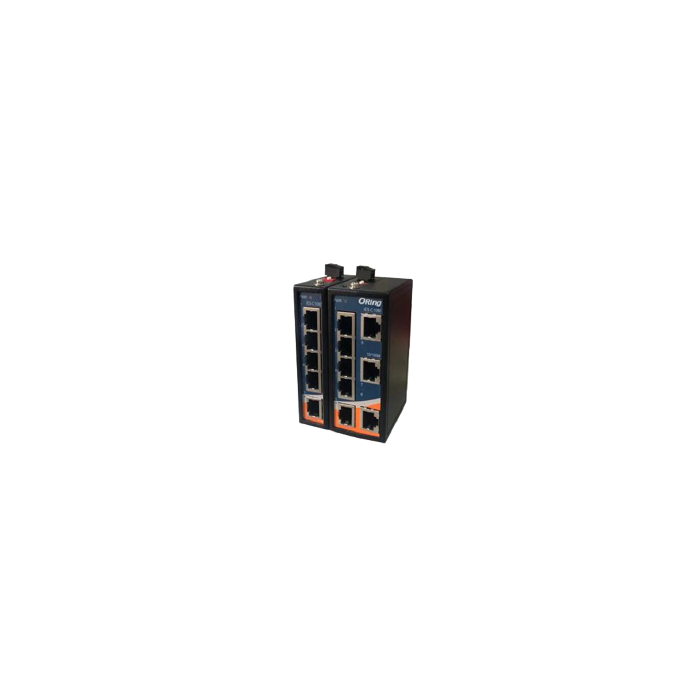

IGS-C1080 8-port Unmanaged Gigabit Industrial Switch

Be the first to review this product

A$265.00

In stock

SKU

IGS-C1080

Industrial 8-port unmanaged Gigabit Ethernet switch

Key Features:

Supports 8 x 10/100/1000Base-T(X), RJ45 connector
Compact size for easy installation
QoS supported to process critical data in heavy traffic
IP40 protection class
-40 to 75°C wide operating temperature range
DIN-Rail mounting enabled

Details

The IGS-C1080 line of gigabit Ethernet switches have 8 x10/100/1000Base-T(X) RJ45 ports and are unmanaged. A broad operating temperature range of -40°C to 75°C can also accommodate the majority of operating environments. As a result, the switch is among the most trustworthy options for Ethernet applications.

Key Features:

Supports 8 x 10/100/1000Base-T(X), RJ45 connector
Compact size for easy installation
QoS supported to process critical data in heavy traffic
IP40 protection class
-40 to 75°C wide operating temperature range
DIN-Rail mounting enabled

More Information

brand

Oring

Specifications

ORing Switch Model	IGS-C1080
Physical Ports
10/100/1000Base-T(X) Ports in RJ45 Auto MDI/MDIX	8
Technology
Ethernet Standards	IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow control
MAC Table	4k
Packet Buffer Size	1.5Mbits
Processing	Store-and-Forward
DIP Switch	Quality of Service (QoS), Broadcast Storm Protection (BSP)
Power
Single Input Power	12~48VDC on 2-pin terminal block.
Overload Current Protection	Present
Reverse Polarity Protection	Present
Physical Characteristics
Enclosure	IP-40
Dimensions (W x D x H)	43.5 × 103 × 64mm
Environmental
Storage Temperature	-40 to 85°C (-40 to 185°F)
Operating Temperature	-40 to 75°C (-40 to 167°F)
Operating Humidity	5% to 95% Non-condensing
Regulatory Approvals
EMC	CE EMC (EN 55032, EN 55035), FCC Part 15 B
EMI	CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A
EMS	EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000- 4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8(PFMF)
Safety	EN62368-1

Description

Key Features:

Supports 8 x 10/100/1000Base-T(X), RJ45 connector
Compact size for easy installation
QoS supported to process critical data in heavy traffic
IP40 protection class
-40 to 75°C wide operating temperature range
DIN-Rail mounting enabled
