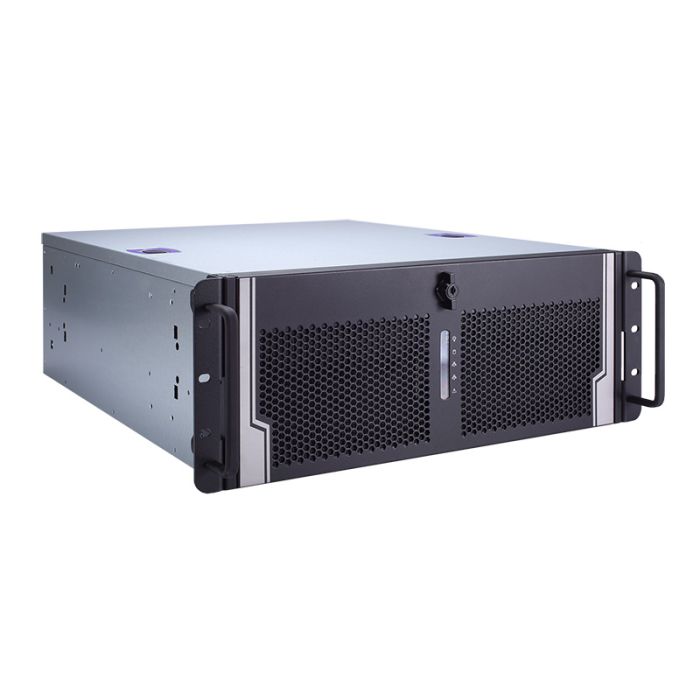

Axiomtek’s iHPC300 developed on the 3rd Gen Intel Xeon Scalable platform has forty powerful cores for accelerated AI inference and training performance. It has six DDR4-3200 R-DIMM sockets with an un-buffered non-ECC/ECC memory capacity of up to 384GB. The iHPC300 supports up to six accelerator cards to facilitate machine learning and video processing. Furthermore, it features rich data storage and flexible expandability to meet the specific needs of automation manufacturing, robotic, image or video analytics and other various sets of intricate AI workloads.
Features:
LGA4189 socket Intel Xeon Scalable processor, up to 270W, 40 cores
Six DDR4-3200 R-DIMM unbuffered non-ECC/ECC memory, up to 384GB
3 PCIe x16 and 3 PCIe x8, support up to six accelerator cards
LGA4189 socket Intel® Xeon® Scalable processor up to 270W, 40 cores
Chipset
Intel® 621A
Graphics
AST2510
System Memory
6 x DDR4-3200 R-DIMM unbuffered non-ECC/ECC memory, up to 384GB
BIOS
AMI
Watchdog Timer
255 levels, 1 to 255 sec.
Cooling
1 x 12cm PWM front fan
2 x 8cm easy-swap rear fan
Drive Capacity
Exposed 3 x 5.25" HDD drive bay and 1 x 3.5" HDD drive bay
Internal 3 x 3.5" HDD drive bay or 2 x 3.5" or 1 x 2.5"
Expansion
Slot1: PCIe x8
Slot2: PCIe x16 (signal: x16 or x8)
Slot3: PCIe x8 slot (signal: x0 or x8)
Slot4: PCIe x16 (Gen4)
Slot5: M.2 key M 2280 (signal: x4)
Slot6: PCIe x16 (Gen4)
Slot7: PCIe x8
Storage
6 x SATA3 with RAID 0/1/5/10
1 x NVMe M.2 M Key: 2280 (PCIe x4)
Ethernet
2 x 10/100/1000Mbps LAN (Intel® i210-AT)
COM
1 x RS-232/422/485
USB
4 x USB 3.1 Gen1 (rear I/O)
2 x USB 3.1 Gen1 (internal box header)
6 x USB 2.0 (internal box header)
1 x USB 2.0 (180D TypeA)
Audio
MIC-in/Line-in/Line-out/Speaker-out with audio kit AX93242 (optional)
Digital I/O
8 channels programmable
PS/2
1 x PS/2 keyboard and mouse
Display
1 x VGA
SMBus
System Management Bus for advanced monitoring/control
Power Supply
1200W
AC Input voltage: 100 to 240V
2000W
AC Input voltage: 200 to 240V
Operating Temperature
0°C to +40°C (+32°F to +104°F)
Relative Humidity
10% - 95%, non-condensing
Dimensions (W x D x H)
430 x 174.8 x 515 mm (16.9" x 6.9" x 20.3")
Weight (net/gross)
17.15 kg (37.8 lb)/ 21.78 kg (48 lb)
Certifications
CE/FCC
Description
Axiomtek’s iHPC300 developed on the 3rd Gen Intel Xeon Scalable platform has forty powerful cores for accelerated AI inference and training performance. It has six DDR4-3200 R-DIMM sockets with an un-buffered non-ECC/ECC memory capacity of up to 384GB. The iHPC300 supports up to six accelerator cards to facilitate machine learning and video processing. Furthermore, it features rich data storage and flexible expandability to meet the specific needs of automation manufacturing, robotic, image or video analytics and other various sets of intricate AI workloads.
Features:
LGA4189 socket Intel Xeon Scalable processor, up to 270W, 40 cores
Six DDR4-3200 R-DIMM unbuffered non-ECC/ECC memory, up to 384GB
3 PCIe x16 and 3 PCIe x8, support up to six accelerator cards
