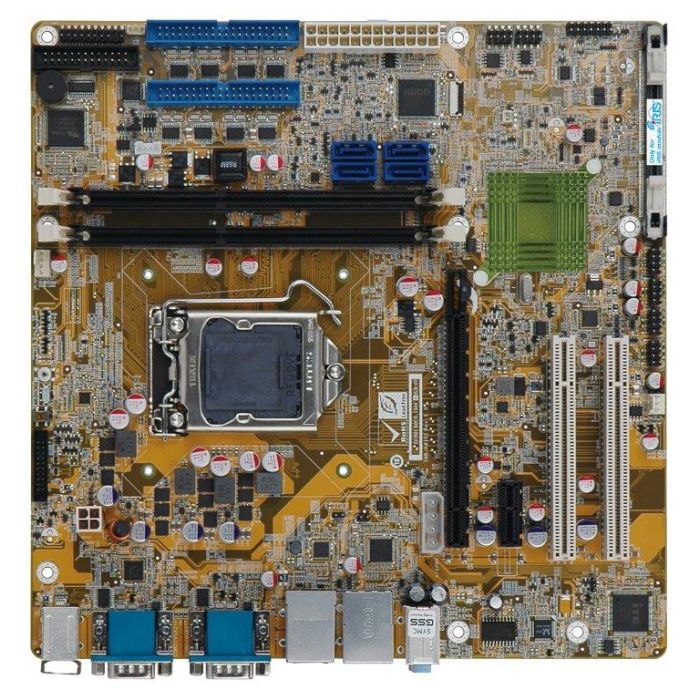

IMB-H810-i2 micro-ATX Motherboard
microATX motherboard supports 22nm LGA1150 Intel® Core™ i7/i5/i3, Pentium®, Celeron® CPU per Intel® H81
microATX motherboard supports 22nm LGA1150 Intel® Core™ i7/i5/i3, Pentium®, Celeron® CPU per Intel® H81
· LGA1150 4th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
· Dual-channel DDR3 1333/1600 MHz support up to 16 GB
· Intel® HD Graphics technology integrates high-performance graphics and media processing
· Supports legacy PCI 32-bit 33/66 MHz
· Ten COM ports, USB 3.0 and SATA supported
· TPM V1.2 hardware security function supported by TPM module
· IEI One Key Recovery solution allows you to create rapid OS backup and recovery
· Support IPMI 2.0 via iRIS-2400 module
· IEI jumper-less function
More Information
| Brand |
IEI Integration Corp. |
| Specifications |
| Spec Item |
Description |
| CPU Cooler |
| CPU Cooler |
CF-1156A-RS-R11
CF-1156E-R11 |
| Display |
| Display |
VGA1 (up to 1920x1200 @ 60 Hz)
VGA2 (up to 1920x1200 @ 60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160 @60 Hz) |
| Environment |
| Humidity |
10% ~ 95%, non-condensing |
| Operating Temperature |
-20°C ~ 60°C |
| Expansion Slots |
| Expansion Slots |
1 x PCIe x16 slot (Gen 3)
1 x PCIe x1 slot
2 x PCI slot |
| I/O Interface |
| Audio |
Line-in, Line-out (with 3.5W +3.5W audio amplifier), Mic |
| Ethernet |
LAN1: Intel® I217LM
LAN2: Intel® I210-AT PCIe controller with NCSI support |
| I/O Interface |
| I/O Interface |
2 x USB 3.0 |
| 2 x USB 2.0 |
| 1 x LPT |
| 8 x Internal USB 2.0 |
| 8 x Internal RS-232 |
| 2 x RS-232 |
| Option |
| iRIS |
1 x iRIS-2400 slot |
| Power |
| Power consumption |
3.3V@0.64A, 5V@4.20A, 12V@0.14A, Vcore_12V@3.88A, 5VSB@0.20A
(Intel® Core™ i7-4770K 3.90 GHz CPU with 8GB (2 x 4GB) 1333MHz DDR3 memory) |
| System |
| Chipset |
Intel® H81 |
| CPU |
Intel® 4th generation Core™ i7/i5/i3, Pentium® or Celeron® processor supported |
| CPU Socket |
LGA1150 |
| Memory Max. |
Two 240-pin 1600/1333MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 16GB |
| Storage |
2 x SATA 3Gb/s
2 x SATA 6Gb/s |
| Watchdog Timer |
| Watchdog Timer |
Software programmable, support 1~255 sec system reset |
|
| Description |
microATX motherboard supports 22nm LGA1150 Intel® Core™ i7/i5/i3, Pentium®, Celeron® CPU per Intel® H81
· LGA1150 4th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
· Dual-channel DDR3 1333/1600 MHz support up to 16 GB
· Intel® HD Graphics technology integrates high-performance graphics and media processing
· Supports legacy PCI 32-bit 33/66 MHz
· Ten COM ports, USB 3.0 and SATA supported
· TPM V1.2 hardware security function supported by TPM module
· IEI One Key Recovery solution allows you to create rapid OS backup and recovery
· Support IPMI 2.0 via iRIS-2400 module
· IEI jumper-less function
|
