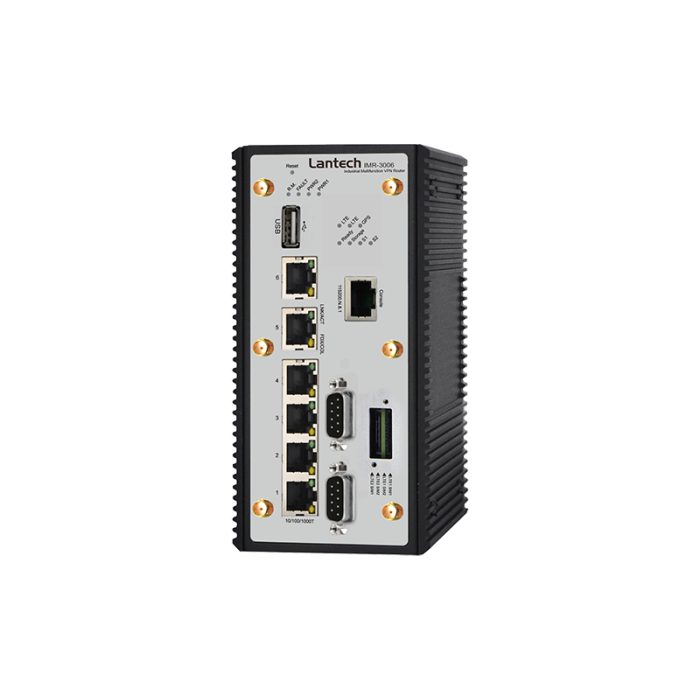

IMR-3006
Model Code: IMR-3006
- Up to 2 concurrent mobility for 3G/4G LTE Link&GPS(2L model/4 SIMs)
- Built-in 6 Gigabit Ethernet switch
- VPN router for Multi-site VPN, OpenVPN, L2TP, IPSec, PPTP**
Location Solutions
|
GPS, Glonass (EU/Americas)
GPS, Glonass, Beidou, Galileo (APAC model only)
|
Band Options
|
APAC & Australia (APAC model)
LTE:
2100/1800/850/2600/900/850/850/1500/700/2600/1900/2300/2500 MHz
(B1/B3/B5/B7/B8/B18/B19/B21/B28/B38/B39/B40/B41)
EU & USA model
LTE:
2100/1800/2600/900/800 MHz
(B1/B2/B3/B4/B5/B7/B12/B13/B20/B25/B26/B29/B30/B41)
WorldWide (WW model)
LTE:
2100/1900/1800/1700/850/2600/900/1800/700/
700/8/50/850/800/850/700/2300/1500/2500/3500/3700/5200/3600/1700
(B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B18/
B19/B20/B26/B28/B29/B30/B32/B41/B42/B43/B46/B48/B66)
|
Data Rates – LTE
|
APAC & Australia (APAC model)
Downlink (Cat 6):
FDD: 300 Mbps
TDD: 222 Mbps
Uplink (Cat 6):
FDD: 50 Mbps
TDD: 26 Mbps
Americas (US model) / EMEA (EU model)
Downlink (Category 3):
100 Mbps (20 MHz bandwidth)
50 Mbps (10 MHz bandwidth)
Uplink (Category 3):
50 Mbps (20 MHz bandwidth)
25 Mbps (10 MHz bandwidth)
|
Physical Ports & System
|
Connectors
|
10/100/1000T: 6x ports RJ 45
USB x 1
RS-232 connector: 1 x RJ 45
Serial connector : 2 DB9
SIM card slots : 4(2L) or 2(1L)
SMA connector : 6
Power & P-Fail connector: 1 x 6-pole terminal block
DIDO : 1 x 5-pole terminal block
|
|
Serial Baud Rate
|
1000Kbps high data rate,250kbps normal for RS232 ; 20Mbps high data rate,250kbps normal for RS422/485
|
|
Serial Data Bits
|
5, 6, 7, 8
|
|
Serial Parity
|
odd, even, none, mark, space
|
|
Serial Stop Bits
|
1, 1.5, 2
|
|
RS-232
|
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
|
|
RS-422
|
Tx+,Tx-, Rx+, Rx-,GND
|
|
RS-485 (2-wire)
|
Data+, Data-,GND
|
|
Isolation protection
|
RS422/485 2.5KV isolation; 8KV contact & 15KV air
RS232 8KV contact and 15KV air ESD
DIDO 3KV isolation
Input power 1.5KVA isolation
|
|
Micro SD
|
128G or 256G(MSD model)
|
|
DI/DO
|
2 Digital Input (DI) :
Level 0: -30~2V / Level 1: 10~30V
Max. input current:8mA
2 Digital Output(DO): Open collector to 40 VDC, 200mA
|
LED Indicators
|
Power & System indicator
|
Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red) , Ring Master(Green), Storage(Green), Serial1/Serial2(Green)
|
|
10/100/1000Base-T(X) port indicator
|
Link/Activity (Green), Speed (Yellow)
|
|
SIM
|
Green for Link/Act
|
|
GPS
|
Green for Link/Act
|
|
Fault
|
Red: Ethernet link down or power down
|
Fault Contact
|
Relay
|
Relay output to carry capacity of 1A at 24VDC
|
Power
|
Input power
|
Dual DC isolated inputs, 9~60VDC
|
|
Power consumption (Typ.)
|
30.5 Watts
|
Physical Characteristic
|
Enclosure
|
IP 30 aluminum case
|
|
Dimension
|
74 (W) x 142 (D) x 152 (H) mm
|
|
Weight
|
1000g
|
