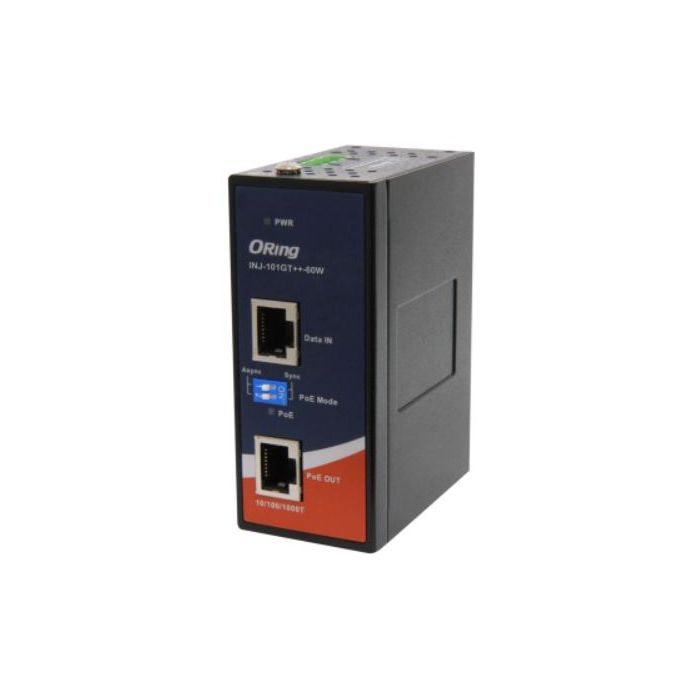

ORing Injector Model INJ-101GT++-90W-24V Physical Ports RJ-45 Ethernet Port Input 1 RJ-45 Ethernet Port with P.S.E. Output 1 Operating Voltage Input Voltage 9 ~ 57 VDC on 4-pin terminal block LED Indicators Power Indicator PWR: 1 x LED Green On: Power is on and functioning Normally. PoE Indicators 1 x LED Blue On: PoE Device Link Off : None PoE Device Detected Blink (Blue) : Overload present DIP Switch DIP Switch 1/2 *note1 DIP Switch 1/2 (OFF): PoE P.S.E set to master and Asyncronize mode. DIP Switch 1/2 (ON) : PoE P.S.E set to Syncronize mode(default) Power Input Power 9 ~ 57 VDC on 4-pin terminal block Power Consumption 1 Watts (Not include PD’s device) PoE Power Budget 30Watt at 9~24VDC, 90Watt at 24~57VDC Protection Short Circuit Protection Present Over Load Protection Present Physical Characteristic Enclosure IP-30 Dimension (W x D x H) 41(W)x70(D)x95(H)mm (1.03 x 2.76 x 3.74 inch) Weight (g) 318g Environmental Storage Temperature -40 to 85 oC (-40 to 185oF) Operating Temperature -40 to 75 oC (-40 to 167oF) Operating Humidity 5% to 95% Non-condensing Regulatory Approvals EMC CE EMC (EN55024,EN 55032), FCC Part 15 B EMI EN55032, CISPR 32, EN61000-3-2, EN61000-3-3, FCC Part 15 B class A EMS EN55024 (IEC/EN 61000-4-2 (ESD), IEC/EN 61000-4-3 (RS), IEC/EN 61000-4-4 (EFT), IEC/EN61000-4-5 (Surge), IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8 (PFMF), IEC/EN 61000-4-11 (DIP)) Shock IEC60068-2-27 Free Fall IEC60068-2-31 Vibration IEC60068-2-6 Safety EN60950-1 MTBF 2067004hrs Warranty 5 years
Description
·PoE++ Injector for 1x10/100/1000Base-T(X)
·Fully compliant with IEEE802.3at/802.3af standard
·Auto protection for Over Voltage Power Input and over current output
·Supports totally Power Output up to 90 Watts for all ports usage.
·Support wide range power input from 9 to 57VDC
·Provided DIP switch configurator for PoE mode management
