IPC962A Two-slot Industrial System 12th Gen

A$0.00

In stock

SKU

IPC962A-x-ExF6

LGA1700 Socket 12th Gen Intel Core i7/i5/i3 or Celeron Processor, Intel H610E/Q670E, Front-access I/O, and PCIe & PCI Slots

Key Features:

2 PCIe/PCI slots
Optional extension system I/O window
Optional 5G network (Q670E)
USB power on/off control via BIOS setting
Intelligent power management - ACC ignition
EN 61000-6-2 certified
Supports Intel RST

Details

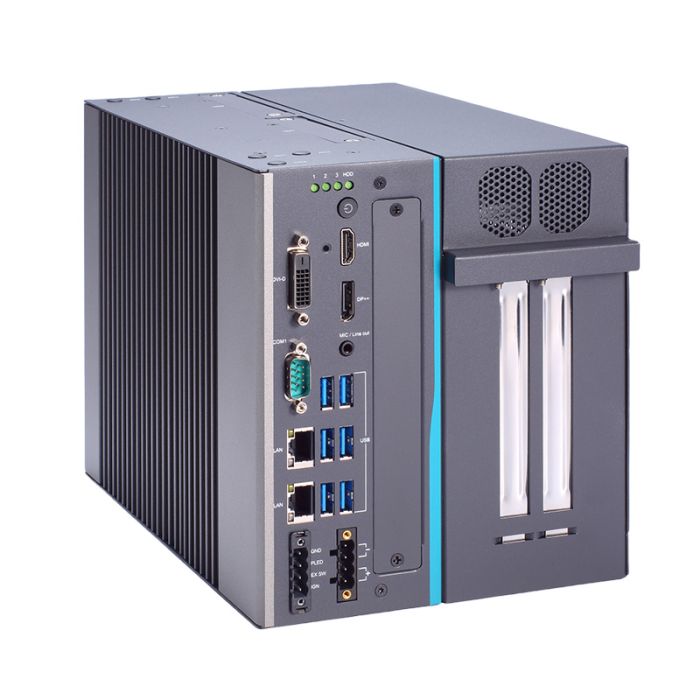

The IPC962A is a two-slot industrial system featuring an LGA1700 Socket for 12th Gen Intel Core i7/i5/i3/Celeron Processors, front-access I/O, and PCIe & PCI Slots. Ports can be customised using an extension system I/O window.

Key Features:

2 PCIe/PCI slots
Optional extension system I/O window
Optional 5G network (Q670E)
USB power on/off control via BIOS setting
Intelligent power management - ACC ignition
EN 61000-6-2 certified
Supports Intel® RST

More Information

brand

Axiomtek

Specifications

CPU	12th gen Intel® Core™ processor, up to 65W
Chipset	Intel® H610E/Q670E
System Memory	2 x DDR5 4800/4000 SO-DIMM, up to 64GB
BIOS	AMI
COM	1 x RS-232/422/485 (default RS-232) More COM ports available from extension I/O modules
USB	Intel® H610E: 4 x USB 3.2 Gen2x1 (10G) type A 2 x USB 2.0 Type A Intel® Q670E: 6 x USB 3.2 Gen2x1 (10G) type A 1 x USB 2.0 (Q670E, internal, up to 30mm) 180D type A More USB ports available from extension I/O modules
Ethernet	1 x 2.5GbE LAN (Intel i226-LM) 1 x 1GbE LAN (Intel i219-LM) with Intel AMT More LAN ports available from extension I/O modules
Display	1 x DisplayPort++ with 4096 x 2304 resolution supported 1 x HDMI with 4096 x 2304 resolution supported 1 x DVI-D with 1920 x 1200 resolution supported
Digital I/O	Available from extension I/O modules
Audio	1 x 3.5mm jack for Mic-in and Line-out
Storage	Intel® H610E: 2 x 2.5" HDD/SSD with Intel® RST supported (7/9.5/15 mm height) Intel® Q670E: 2 x 2.5" HDD/SSD with Intel® RST supported (7/9.5/15 mm height) 1 x M.2 Key M 2280 socket (PCIe x4 Gen4)
Expansion	UP to 200W power for add-in card, 1 x USB 2.0 (180D type A) EIO121: 1 PCIe x16 Gen4 +1 PCIe x8 (x4 signal) Gen4 EIO122: 1 PCIe x16 Gen4 + 1 PCI H610E: 1 x Full-size PCI Express Mini Card slot (USB & PCIe interface) w/SIM slot Q670E: 1 x Full-size PCI Express Mini Card slot (USB & PCIe interface) w/SIM slot 1 x M.2 Key E 2230 socket + 1 x M.2 Key B 3042/3050/3052/3060 socket w/SIM slot for 5G module or selected LTE module (optional)
Others	TPM 2.0 1 x HDD/SSD access LED 3 x User's LED 1 x Switch for power on/off with LED (default ATX)
Power	Input: 18 to 36 VDC 1 x Switch for power on/off with LED (default ATX) 1 x 4-pin terminal block (5.08 mm) for DC input 1 x 4-pin terminal block (5.08 mm) for ignition control, remote power and remote LED
Construction	Aluminium extrusion heavy-duty cold-rolled steel
Operating Temperature	-20°C to +70°C (+14°F to +140°F) with 12th gen Intel® Core™ processor and W.T. HDD/SSD*
Relative Humidity	10% to 90%, non-condensing
Dimensions (W x H x D)	170 x 192 x 260 mm (6.69" x 3.62" x 10.24")
Weight (net/gross)	5.1 kg (11.24 lb)/6.2 kg (13.67lb)
Software Support	AXView
EOS Support	Windows® 10, Linux
Certifications	CE (EN 61000-6-4/EN 61000-6-2), FCC

Description

Key Features:

2 PCIe/PCI slots
Optional extension system I/O window
Optional 5G network (Q670E)
USB power on/off control via BIOS setting
Intelligent power management - ACC ignition
EN 61000-6-2 certified
Supports Intel® RST
