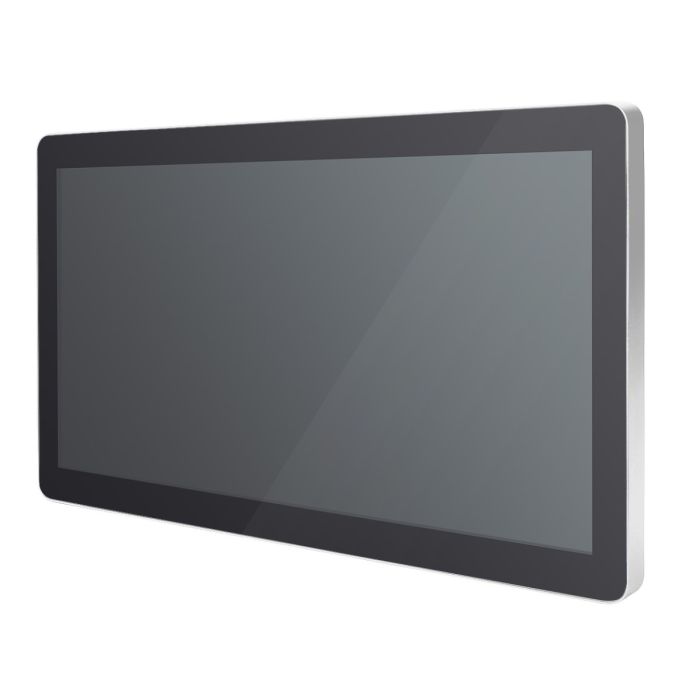

ITC150WM 15.6" Slim Bezel Modular Panel PC

A$0.00

In stock

SKU

ITC150WM-SDMxxxx-xxxxxx

15.6" FHD TFT-LCD Slim Bezel Modular Panel PC Powered by Intel® Smart Display Module
(SDM) CPU Card

· 15.6" full HD TFT-LCD

· Aspect ratio: 16:9; brightness: 300 nits

· Slim bezel shape under 40 mm thickness

· Projected capacity touch supported, 10-point touch

· Swappable CPU card design

· Supports Intel® SDM CPU card Metal frame structure for various application

· Supports add-on modules and mounting kits (optional)

More Information
Brand	Axiomtek
Specifications	Front Bezel metallic front bezel, IP54 LCD Panel Main System Display Type 15.6" FHD TFT-LCD Brightness (cd/m2) 300 nits 16:9 Intel® SDM Small (SDM-S, 60 x 100 mm) Intel® SDM Large (SDM-L, 175 x 100 mm) Power Supply 60W (12V@5A) AC to DC power adapter Power Consumption Average 45W Dimensions 386 mm (15.1”) (W) x 40 mm (1.6”) (D) x 241 mm (9.5”) (H) Weight (net/gross) 1.15 kg (2.42 lb)/5.4kg (11.9 lb) Operating Temperature Operating Humidity Certications 0°C to +40°C (+32°F to +104°F) 20% - 80%, non-condensing CE, FCC Class A, and CB
Description	· 15.6" full HD TFT-LCD · Aspect ratio: 16:9; brightness: 300 nits · Slim bezel shape under 40 mm thickness · Projected capacity touch supported, 10-point touch · Swappable CPU card design · Supports Intel® SDM CPU card Metal frame structure for various application · Supports add-on modules and mounting kits (optional)
