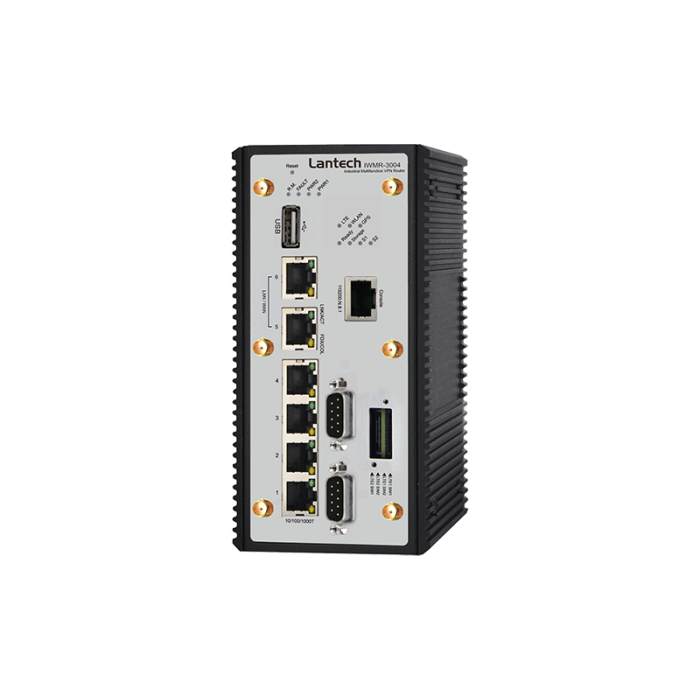

Shop IWMR-3004 Industrial VPN Router

Details

Lantech IWMR-3004 series is a next-generation industrial multi-function VPN router w/up to 2x 802.11ac Wi-Fi + up to 2x LTE modem + 4x Gigabit Ethernet switch + 2 WAN + 2 serial ports that support the advanced function of VPN, Load-balancing, Protocol gateway(Modbus), EMMC Flash Storage**, WiFi roaming and LTE quad SIM fail-over for industrial applications. The dual-core CPU with 1.6GHz + 256M flash enables the router to multi-task smoothly.

More Information

Specifications

_{Operating Mode}	_{AP/BRIDGE/Client modes}
_{Radio Frequency Type}	_{DSSS, OFDM}
_{Wireless Standard}	_{IEEE 802.11ac/n/a 5GHz} _{IEEE 802.11b/g/n 2.4GHz}
_{Wireless bandwidth}	_{5GHz: Up to 1300Mbps} _{2.4GHz: Up to 450Mbps}
_Modulation	_{802.11b: DSSS} _802.11a/g: _{OFDM (BPSK, QPSK, 16-QAM, 64-QAM)} _802.11n: _{OFDM (BPSK, QPSK, 16-QAM, 64-QAM)} _802.11ac: _{OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)}
_{Operating Frequency}	_{IEEE 802.11 a/b/g/n ISM Band, 2.412GHz~2.472GHz, 5150MHz~5850MHz}
_{Transmission Rate}	_{IEEE802.11ac: up to 1300Mbps} _{IEEE802.11b: 1 / 2 / 5.5 / 11 Mbps} _{IEEE802.11a/g: 6 / 9 / 12 / 18 / 24 / 36 / 48 / 54 Mbps} _{IEEE802.11n: up to 450Mbps}
_{IEEE 802.11b/g/n(2.4Gbps)}	_{Output Power Tx +/- 2dB(per chain)} _{18dBm @ 1~11Mbps} _{18dBm @ 6~54Mbps} _{20/20dBm @ MCS0~MCS7 (HT20/40)} _{Receiver Sensitivity Rx +/- 2dB} _{≦-95dBm @ 1~11Mbps} _{≦-92dBm @ 6~18Mbps} _{≦-88dBm @ 24Mbps} _{≦-85dBm @ 36Mbps} _{≦-81dBm @ 48Mbps} _{≦-80dBm @ 54Mbps} _{≦-94dBm @ MCS0 (HT20/40)} _{≦-76dBm @ MCS7 (HT20/40)}
_{IEEE 802.11a/n/ac(5Gbps)}	_{Output Power Tx +/- 2dB(per chain)} _{20dBm @ 6~24Mbps} _{16dBm @ 36~54Mbps} _{19/18dBm @ MCS0 (HT20/40)} _{16/16dBm @ MCS7 (HT20/40)} _{19/18/18dBm @ MCS0 (VHT20/40/80)} _{13/13/13dBm @ MCS8 (VHT20/40/80)} _{13/13dBm @ MCS9 (VHT40/80)} _{Receiver Sensitivity Rx +/- 2dB} _{≦-92dBm @ 6~18Mbps} _{≦-86dBm @ 24Mbps} _{≦-84dBm @ 36Mbps} _{≦-81dBm @ 48Mbps} _{≦-80dBm @ 54Mbps} _{≦-93dBm @ MCS0 (HT20/40)} _{≦-71dBm/≦-80dBm @ MCS7 (HT20/40)} _{≦-90dBm @ MCS0 (VHT20/40/80)} _{≦-69dBm @ MCS8 (VHT20/40/80)} _{≦-66dBm @ MCS9 (VHT40/80}
_{Encryption Security}	_{WEP : (64-bit ,128-bit key supported)} _{WPA /WPA2 : IEEE802.11i(WEP and AES encryption)} _{WPA-PSK (256-bit key pre-shared key supported)} _{OKC and 802.11r} _{EAP,MD5,EAP,TLS,EAP,TTLS,EAP} _{MsCHAPv3 and PEAP **}
_{Wireless Security}	_{SSID broadcast disable**}

Description

Lantech IWMR-3004 series is a next-generation industrial multi-function VPN router w/up to 2x 802.11ac Wi-Fi + up to 2x LTE modem + 4x Gigabit Ethernet switch + 2 WAN + 2 serial ports that support the advanced function of VPN, Load-balancing, Protocol gateway(Modbus), EMMC Flash Storage**, WiFi roaming and LTE quad SIM fail-over for industrial applications. The dual-core CPU with 1.6GHz + 256M flash enables the router to multi-task smoothly.

Reviews

Write Your Own Review

Downloads

Product Data Sheet

IWMR-3004 Industrial Multifunction VPN Router

Operating Mode

AP/BRIDGE/Client modes

Radio Frequency Type

DSSS, OFDM

Wireless Standard

IEEE 802.11ac/n/a 5GHz IEEE 802.11b/g/n 2.4GHz

Wireless bandwidth

5GHz: Up to 1300Mbps 2.4GHz: Up to 450Mbps

Modulation

802.11b: DSSS802.11a/g: OFDM (BPSK, QPSK, 16-QAM, 64-QAM)802.11n: OFDM (BPSK, QPSK, 16-QAM, 64-QAM)802.11ac: OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)

Operating Frequency

IEEE 802.11 a/b/g/n ISM Band, 2.412GHz~2.472GHz, 5150MHz~5850MHz

Transmission Rate

IEEE802.11ac: up to 1300Mbps IEEE802.11b: 1 / 2 / 5.5 / 11 Mbps IEEE802.11a/g: 6 / 9 / 12 / 18 / 24 / 36 / 48 / 54 Mbps IEEE802.11n: up to 450Mbps

IEEE 802.11b/g/n(2.4Gbps)

IEEE 802.11a/n/ac(5Gbps)

Encryption Security

WEP : (64-bit ,128-bit key supported) WPA /WPA2 : IEEE802.11i(WEP and AES encryption) WPA-PSK (256-bit key pre-shared key supported) OKC** and 802.11r** EAP,MD5,EAP,TLS,EAP,TTLS,EAP MsCHAPv3 and PEAP **

Wireless Security

SSID broadcast disable**

_{Operating Mode}

_{AP/BRIDGE/Client modes}

_{Radio Frequency Type}

_{DSSS, OFDM}

_{Wireless Standard}

_{IEEE 802.11ac/n/a 5GHz}
_{IEEE 802.11b/g/n 2.4GHz}

_{Wireless bandwidth}

_{5GHz: Up to 1300Mbps}
_{2.4GHz: Up to 450Mbps}

_Modulation

_{802.11b: DSSS}
_802.11a/g:
_{OFDM (BPSK, QPSK, 16-QAM, 64-QAM)}
_802.11n:
_{OFDM (BPSK, QPSK, 16-QAM, 64-QAM)}
_802.11ac:
_{OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)}

_{Operating Frequency}

_{IEEE 802.11 a/b/g/n ISM Band, 2.412GHz~2.472GHz, 5150MHz~5850MHz}

_{Transmission Rate}

_{IEEE802.11ac: up to 1300Mbps}
_{IEEE802.11b: 1 / 2 / 5.5 / 11 Mbps}
_{IEEE802.11a/g: 6 / 9 / 12 / 18 / 24 / 36 / 48 / 54 Mbps}
_{IEEE802.11n: up to 450Mbps}

_{IEEE 802.11b/g/n(2.4Gbps)}

_{IEEE 802.11a/n/ac(5Gbps)}

_{Encryption Security}

_{WEP : (64-bit ,128-bit key supported)}
_{WPA /WPA2 : IEEE802.11i(WEP and AES encryption)}
_{WPA-PSK (256-bit key pre-shared key supported)}
_{OKC and 802.11r}
_{EAP,MD5,EAP,TLS,EAP,TTLS,EAP}
_{MsCHAPv3 and PEAP **}

_{Wireless Security}

_{SSID broadcast disable**}
