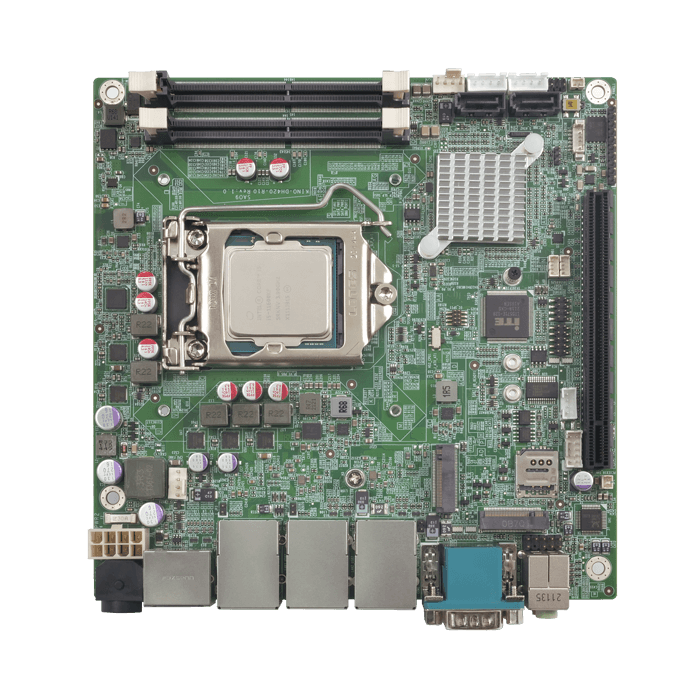

KINO-DH420 Mini-ITX SBC 10th Gen CPU

A$0.00

In stock

SKU

KINO-DH420-R10

Mini-ITX SBC LGA1200 Intel 10th Generation Core i9/i7/i5/i3/Pentium/Celeron, DDR4, dual displays, 3x2.5 GbE LAN, M.2, SATA 6Gb/s, HD Audio and RoHS

Details

Mini-ITX SBC that supports LGA1200 Intel 10th Generation Core i9/i7/i5/i3/ Pentium/Celeron processor, DDR4, dual independent displays, triple 2.5 GbE LAN, M.2, SATA 6Gb/s, HD Audio and RoHS.

Key Features:

LGA1200 Intel 10th Generation Core i9/i7/i5/i3, Celeron and Pentium processor
Triple Intel 2.5Gb Ethernet controller
HDMI, DP and display output
Support 1 x PCIe Gen3 x16, 1 x M.2 A key, 1 x M.2 B key expansion

More Information

brand

IEI Integration Corp.

Specifications

Hardware Spec.

Form Factor
Form Factor	Mini-ITX Motherboard
System
CPU	LGA1200 Intel 10th Generation Core i9/i7/i5/i3, Celeron and Pentium processor
Chipset	Intel H420E
Memory	Two 260-pin 2933 MHz Dual-Channel DDR4 SO-DIMMs supported up to 64GB
Memory Max.	up to 64GB
Cooling method / System Fan	1 x CPU fan connector (1x4 pin) 2 x System fan connector (1x4 pin)
Physical Characteristics
Dimensions (LxWxH) (mm)	170mm x 170mm
Net Weight	400g
Storage
Storage	2 x SATA : 6Gb/s (no RAID)
	1 x M.2(NGFF) : B key (support NVME storage)
I/O Interface
Display Output	1 x HDMI up to 4096 x 2160 @30Hz
	1 x Display Port up to 4096 x 2304 @60Hz
Ethernet	3 x LAN - LAN1: Intel® i225LM GbE controller (colay i225v) LAN2: Intel® i225v GbE controller (colay i225LM) LAN3: Intel® i225v GbE controller (colay i225LM)
Audio	1 x Line out
	1 x Mic
	1 x Front Audio : 2x5 pin
	1 x HD Audio : Realtek ALC888S HD codec
I/O Interface	2 x External RS-232
	1 x Internal RS-232 : 2x5 pin, P=2.00
	1 x Internal RS-422/485 : RS-485 support AFC
	2 x External USB 2.0 : Type-A
	4 x External USB 3.2 Gen1x1 : 5Gb/s(Type-A)
	2 x Internal USB 2.0 : 2x4 pin, P=2.00
	1 x DIO : 8-bit digital I/O (2x5 pin)
Expansion	1 x PCIe x16
	2 x M.2(NGFF) - 1 x M.2 A key (2230) (PCIe Gen 3 x1/USB 2.0) 1 x M.2 B key (3042/3052/2242/2280) w/ SIM holder (PCIe Gen 3 x2/USB 2.0)
Other Features
TPM	Intel® PTT(TPM 2.0)
Power
Power Consumption	12V@12.408A (Intel® Core™ i7-10900E CPU with two 32 GB 2933 MHz DDR4 memory, EuP/ErP mode disabled)
Power Supply	DC 12V input 1 x ATX power connector (2x4 pin) 1 x DIN 4-pin DC Jack Support AT/ATX mode ErP/EuP Compliant
Environment
Operating Temperature	0°C – 60°C
Storage Temperature	-30°C – 70°C
Humidity	5% ~ 95%, non-condensing
Certifications
Safety & EMC	CE/FCC compliant

Ordering Information

KINO-DH420-R10	Mini-ITX SBC supports LGA1200 Intel® 10th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, dual independent displays, triple 2.5GbE LAN, M.2, SATA 6Gb/s, HD Audio and RoHS

Package Contents

Package Content	1 x KINO-DH420 single board computer 1 x SATA cable 1 x I/O shielding 1 x QIG

Description

Mini-ITX SBC that supports LGA1200 Intel 10th Generation Core i9/i7/i5/i3/ Pentium/Celeron processor, DDR4, dual independent displays, triple 2.5 GbE LAN, M.2, SATA 6Gb/s, HD Audio and RoHS.

Key Features:

LGA1200 Intel 10th Generation Core i9/i7/i5/i3, Celeron and Pentium processor
Triple Intel 2.5Gb Ethernet controller
HDMI, DP and display output
Support 1 x PCIe Gen3 x16, 1 x M.2 A key, 1 x M.2 B key expansion
