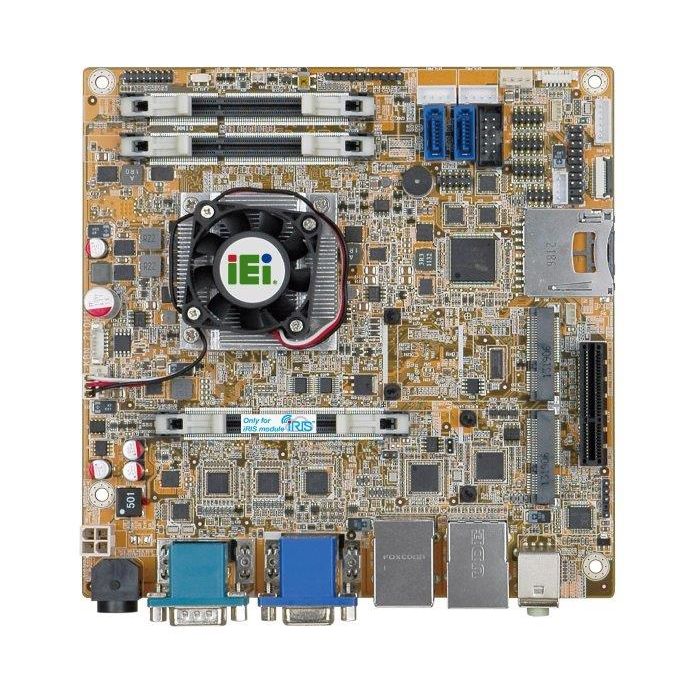

KINO-KBN-i2 Mini-ITX SBC with AMD Embedded G-Series SoC

A$0.00

In stock

SKU

KINO-KBN-i2-xxxx-R10

Mini-ITX SBC with AMD® Embedded G-Series SoC

Mini-ITX SBC with AMD® Embedded G-Series SoC

· Mini-ITX form factor with AMD® Embedded G-Series SoC

· 12V only single voltage design for AT/ATX power

· Dual independent display by VGA, dual HDMI

· Supporting dual PCIe Mini card slot with mSATA, wireless card, DOM capabilities

· Support IPMI 2.0 through iRIS module

· IEI One Key Recovery solution allows you to create rapid OS backup and recovery

brand

IEI Integration Corp.

Specifications

Spec Item	Description
CPU Cooler
CPU Cooler	GX-415GA (with hearsink) GX-210HA (with cooler)
Display
Display	Dual display supported 1 x VGA 2 x HDMI
Environment
Humidity	5% ~ 95% non-condensing
Operating Temperature	0°C ~ 60°C (32°F ~ 140°F)
Expansion Slots
Expansion Slots	1 x Half-size PCIe Mini card slot 1 x PCIe x4 slot
I/O Interface
Audio	Realtek ALC892 HD Audio codec
Digital I/O	8-bit Programmable I/O (8-bit GPIO is for programming I/O)
Ethernet	LAN1: Intel® I210-AT PCIe controller with NCSI support LAN2: Intel® I211-AT PCIe controller
I/O Interface	1 x RS-422/485 4 x RS-232 2 x USB 3.0 4 x USB 2.0 1 x 6-pin wafer for PS/2 KB/MS
I/O Interface
I/O Interface	2 x USB 3.0
	1 x RS-422/485
	4 x USB 2.0
	4 x RS-232
Option
iRIS	1 x iRIS-2400 slot
Power
Power consumption	12V@ 1.45A (AMD GX-415GA 1.5GHz CPU with 1333MHz 2GB DDR3 memory)
System
Chipset	AMDR Embedded G-Series SoC
CPU	AMDR Embedded G-Series SoC
CPU Socket	On board
Memory Max.	Two 204-pin 1600/1333MHz dualchannel DDR3 & DDR3L SDRAM unbuffered DIMMs (system max. 8GB)
Storage	2 x SATA 6Gb/s with SATA power connector 1 x mSATA (colay SATA port 2) 1 x SD card
Watchdog Timer
Watchdog Timer	Software programmable and supports 1~255 sec. system reset
