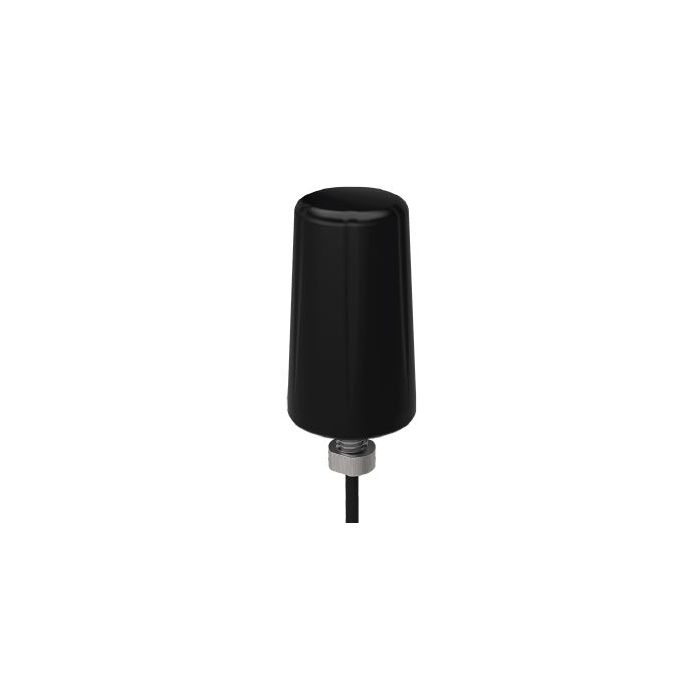

LP-IN2830 4G/5G Low Profile Antenna
Omnidirectional antenna covering 617-960/1427-6000MHz
Key Features:
- Cost effective 2G/3G/4G/5G antenna solution
- Designed for bracket or cabinet/enclosure installation
- Integral 1m (3’) double-shielded coaxial cable
- IP68 rated
LP-IN2830 is an omnidirectional broad band antenna range covering 617-960/1427-6000MHz which has been specially adapted for use in hostile, frequently flooded environments for applications like sewer monitoring and water metering.
The antenna is designed to be wall, mast or panel mounted either using a bracket (not supplied) or on a device/enclosure. The exposed metal parts of the antenna body are 316 stainless steel making the antenna very resistant to corrosion.
The omni-directional radiation pattern allows easy placement of the antenna in any position, without requiring directional alignment.
The LP-IN2830 antenna is supplied with an integral ultra-low loss FR CS29 coaxial cable, of various lengths, fitted with a special SMA plug
which forms a seal preventing water from wicking up the cable into the antenna housing during submersion.
This antenna is protected to IP68 even when mounted on a bracket provided that the SMA plug is properly connected.
| Brand | Panorama Antennas | ||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
||||||||||||||||||||||||||||||||||||||||||||
| Description | LP-IN2830 is an omnidirectional broad band antenna range covering 617-960/1427-6000MHz which has been specially adapted for use in hostile, frequently flooded environments for applications like sewer monitoring and water metering. The antenna is designed to be wall, mast or panel mounted either using a bracket (not supplied) or on a device/enclosure. The exposed metal parts of the antenna body are 316 stainless steel making the antenna very resistant to corrosion. The omni-directional radiation pattern allows easy placement of the antenna in any position, without requiring directional alignment. The LP-IN2830 antenna is supplied with an integral ultra-low loss FR CS29 coaxial cable, of various lengths, fitted with a special SMA plug This antenna is protected to IP68 even when mounted on a bracket provided that the SMA plug is properly connected.
|
