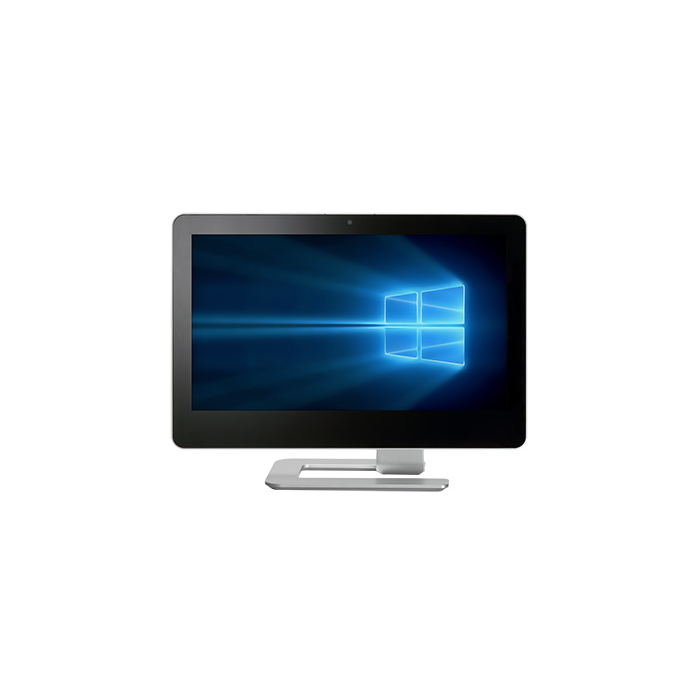

M1070 - 21.5" FHD 7th gen i series CPU
A$0.00
In stock
SKU
M1070 - 7th gen i series CPU & FHD LCD
21.5" All In One System Intel® 7th & 6th core I series
21.5" Full HD TFT LCD with 30,000 backlight lifetime
True-flat touchscreen with projected capacitive multi-touch control
High-quality stereo sound
More Information
| Specifications |
| M1070 (M1070) Specifications |
| MECHANICAL |
|
MOUNTING |
100 mm x 100 mm VESA Mount Kit (Optional) |
| |
DIMENSIONS (W X D X H) |
539.5 x 419.7 x 199.5 mm (w/ Stand) |
| |
WEIGHT |
8.9kg (19.58 lb) |
| LCD |
|
DISPLAY TYPE |
21.5" TFT-LCD |
| |
MAX. RESOLUTION |
1920 x 1080 |
| |
MAX. COLORS |
16.7M (6 bit) |
| |
LUMINANCE (cd/m2) |
300 |
| |
VIEWING ANGLE (H/V) |
170° / 160° |
| |
LED BACKLIGHT LIFETIME (hrs) |
30,000 |
| SIDE I/O PORT |
|
USB 2.0 |
2 |
| |
4-IN-1 CARD READER |
1 |
| |
ODD |
DVD super-multi double layer (optional) / Blu-ray ODD support (optional) |
| |
WEBCAM |
1.0 HD mega pixel, HD 720p 16:9 lens with array digital microphone |
| |
SYSTEM BOTTOM |
Power / Brightness control / HDMI-in |
| TOUCH SCREEN |
|
TYPE |
P-CAP |
| |
TOUCH SCREEN |
True-flat 10 points |
| SYSTEM |
|
PROCESSOR |
7 / 6th Gen Intel® Kaby Lake / Skylake LGA1151 Socket Processor, TDP Max. 65W |
| |
CHIPSET |
Intel® H110 |
| |
SYSTEM MEMORY |
DDR4 2133MHz / 2 x 260-pin SO-DIMM / Max. 32GB (Non-ECC) |
| |
ETHERNET |
Realtek® RTL8111G Giga LAN |
| |
I/O PORT |
1 x DC Jack / 4 x USB 3.0 / 1 x RJ-45 / 1 x VGA / 1 x HDMI 1.4 / 1 x Line-out / 1 x Mic-in |
| |
EXPANSION SLOT |
Mini PCIe Half size (PCIe / USB) / Mini PCIe Full size (PCIe / USB / SATA) |
| |
STORAGE |
1 x SATA 2.5” / 3.5" HDD / SSD bay |
| |
STEREO SPEAKER |
2 x 5W |
| |
OS SUPPORT |
7th Gen Kaby Lake: Windows 10 64bit, Linux (support by request) / 6th Gen Skylake: Windows 7 32 / 64bit |
| |
WATCHDOG TIMER |
1~255 steps by software program |
| POWER REQUIREMENT |
|
POWER INPUT |
19V DC-in connectivity |
| |
POWER ADAPTER |
180W adapter / AC / DC / DC19V / 7.1A |
| ENVIRONMENTAL |
|
OPERATING TEMPERATURE |
0~ 40°C (32 ~ 104°F) |
| |
STORAGE TEMPERATURE |
-20 ~ 60°C (-4 ~ 140°F) |
| |
STORAGE HUMIDITY |
10% ~ 95% @60°C non-condensing |
| |
VIBRATION RESISTANCE |
Operating Random vibration Test 5-500Hz, 0.3 Grms@with HDD |
| |
SHOCK RESISTANCE |
Operating 50 G peak (3 ms duration) |
| |
EMC |
CE / FCC Class B |
| |
FRONT PANEL PROTECTION |
- |
| PACKING LIST |
|
PACKAGE |
1 x Driver CD / 1 x Quick Installation Guide / US + EU Power Cord / 1 x Panel PC / 1 x Power Adapter (19V, 180W, DC Jack Type) |
|
| Description |
21.5" Full HD TFT LCD with 30,000 backlight lifetime
True-flat touchscreen with projected capacitive multi-touch control
High-quality stereo sound
|
