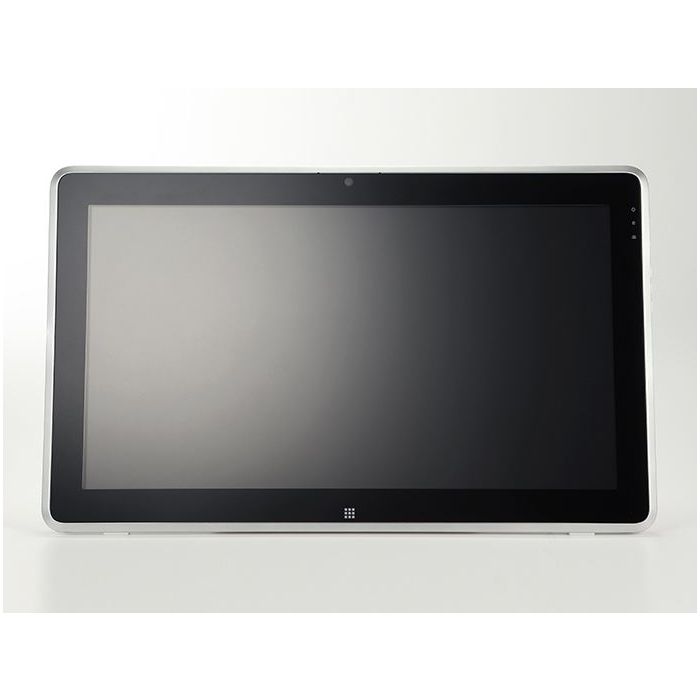

M200i 19.5" Panel PC/AIO, Celeron N2930
9.5" All In One System / Intel® N2930
- 19.5" HD TFT LCD with 30,000 hrs backlight lifetime
- True-flat touchscreen with projected capacitive multi-touch control
The Maestro 200 / 200i is a 19.5" Panel PC / AIO from Mitac with a seamless PCAP touchscreen with up to 10 finger touch. Its the ideal solution for Kiosks and POI applications with an auto rotation function for portrait applications
Based on the Intel® Celeron™ N2930 Baytrail-M CPU the unit is available in black or white case and can used with a stand or wall mounted with a VESA bracket. The external I/O includes 2 x USB (4 x USB on M200i), 2 x RS232 and Gigabit LAN. Internally there are 2 x mPCIe expansion slots for WLAN, BT and WWAN configuration options. Other features include dual digital microphones, dual speakers, SD card reader and kensington lock.
The unit has the option of a 3 hour internal battery, ideal for situations where power in unstable
The unit will support Windows 7, 8.1, or 10 operating systems.
Intel® Celeron™ N2930 Baytrail-M CPU
Up to 8GB memory
2.5" SATA / mSATA storage
2 x mPCIe (for WLAN/BT/WWAN)
1 x HDMI / 1 x VGA
2 x RS232
1 x USB2.0, 1 x USB3.0 (M200)
2 x USB2.0, 2 x USB3.0 (M200i)
1x GbE
12 VDC input
Overall size 116 x 107 x 30mm
0 to 40c operating
O/S - Win8/8.1/Win10
Digital Signage
Public Information Display
POI/POS terminal
| Specifications |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Description | The Maestro 200 / 200i is a 19.5" Panel PC / AIO from Mitac with a seamless PCAP touchscreen with up to 10 finger touch. Its the ideal solution for Kiosks and POI applications with an auto rotation function for portrait applications Based on the Intel® Celeron™ N2930 Baytrail-M CPU the unit is available in black or white case and can used with a stand or wall mounted with a VESA bracket. The external I/O includes 2 x USB (4 x USB on M200i), 2 x RS232 and Gigabit LAN. Internally there are 2 x mPCIe expansion slots for WLAN, BT and WWAN configuration options. Other features include dual digital microphones, dual speakers, SD card reader and kensington lock. The unit has the option of a 3 hour internal battery, ideal for situations where power in unstable The unit will support Windows 7, 8.1, or 10 operating systems. Intel® Celeron™ N2930 Baytrail-M CPU Up to 8GB memory 2.5" SATA / mSATA storage 2 x mPCIe (for WLAN/BT/WWAN) 1 x HDMI / 1 x VGA 2 x RS232 1 x USB2.0, 1 x USB3.0 (M200) 2 x USB2.0, 2 x USB3.0 (M200i) 1x GbE 12 VDC input Overall size 116 x 107 x 30mm 0 to 40c operating O/S - Win8/8.1/Win10 Digital Signage Public Information Display POI/POS terminal |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
