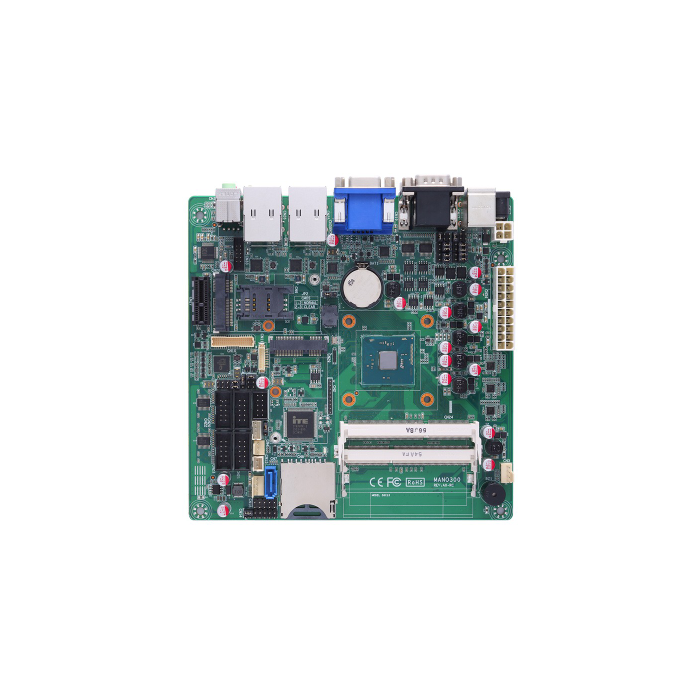

MANO300 Mini-ITX SBC Celeron N3160 SoC, VGA/HDMI/LVDS

A$0.00

In stock

SKU

MANO300VHGGA

Mini-ITX SBC with Intel® Celeron® Processor N3160 (up to 2.24 GHz) SoC, VGA/HDMI/LVDS, USB 3.0, Mini PCIe Card, mSATA and HD Audio

Intel® Celeron® processor N3160 2.24 GHz (Braswell)

2 DDR3L-1600 SO-DIMM, up to 8GB

PCI Express Mini Card and PCIe x1 slot

4 USB 3.0 and 2 USB 2.0 ports

1 SATA-600, 1 mSATA and 1 SDXC

6 COM ports

12 VDC and STD ATX

VGA,HDMI and LVDS with triple-view supported

brand

Axiomtek

Specifications

CPU	Intel® Celeron® processor N3160 up to 2.24 GHz
Chipset	SoC integrated
System Memory	2 x 204-pin SO-DIMM dual channel DDR3L-1600, up 8 GB
BIOS	AMI
COM	2 x RS-232/422/485 4 x RS-232 (one with +5/+12V)
USB	2 x USB 2.0 (Internal) 4 x USB 3.0
Ethernet	2 x 10/100/1000 Mbps (Realtek RTL8111F)
Display	1 x VGA 1 x HDMI 1 x LVDS
Digital I/O	8 channels programmable
Audio	Mic-in/Line-out
Storage	1 x SATA-600 1 x mSATA
Expansion	1 x PCIe x1 1 x PCI Express Mini Card 1 x SIM card slot
Others	1 x PS/2 keyboard & mouse
Battery	Lithium 3 V/ 220 mAH
Power Input	12VDC or STD ATX
Watchdog Timer	255 levels, 1 ~ 255 sec.
Hardware Monitoring	N/A
Operating Temperature	0°C ~ +60°C (+32°F ~ +140°F)
Relative Humidity	10% ~ 95% relative humidity, non-condensing
Dimensions	170 x 170 mm
Board Thickness	1.6 mm
Certifications	CE
