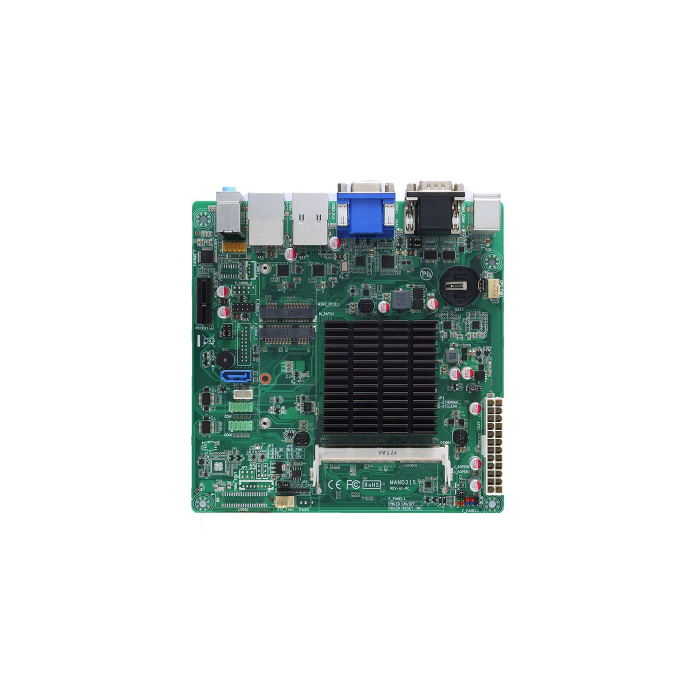

MANO315 Mini-ITX SBC Celeron J3355

A$0.00

In stock

SKU

MANO315VHGGA-J3355

Mini-ITX SBC with Intel® Celeron® Processor J3355, VGA, HDMI, USB 3.0, PCI Express Mini Card Slot, mSATA and HD Audio

Intel® Celeron® processor J3355 (Apollo Lake)

DDR3L SO-DIMM for up to 8GB of memory

1 PCI Express Mini Card slot and PCIe x1

2 USB 3.0 and 4 USB 2.0

1 SATA-600 and 1 mSATA

4 COM supported

STD ATX Power

VGA and HDMI supported

brand

Axiomtek

Specifications

CPU	Intel® Celeron® processor J3355
Chipset	SoC integrated
System Memory	1 x 204-pin SO-DIMM DDR3L-1866, up to 8GB
BIOS	AMI
COM	2 x RS-232 (rear I/O with +5V supported) 2 x RS-232
USB	2 x USB 2.0 (internal) 2 x USB 3.0 2 x USB 2.0 (rear I/O)
Ethernet	2 x 10/100/1000 Mbps (Realtek RTL8111F)
Display	1 x VGA 1 x HDMI
Digital I/O	N/A
Audio	Mic-in/Line-out
Storage	1 x SATA-600 1 x mSATA
Expansion	1 x PCIe x1 1 x PCI Express Mini Card slot
Others	1 x PS/2 keyboard and mouse
Battery	Lithium 3V/220 mAH
Power Input	N/A
Watchdog Timer	255 levels, 1 to 255 sec.
Hardware Monitoring	Yes
Operating Temperature	0°C to +60°C (+32°F to +140°F)
Relative Humidity	10% to 95% relative humidity, non-condensing
Dimensions	170 x 170 mm
Board Thickness	1.6 mm
Certifications	CE
