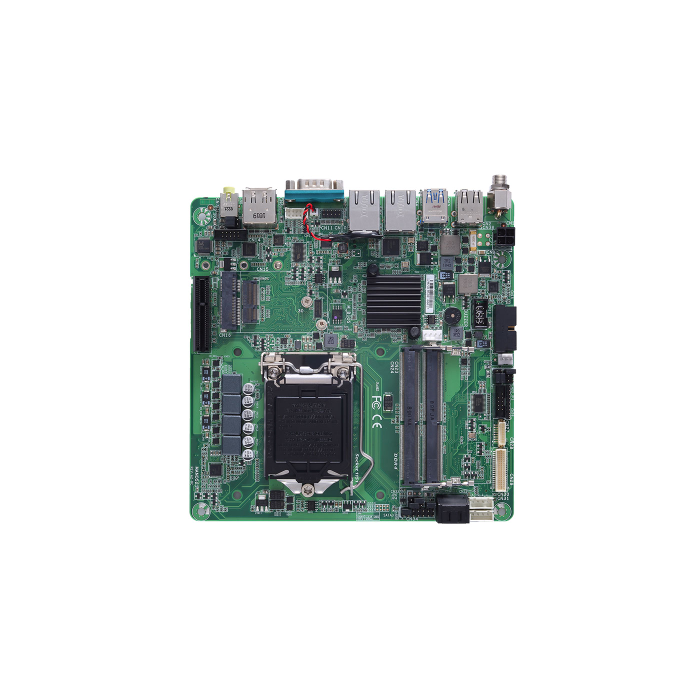

MANO521 Thin Mini-ITX SBC 9th/8th Gen i7/i5/i3

A$0.00

In stock

SKU

MANO521PHGGA-xxxx

Thin Mini-ITX SBC with LGA1151 9th/8th Gen Intel® Core™ i7/i5/i3 Processor, DisplayPort++, HDMI, LVDS, VGA, USB 3.0, M.2 and Dual GbE LAN

LGA1151 9th/8th gen Intel® Core™ i7/i5/i3 processor

Intel® H310 chipset (Q370 optional)

2 DDR4 SO-DIMM for up to 32GB of memory

4 USB 3.0 and 4 USB 2.0 ports

2 COM ports

2 SATA-600, mSATA and M.2 Key M (NVMe)

PCIe x4, M.2 Key E, PCI Express Mini Card slot

brand

Axiomtek

Specifications

CPU	LGA1151 9th/8th gen Intel® Core™ i7/i5/i3, Intel® Pentium® processors Gold/Celeron® processors (up to 65W)
Chipset	Intel® H310 Intel® Q370 (optional)
System Memory	2 x 260-pin DDR4-2666/2400 SO-DIMM, up to 32GB
BIOS	AMI
COM	1 x RS-232/422/485 1 x RS-232
USB	4 x USB 3.0 4 x USB 2.0
Ethernet	2 x 10/100/1000 Mbps (Intel® i211-AT & Intel® i219-V (LM))
Display	1 x DisplayPort++ 1 x HDMI 1.4b (3840 x 2160 @30Hz) 1 x LVDS 1 x VGA (Wafer connector) 1 x eDP (optional)
Digital I/O	8-channel in/out programmed
Audio	MIC-in/Line-in/Line-out
Storage	2 x SATA-600 1 x mSATA 1 x M.2 Key M (22 x 42/22 x 60/22 x 80); supports NVMe
Expansion	1 x PCIe x4 1 x M.2 Key E (22 x 30) 1 x Full-size PCI Express Mini Card slot
Others	Infenon SLB9665TT2.0 with TPM 2.0 compliant
Battery	Lithium 3V/220mAH
Power Input	DC Power Jack connector ATX 2 x 2-pin vertical/horizontal(optional) connector support 12V, 19V to 24 VDC input AT Auto Power On function supported
Watchdog Timer	255 levels, 1 to 255 sec.
Hardware Monitoring	Yes
Operating Temperature	0°C to +60°C (+32°F to +140°F)
Relative Humidity	10% to 95% relative humidity, non-condensing
Dimensions	170 x 170 mm
Board Thickness	1.6 mm
Certifications	CE
