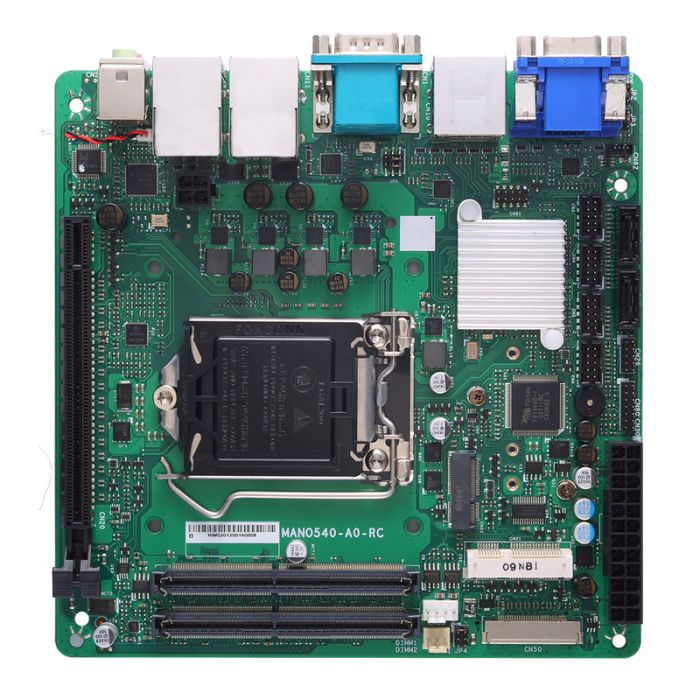

MANO540 is a mini-ITX motherboard powered by 10th Gen Intel® Core™ i9/i7/i5/i3 processor (codename: Comet Lake) with the Intel® H410 chipset. Contained in a small form factor of 17 x 17 cm, this industrial motherboard is an excellent choice for operation within space-constrained environments including ndustrial automation, self-service kiosks, and other infotainment driven solutions.
FCLGA1200 10th gen Intel® Core™ i9/i7/i5/i3 processor
FCLGA1200 10th gen Intel® Core™ i9/i7/i5/i3, Intel® Pentium® processors Gold/Celeron® processors (up to 65W)
Chipset
Intel® H410
System Memory
2 x 260-pin DDR4-2933/2666/2400 SO-DIMM, up to 64GB
BIOS
AMI
COM
1 x RS-232/422/485 (with +5V/+12V power)
1 x RS-232
USB
2 x USB 3.2 Gen1
5 x USB 2.0
Ethernet
1 x 10/100/1000 Mbps Ethernet (Intel® i211-AT & Intel® i219-LM)
Display
1 x DisplayPort++
1 x HDMI 2.0
1 x eDP
1 x VGA
Digital I/O
8-channel in/out programmed
Audio
MIC-in/Line-in/Line-out
Storage
1 x M.2 Key B 2242/2280/3042/3052 (optional)
2 x SATA-600
Expansion
1 x PCIe x16
1 x M.2 Key B
1 x M.2 Key E 2230
1 x mini-PCIe
Others
Onboard TPM 2.0 (optional)
Battery
Lithium 3V/220mAH
Power Input
Standard 12V ATX power
24+4 pin ATX connector
AT Mode Auto Power Function supported
Watchdog Timer
255 levels, 1 to 255 sec.
Hardware Monitoring
Yes
Operating Temperature
0°C to +60°C (+32°F to +140°F)
Relative Humidity
10% - 95% relative humidity, non-condensing
Dimensions
170 x 170 mm
Board Thickness
1.6 mm
Certifications
CE
Description
MANO540 is a mini-ITX motherboard powered by 10th Gen Intel® Core™ i9/i7/i5/i3 processor (codename: Comet Lake) with the Intel® H410 chipset. Contained in a small form factor of 17 x 17 cm, this industrial motherboard is an excellent choice for operation within space-constrained environments including ndustrial automation, self-service kiosks, and other infotainment driven solutions.
