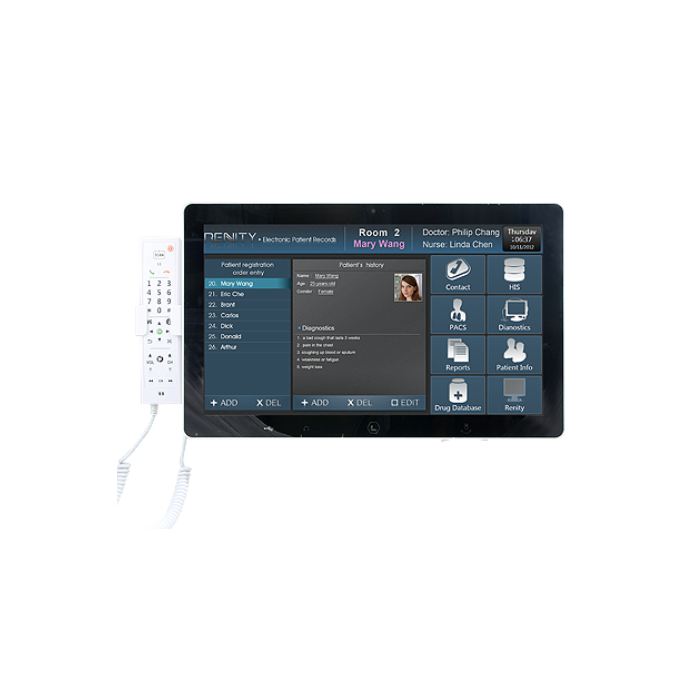

Shop Medi-View-185 Touch Panel PC

Details

Onboard Intel® Atom™ Processor Z3735F, Ultra Slim modern aesthetic design, High resolution CCD camera, Fanless low power platformIP-65 on Front Panel Protection, VOIP Handset, Antibacterial casing materials, Phone Cradle and on/off hook Sensor

More Information

brand

Avalue Technology Inc

Specifications

System
Processor	Intel® Atom™ Processor Z3735F
System Memory	2GB DDR3L RAM

Storage
Storage	32GB eMMC

Panel
LCD Size	18.5
Display Type	HD
Resolution	1366x768
Pixel pitch	0.3(H) x 0.3(V) mm
Luminance	300 cd/m2
Contrast ratio	700~ 1000
Viewing angle	Horizontal 150 ~170; Vertical 140 ~160
Response time	TR 2.5 -2.5ms; TF 3.5-5.5ms
Backlight	LED
Touch Type	Projective Capacitive
Touch Light Transmission	88% +/1 3%
Touch Controller	Control Board EETI

I/O
USB	3 x USB2.0 1 x Mcro USB Client (Andriod)
Other	2 x Stero Phone Jack 1 x Digital Mic RFID/SCR module onboard Wifi Multimedia Handset (without Barcode Scanner)

Audio
Chipset	Realtek ALC5645
Audio Interface	Mic-in and Line-out
Speaker Output	2 x 3W Speaker

Ethernet
Chipset	Microchip LAN9512 10/100MB Ethernet
Ethernet Interface	10/100 Base-Tx GbE compatible
LAN Port	1 x RJ45

Mechanical & Environmental
Power Type	ATX
Operating Temperature	0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature	-10°C ~ 60°C (14°F ~ 140°F)
Operating Humidity	0% ~ 90% Relative Humidity, Non-Condensing
Weight	3.75 kgs
Mounting Kit	Hinge Mount / VESA 75 mm x 75mm
Vibration Test	With SSD/mSATA : 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis
Shock Test	With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine, 11ms
System Fan	Fanless
Construction - Front	White Plastic
Construction - Rear	White Plastic
Finishing	Anti-microbial
Dimension	463.95 x289.95 x 68.83 mm

Certifications
Certification Information	CE CLASS A FCC Part 15, CLASS A UL/IEC/EN60601-1 3rd Edition

Software Support
OS Information	Android 4.4

Power Requirement
Power Connector	DC Jack
Power Requirement	12V ~ 24V Input
Adapter	Input:100~ 240 Vac/50~ 60Hz; Output 90W Adapter (19V/4.73A)

Description

Onboard Intel® Atom™ Processor Z3735F, Ultra Slim modern aesthetic design, High resolution CCD camera, Fanless low power platformIP-65 on Front Panel Protection, VOIP Handset, Antibacterial casing materials, Phone Cradle and on/off hook Sensor

Reviews

Write Your Own Review

Downloads

Data sheet
