MiMo LTE Wall antenna High Gain

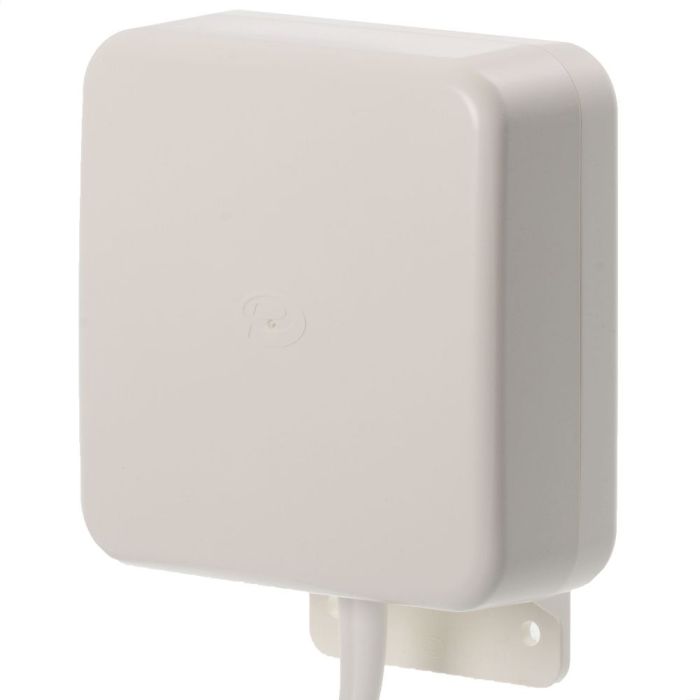

Wall Mount Gain MiMo Antenna
Wall Mount Gain MiMo Antenna
· Supports MiMo & Diversity across 2G/3G/4G
· Two wideband elements with gain
· Durable wall mount housing
· Suitable for mast, wall and desk mounting
| Specifications | Frequency Range Element 1 698-960 / 1710-2700 MHz Element 2 698-960 / 1710-2700 MHz Operational bands 2G / 3G / 4G Radiation pattern Hybrid VSWR (excluding cable) < 3:1 Peak Gain(excluding cable loss) 698-960 MHz 2dBi 1710-2170 MHz 5dBi 2.2-2.7 GHz 4dBi Efficiency - Excluding Cable Loss (all bands) > 50% Correlation Co-efficient ( all bands) < 0.2 Element Isolation > 20dB Max Input Power 20 W Impedance 50Ωss) 698-960 MHz 2dBi 1710-2170 MHz 5dBi 2.2-2.7 GHz 4dBi Efficiency - Excluding Cable Loss (all bands) > 50% Correlation Co-efficient ( all bands) < 0.2 Element Isolation > 20dB Max Input Power 20 W Impedance 50Ω |
|---|---|
| Description |
Wall Mount Gain MiMo Antenna
· Supports MiMo & Diversity across 2G/3G/4G · Two wideband elements with gain · Durable wall mount housing · Suitable for mast, wall and desk mounting |
