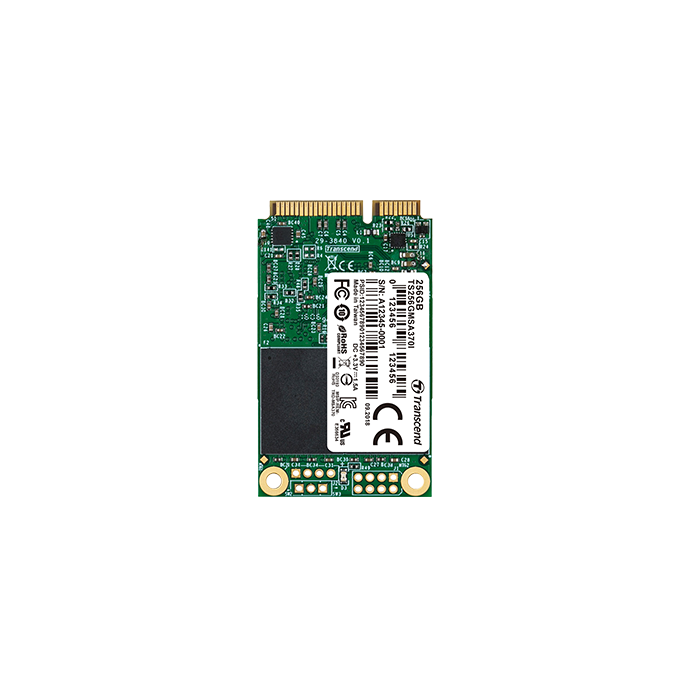

mSATA SSD MSA370 & MSA370I
Industrial SATA III M.2 SSD
- Advanced Global Wear-leveling and Block management for reliability
- DDR3 DRAM cache
Industrial SATA III M.2 SSD
· Suitable for wide-temperature applications
· Supports Intel Smart Response Technology (ISRT) and DEVSLP mode (MSA370)
· SuperMLC technology allows MLC NAND to act as SLC NAND
· 3D NAND ash for write protect and hardware purge security functions
· Optional support for write protect and hardware purge security functions
· Supports AHCI mode, TRIM command, and NCQ
| Specifications | Dimensions (Max.) 50.8 mm x 29.85 mm x 4.85 mm (2" x 1.18" x 0.19") Weight (Max.) 8 g (0.28 oz) mSATA Type MO-300 Pin 52 pin Form Factor mSATA
Bus Interface SATA III 6Gb/s
Flash Type MLC NAND flash Capacity 32 GB/ 64 GB/ 128 GB/ 256 GB
Operating Voltage 3.3V±5% Operating Temperature -40°C (-40°F) ~ 85°C (185°F) Storage Temperature -40°C (-40°F) ~ 85°C (185°F) Humidity 0% ~ 95% Shock 1500 G, 0.5 ms, 3 axis Vibration (Operating) 3 G (peak-to-peak), 5 Hz ~ 800 Hz (frequency) Vibration (Non-operating) 5 G (peak-to-peak), 5 Hz ~ 800 Hz (frequency)
Power Consumption (Operation) 1.82 watt(s) Power Consumption (Sleep) 0.28 watt(s)
MTBF 1,500,000 hour(s) Read Speed (Max.) 570 MB/s Write Speed (Max.) 400 MB/s |
|---|---|
| Description |
Industrial SATA III M.2 SSD
· Suitable for wide-temperature applications · Supports Intel Smart Response Technology (ISRT) and DEVSLP mode (MSA370) · SuperMLC technology allows MLC NAND to act as SLC NAND · 3D NAND ash for write protect and hardware purge security functions · Optional support for write protect and hardware purge security functions · Supports AHCI mode, TRIM command, and NCQ |
