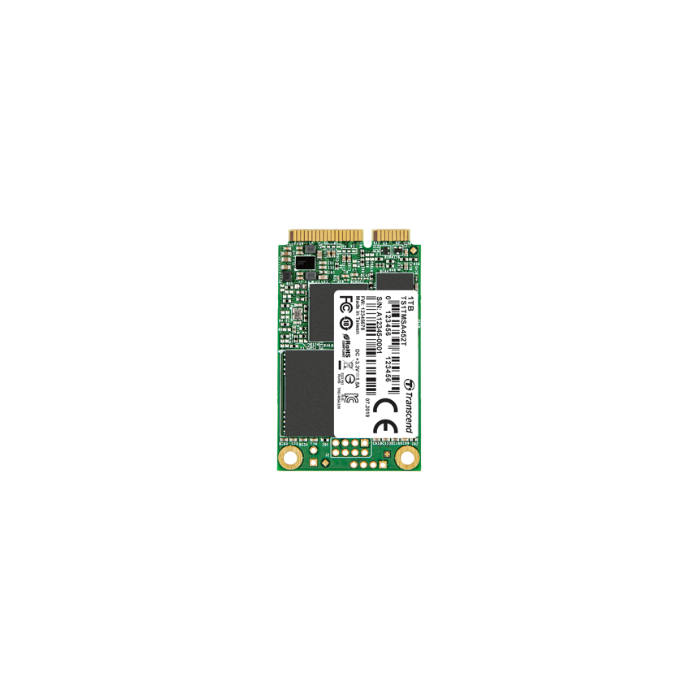

Shop MSata SSD MSA452T-I

Details

Transcend's SATA III 6Gb/s MSA452T mSATA SSD delivers blazing-fast performance, long-term reliability, and high cost-effectiveness. Featuring DRAM cache for fast access and state-of-the-art 96-layer 3D NAND flash, the MSA452T is fully tested to guarantee reliability in mission-critical applications, boasting an endurance rating of 3K Program/Erase cycles.

More Information

Specifications

Dimensions	50.8 mm x 29.85 mm x 4.85 mm (2" x 1.18" x 0.19")
Weight	8 g (0.28 oz)
mSATA Type	MO-300
Pin	52 pin
Form Factor	mSATA
Interface
Bus Interface	SATA III 6Gb/s
Storage
Flash Type	3D TLC NAND flash
Capacity	64 GB/ 128 GB/ 256 GB/ 512 GB/ 1 TB
Operating Environment
Operating Voltage	3.3V±5%
Operating Temperature	Standard 0°C (32°F) ~ 70°C (158°F) Wide Temp. -40°C (-40°F) ~ 85°C (185°F)
Storage Temperature	-40°C (-40°F) ~ 85°C (185°F)
Humidity	5% ~ 95%
Shock	1500 G, 0.5 ms, 3 axis
Vibration (Non-operating)	2.17 G (peak-to-peak), 10 Hz ~ 700 Hz (frequency)
Power
Power Consumption (Operation)	2.4 watt(s)
Power Consumption (Sleep)	0.4 watt(s)
Performance
Sequential Read/Write (CrystalDiskMark, max.)	Read: 560 MB/s Write: 520 MB/s
4K Random Read/Write (IOmeter, max.)	Read: 95,000 IOPS Write: 85,000 IOPS
Mean Time Between Failures (MTBF)	3,000,000 hour(s)
Terabytes Written (Max.)	1,760 TB
Drive Writes Per Day (DWPD)	1.61 (3 yrs)
Note	Speed may vary due to host hardware, software, usage, and storage capacity. The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.

Description

Transcend's SATA III 6Gb/s MSA452T mSATA SSD delivers blazing-fast performance, long-term reliability, and high cost-effectiveness. Featuring DRAM cache for fast access and state-of-the-art 96-layer 3D NAND flash, the MSA452T is fully tested to guarantee reliability in mission-critical applications, boasting an endurance rating of 3K Program/Erase cycles.
