MIL-STD-810G (Multiple 5'/1.5m Drops) 26 times all corners and sides with single tablet while operating IP65 1000 times x 1 m tumble test Steel ball drop test, 25 mm diameter rounded end steel weight of 250 gm from 50cm. w/ screen protector Glass screen protector Operating Temperature: -10°C ~ 50°C
CPU
Intel® Atom TM X5-Z8550 Processor
Storage & Memory
LPDDR3 4GB on board, MAX support 8G 64GB or 128GB eMMC
Display
8" WUXGA 800x1280 IPS 370 nits /470 nits (option)
Audio
1 Digital microphone 2 integrated speaker
Input
10-point multi-touch and capacitive stylus, support glove mode and wet-touch mode 4 Physical buttons (power, vol+, vol-, barcode scanner key)
Cameras
2MP front camera 8MP rear camera, Auto Focus, Flash
Wireless
Optional Sierra EM7455 (North America/EMEA] GPS (onboard) Wi-Fi 802.11 a/b/g/n/AC Bluetooth® 4.1
Interface
Docking connector Full size USB 3.0 x1 Full size USB 2.0 x1 Replaceable DC jack Micro HDMI 3.5mm Audio jack SIM Card Reader Micro SDXC Card Reader Reset hole
Power Supply
Backup Battery / Hot swappable external battery Battery: 3.7V, 11850 mAh / 43.8Wh Battery operation: up to 10 hours
AC Adapter 65W (19V / 3.42A) Hand strap with stylus holder Optional Capacitive stylus pen Optional Vehicle Dock Optional Office Dock Optional Battery Chargers
Description

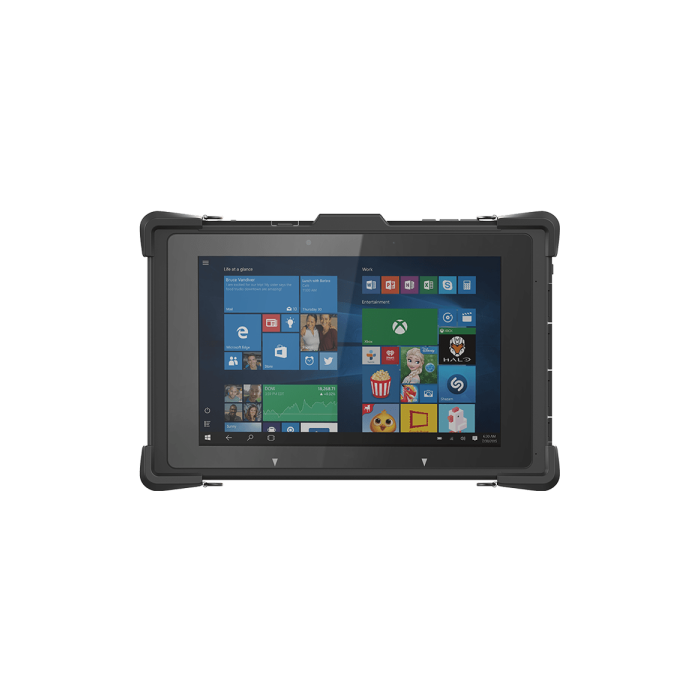

NB31 8" Rugged Tablet
MlL-STD 81OG tested, 5 ft. / 1.5m drop proof.
IP65, one-meter tumble test.
Hot swap battery, 11850mAh/3.7V battery pack.
Windows® 10 loT Enterprise.
Firmware TPM 2.0.
Optional fingerprint authentication support for biometric security system.
Optional vehicle dock, office dock, and battery charger.
Optional briefcase handle, stylus, hand strap.
Optional 4G LTE multi-carrier mobile broadband.
Optional RFID/NFC/2D Honeywell barcode readers for data acquisition.
