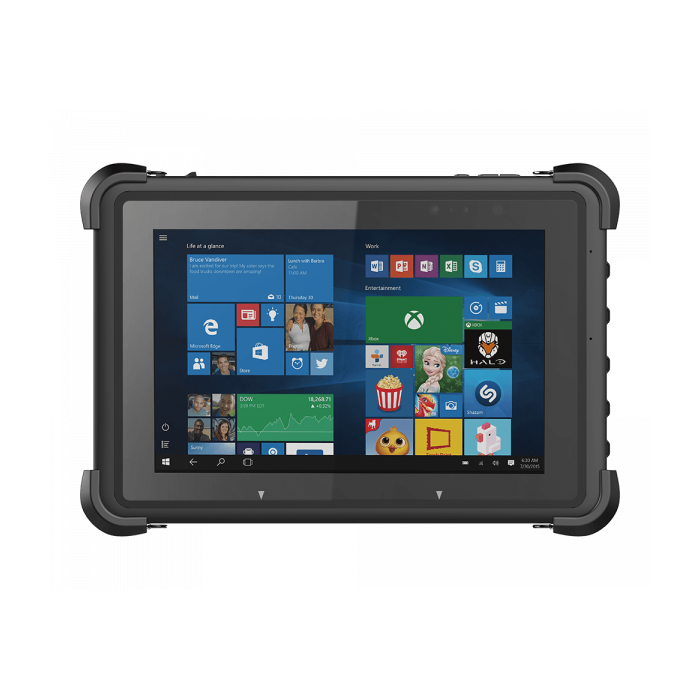

ND53 10.1" Rugged Tablet

Be the first to review this product

A$0.00

In stock

SKU

ND53

High Performance and Enlarged Battery Capacity

Key Features:

MlL-STD 81OG tested, 5 ft. / 1.5m drop proof
IP65, one-meter tumble test
Hot swap battery, integrated 9447mAh / 7.2V battery pack
Windows^® 10 loT Enterprise
Firmware TPM 2.0
10/100/1000 Ethernet port
Optional finger print authentication support for biometric security system
Optional vehicle dock, office dock, battery charger
Optional briefcase handle, stylus, hand strap
Optional 4G LTE multi carrier mobile broadband
Optional RFID/2D Honeywell barcode readers for data acquisition
Optional Intel^® RealSense 3D camera to create smart service of Industrial 4.0

Details

Built to withstand the harshest conditions, the ND53 Rugged Tablet is MIL-STD 810G tested, ensuring durability against drops of up to 5 feet (1.5 meters). With an IP65 rating and undergoing a rigorous one-meter tumble test, this tablet proves its resilience in any situation.

Powered by Windows® 10 IoT Enterprise, coupled with firmware TPM 2.0, the ND53 ensures seamless performance and robust security for your industrial needs. Its 10/100/1000 Ethernet port guarantees reliable connectivity in diverse environments.

Equipped with a hot-swappable, integrated 9447mAh / 7.2V battery pack, the ND53 offers extended operational hours without interruption. For enhanced security, optional fingerprint authentication is available, ensuring only authorized access to critical data.

Tailor the ND53 to your specific requirements with a range of optional accessories, including vehicle docks, office docks, and battery chargers. Its versatility extends further with optional features such as a briefcase handle, stylus, and hand strap, providing ergonomic convenience in various scenarios.

Stay connected on the go with optional 4G LTE multi-carrier mobile broadband, enabling seamless communication in remote locations. For efficient data acquisition, choose from optional RFID/2D Honeywell barcode readers, ensuring accurate and swift information capture.

Experience the future of industrial innovation with the optional Intel® RealSense 3D camera, empowering you to create smart services in the realm of Industrial 4.0. Whether you're in manufacturing, logistics, or field services, the ND53 Rugged Tablet is your reliable partner for productivity and performance in challenging environments.

More Information

More Information
brand	MSi (Micro-Star INT'L CO., LTD)
Specifications	Software Windows^®10 loT Enterprise Durability MIL-STD-810G (Multiple 5'/1.5m Drops) 26 times all corners and sides with single tablet while operating IP65 100 times x 1 m tumble test Steel ball drop test, 25 mm diameter rounded end steel weight of 250 gm from 50cm. w/ screen protector Glass screen protector Operating Temperature: -10°C ~ 50°C CPU Intel^® Core i7-8500Y Processor Intel^® Core i5-8200Y Processor Intel^® Core m3-8100Y Processor Storage & Memory LPDDR3 8GB on board, MAX support 16GB 128GB, 256GB, 512GB or 1TB SSD Optional 64GB or 128GB eMMC Display 10.1" 1200X1920 IPS 550 nits (Typ) Audio 2 Digital microphone 2 integrated speaker Input 10-point multi-touch and capacitive stylus, support glove mode and wet-touch mode 4 Physical buttons (power, vol+, vol-, barcode scanner key) Cameras 2MP front camera 8MP rear camera, Auto Focus, Flash Optional RealSense D415 3D Camera Wireless GPS Ublox NEO-M8N on board Optional Sierra EM7565 or Quectel EM06(North America/EMEA) Wi-Fi 802.11a/b/g/n/AC (Intel AC 9260 M.2 2X2) Bluetooth^® 5.0 (Intel AC 9260 M.2 2X2) Interface Docking connector 2 x Full size USB 3.0 RJ45 Gigabit Ethernet Port Replaceable DC jack HDMI™ Micro Connector 3.5mm Audio jack Micro SIM card reader Micro SDXC Card Reader Reset hole Power Supply AC adaptor 65W (19V/3.42A) Backup Battery / Hot swappable external battery Battery: 9447mAh (68Wh) or 7.2V 6298mAH (45.3Wh) optional Battery operation: up to 13hrs (base on 6 cells) Security Fingerprint reader TCEPC1/ D1 or FCU115-1 (Optional) Trusted Platform Module [ TPM 2.0 ] Dimensions & Weight 13.72" x 7.56" x 0.86" [283.4mm x 192.0mm x 21.9mm] 3.2 lbs (1470g) Collaboration Optional Barcode scanner Honeywell N3680/N6683/N6783 9 Axis MEMS sensor (Accelerometer, eCompass, Gyroscope) Ambient Light Sensor Proximity Sensor Accessories AC Adapter 65W (19V / 3.42A) Optional Hand strap with stylus holder Optional shoulder strap Optional Vehicle Dock Optional Office Dock
Description	Built to withstand the harshest conditions, the ND53 Rugged Tablet is MIL-STD 810G tested, ensuring durability against drops of up to 5 feet (1.5 meters). With an IP65 rating and undergoing a rigorous one-meter tumble test, this tablet proves its resilience in any situation. Powered by Windows® 10 IoT Enterprise, coupled with firmware TPM 2.0, the ND53 ensures seamless performance and robust security for your industrial needs. Its 10/100/1000 Ethernet port guarantees reliable connectivity in diverse environments. Equipped with a hot-swappable, integrated 9447mAh / 7.2V battery pack, the ND53 offers extended operational hours without interruption. For enhanced security, optional fingerprint authentication is available, ensuring only authorized access to critical data. Tailor the ND53 to your specific requirements with a range of optional accessories, including vehicle docks, office docks, and battery chargers. Its versatility extends further with optional features such as a briefcase handle, stylus, and hand strap, providing ergonomic convenience in various scenarios. Stay connected on the go with optional 4G LTE multi-carrier mobile broadband, enabling seamless communication in remote locations. For efficient data acquisition, choose from optional RFID/2D Honeywell barcode readers, ensuring accurate and swift information capture. Experience the future of industrial innovation with the optional Intel® RealSense 3D camera, empowering you to create smart services in the realm of Industrial 4.0. Whether you're in manufacturing, logistics, or field services, the ND53 Rugged Tablet is your reliable partner for productivity and performance in challenging environments.

Reviews

Write Your Own Review

Downloads

Data sheet
