2 x 260-pin SO-DIMM sockets, supports DDR4 1866/2133 MHz Non ECC, un-buffered memory up to 32G (single socket max. 16GB)

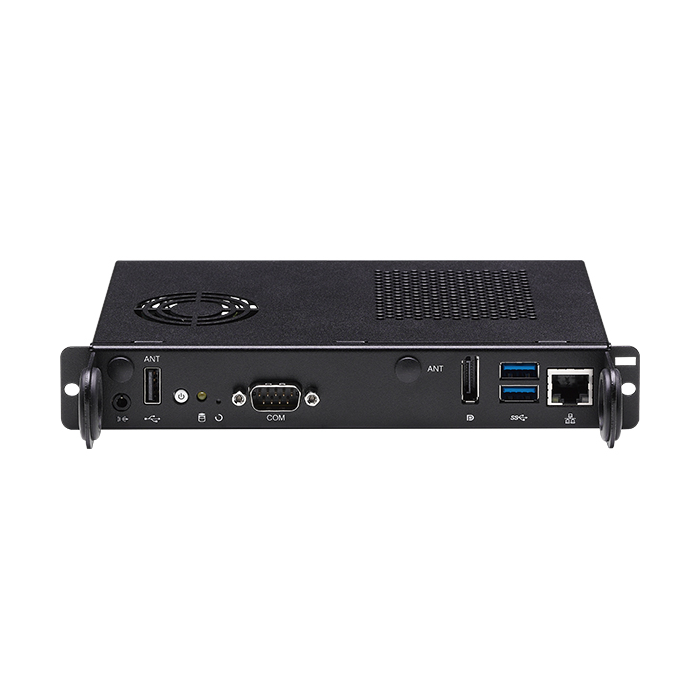

I/O Interface-Front
1 x Power button with LED1 x Reset button1 x DP connector for DisplayPort++1 x RJ45 with LEDs for Gigabit LAN2 x USB 3.01 x USB 2.01 x COM port (COM2)1 x Audio line out2 x AntennaOnboard TPM 2.0 ICCompliant to Intel® vPro™ and Intel® Active Management Technology
I/O Interface-Rear (TX25)
1 x HDMI 2.0a supporting 4K2K resolution1 x DisplayPort 1.2 supporting 4K2K resolution1 x UART TX, RX 3.3V TTL (COM 1)1 x Audio Line out R/L3 x USB 2.01 x USB 3.11 x COM port (COM2)1 x Audio Line outControl signals (PWR_STATUS, PS_ON#, PB_DET, CEC, SYS_FAN)
Storage
1 x M.2 2280 M Key, support SATA 3.0/PCIe Gen 3 signal
Expansion
1 x M.2 2230 E Key, support PCIe/USB 2.0 Wi-Fi module
Dimensions
200mm (W) x 119mm (D) x 30mm (H) (7.8” x 4.7” x 1.1”)
Power Power Supply
DC power input +12V~+19V
Environment
Operating temperature: 0°C to 45°CStorage temperature: -20°C to 80°CHumidity: 95% (non-condensing)
Certification
CE/FCC Class A
Operating System
Win10 (64-bit)
Description
8th Generation Intel® Core™ i processor
Support socket type CPU up to 35W
Intel® UHD 630 graphic engine
Support 3 independent 4K2K video output
Dual DDR4 SO-DIMM support
Support M.2 storage and Wi-Fi module
Onboard TPM 2.0
Compliant to Intel® vPro™ and Intel® Active Management Technology
