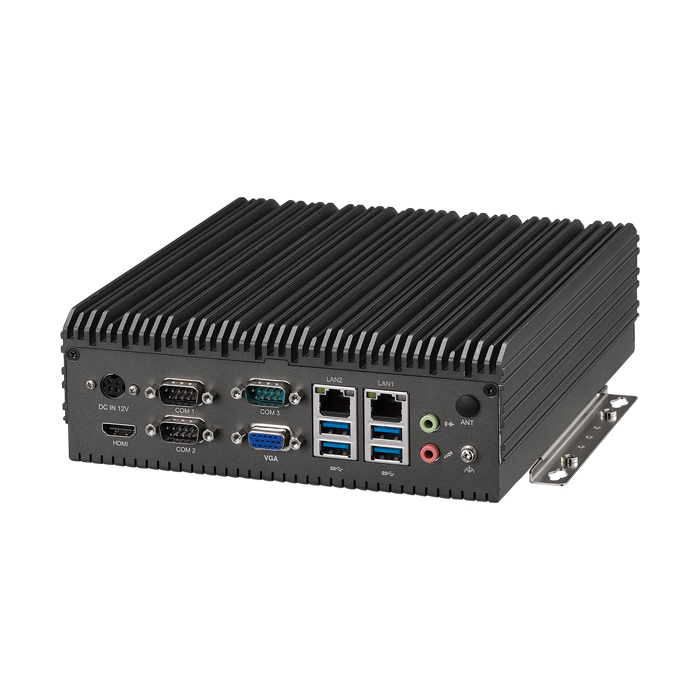

The Neu-X302 fanless computer has a wide range of I/Os to ensure that all of your important devices are linked without the need for additional expansion cards. The number of COM and USB ports has been increased, with six COM (three RS232 and three RS232/422/485) ports to connect your peripheral controllers and ten USB ports for ancillary devices such as sensors and signal testing equipment. This system incorporates a VGA connector for graphic output, which is essential for kiosks and equipment service panels. This is in addition to HDMI output for a second, independent screen with 4K resolution for factory display panels.
Features
Support 8th/9th Intel® Core™ socket type processor
Dual-channel DDR4 SO-DIMM, 32GB max.
1 x VGA and 1 x HDMI 1.4 4K display output
Dual Intel® LAN ports
6 x COM port, 10 x USB, Mic-in/Line-out
Optional TPM 2.0 for security advantage
Support Intel® AMT Technology
Onboard M.2 Key B/E for storage & wireless connection
Intel® PCH Q370Intel® PCH H3102x DDR4 SO-DIMM socket, supports up to 32G DDR4 2666 SDRAM, with un-buffered and non-ECC
Graphic & Display
Intel® UHD Graphics 6301 x VGA output on the edge, resolution up to 1920 x 1200 @ 60Hz1 x HDMI 1.4 output on the edge, resolution up to 4096 x 2160 @ 30Hz1 x LVDS internal connector, dual channel, resolution up to 1920 x 1200 @ 60Hz (eDP: by request)
I/O Interface on the Front
Power button HDD LED status3 x RS232 DB9 COM port (COM4 support RI 5V or 12V)2 x Antenna holes
I/O Interface on the Rear
+12V DC input1 x HDMI 1.4 output, resolution up to 4096 x 2160 @30Hz3 x RS232/422/485 DB9 COM ports1 x VGA output2 x Intel® GbE LAN ports (Intel® I219-LM and I211-AT)4 x USB 3.01 x Mic-in, 1 x Line-out powered by Realtek ALC888
Internal I/O Function
6 x USB 2.0, internal pin header (with Intel® Q370 chipset)4 x USB 2.0, internal pin header (with Intel® H310 chipset)8 channel GPIO, 5V TTL level1 x Internal pin header for speaker with 2W amplifier
Expansion
1 x M.2 Key E, 2230, support optional Wi-Fi/Bluetooth module1 x M.2 Key B, 2242/3042, support optional SSD/3G/4G or LTE module1 x SIM card holder for M.2 Key B use
Storage
1 x 2.5” SATA SSD space1 x M.2 Key B, 2242, support optional storage module if 3G / 4G / LTE will not be used
Power Requirements
+12V DC inputEquip with 96W AC/DC power adapter in cartonAT/ATX power setting by jumper (ATX as the default)
Environment
Operating temperature: -5°C to 45°C ambient with air flow (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)Relative humidity (non-condensing): 95% (non-condensing)Storage temperature: -20°C to 80°CShock protection: 50G peak acceleration, 11ms according to IEC60068-2-27V ibration protection - Random: 2Grms @ 5~500 Hz, IEC60068-2-64 - Sinusoidal: 2G @ 5~500 Hz, IEC60068-2-6
Certification
CE approval (EN55032/EN55035)FCC Class A
Mechanical & Dimension
Aluminium and metal chassis with fanless design200mm (L) x 190mm (W) x 64.3mm (H) without mounting bracket200mm (L) x 212.5mm (W) x 70.3mm (H) with mounting bracket
Weight Information
Gross weight: 4.25kgsNet weight: 2.68kgs
