Neu-X60 Palm-sized Fanless Edge Computer

CPU Support

Intel® Processor N50 (up to 3.4 GHz, TDP 6W)

Graphics

Intel® UHD Graphics 750 MHz

Main Memory

• 1 x SO-DIMM socket, supports up to 16GB DDR4 3200MHz, non-ECC and un-buffered memory

• Pre-installed with one 4G DDR4 memory

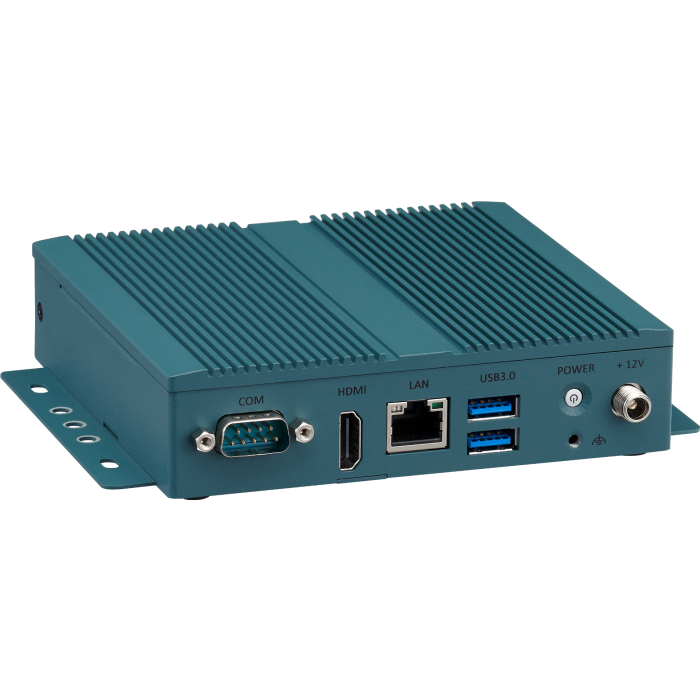

I/O Interface-Front

• 1 x 12V DC Jack, lockable design

• 1 x HDD Active LED

• 1 x Power button with LED

• 1 x RJ45 with LED for 2.5GbE LAN

• 2 x USB3.2

• 1 x HDMI1.4

• 1 x DB9 RS232/422/485

I/O Interface-Rear

2 x Antenna hole

Internal I/O

2 x 5-pin header for two USB 2.0 ports

Expansion

1x Full-size mini PCIe slot with nano sim slot onboard, support optional WiFi / BT/ 4G module

Storage

• 1x M.2 Key M 2242 storage, supports both SATA & PCIe signals

• Pre-installed with one M.2 Key M 64G SSD

Power Supply

• +12V DC Input

• One AC/DC 12V/5A, 50W power adapter in accessory

Environment

• Operating temperature: 0°C to 40°C ambient with 0.7m/s air flow

• Relative humidity: 10% to 95% (non-condensing)

• Vibration protection:

  - Random: 2Grms @ 5~500 Hz, IEC60068-2-64

  - Sinusoidal: 2G @ 5~500 Hz, IEC60068-2-6

Dimensions

• System dimension: 156mm (L) x 119.6mm (W) x 31mm (H) (With bracket)

• System weight: 0.0553 kg

• Package dimensions: 230x215x115mm

• Package weight: 1.15Kg

Operating System

• Win10 64-bit

• Linux 4.1
