NISE-105 Atom E3826 Dual Core Fanless PC

Details

Intel Atom® Processor E3826 Dual Core Fanless System

· Onboard Intel Atom® processor E3826 dual core, 1.46GHz

· Dual Independent Display from DVI-I and HDMI

· 2 x Intel® I120IT LAN ports support WoL, Teaming and PXE

· 2 x USB2.0 & 1 x USB3.0

· 4 x COM ports (COM1&COM2 with RS232/422/485, jumper-free setting)

· 1 x Optional Interface for optional Wi-Fi/3.5G modules

· External RTC battery holder for easy replacement

· Support -20 ~ 70 degree C extended operating temperature

· Support 9-30VDC input (nominal DC input: 24V)

More Information

Brand

Nexcom

Specifications

CPU Support	Onboard Intel® Atom™ processor E3826 Dual Core, 1.46GHzSupport Intel® Atom™ E3800 processor family from Single Core E3815, Dual Core E3825/E3826/E3827 and Quad Core E3845 with difference SKUs
Main Memory	1 x DDR3L SO-DIMM Socket, Support DDR3L 1066/1333 8GB RAM max., un-buffered and non-ECC
Display Option	Dual Independent Display - HDMI and DVI-D - HDMI and VGA (via DVI-I to VGA converter)

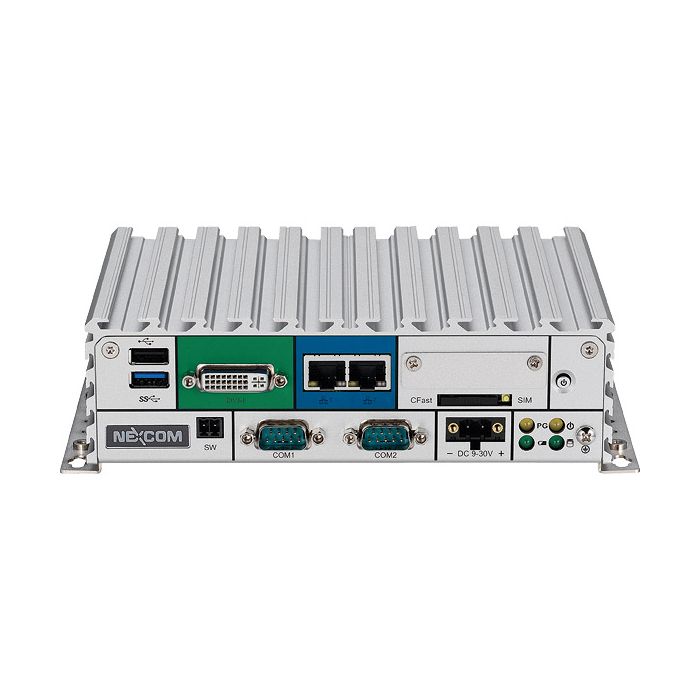

I/O Interface-Front	ATX power on/off switch1 x Power Status/1 x HDD Access/1 x Battery Low/1 x Programing LEDs1 x External CFast socket1 x SIM Card holder2 x Intel® I210IT GbE LAN Ports, support Wake on LAN, Teaming and PXE1 x DVI-I Display Output1 x USB3.0 (900mA per each)1 x USB2.0 (500mA per each)2 x DB9 for COM1 & COM2, both support RS232/422/485 with auto flow control - Jumper-free setting on RS232/422/485 - Support 5V/12V/Ring function by jumper setting, Ring as the default (COM2 Only)1 x Remote Power ON/OFF Switch1 x 2-pin DC input, support +9 to 30VDC input (nominal DC input: 24V)
I/O Interface - Rear	1 x USB2.01 x HDMI1 x RTC Battery2 x DB9 for COM3 & COM4 support RS232 only1 x Mic-in & 1 x Line-out2 x Antenna Holes for optional Wi-Fi/3.5G antenna1 x Optional I/F for optional miniPCIe Wi-Fi/3.5G modules
I/O Interface - Internal	4 x GPI and 4 GPO (5V, TTL Type)
Storage Device	1 x CFast (SATA2.0)1 x 2.5" HDD (SATA2.0)
Expansion Slot	1 x Mini-PCIe socket for optional Wi-Fi/ 3.5G modules
Power Requirement	Power input: +9VDC to +30VDC (nominal DC input: 24V)1 x Optional 24V, 60W power adapter
Support OS	Windows 8, 32bit/64bitWindows Embedded Standard 8, 32-bit/64-bitWindows 7, 32-bit/64-bitWindows Embedded Standard 7, 32-bit/64-bitWindows Embedded Compact 7, 32-bitWindows 10 IoT Enterprise, 64-bitLinux Kernel version 3.8.0
Dimensions	185mm (W) x 131mm (D) x 54mm (H) without wall-mount bracket
Construction	Aluminum and Metal Chassis with fanless design
Environment	Operating Temperature: Ambient with air flow: -20°C to 70°C with industrial grade device (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)Storage Temperature: -30°C to 85°CRelative Humidity: 10% to 95% (non-Condensing)Shock Protection: - HDD: 20G, half sine, 11ms, IEC60068-2-27 - CFast: 50G, half sine, 11ms, IEC60068-2-27Vibration Protection w/HDD Condition: - Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64 - Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6Vibration Protection w/CFast & SSD Condition: - Random: 2Grms @ 5~500 Hz, IEC60068-2-64 - Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6
Certifications	CEFCC Class AUL/ cUL
