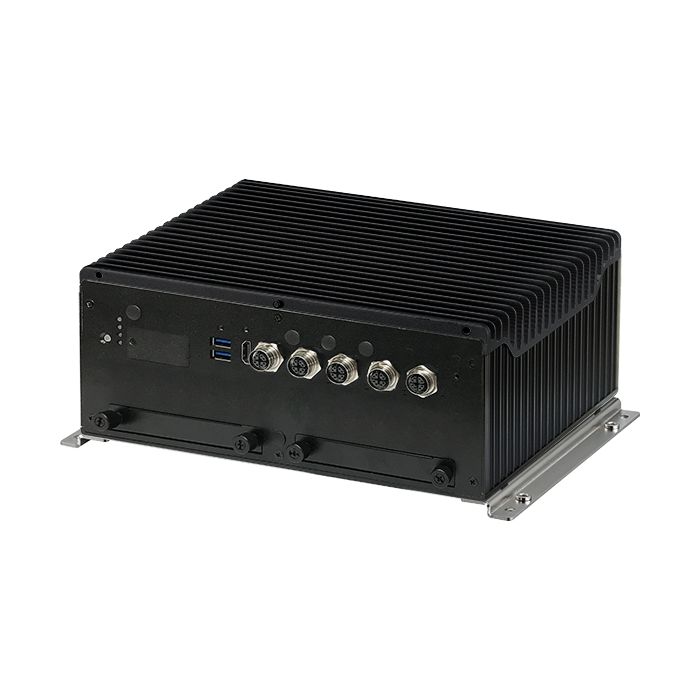

nROK7271 Fanless Vehicle PC 12/13th Gen CPU
Introducing nROK 7271 (Preliminary): A fanless, rugged rolling stock computer with 12/13th Gen Intel® Core™ CPU, DDR5, 5G/Wi-Fi, and PoE support, designed for industrial computing.
Key Features:
- Powered by 12/13th Gen Intel® Core™ CPU
- Fanless, compact and rugged design
- Designed with DDR5, excellent memory bandwidth, lower latency
- 2 x 2.5” SSD for data integrity (compatible with 15mm disk)
- 5G/Wi-Fi, PoE, 10GbE, daughter board expansion support
- 4 x Independent 10/100/1000/2500 Mbps PoE 802.3af/at, total 60W (nROK 7271-WIC4) / 30W (nROK 7271-WIC4-C8S)
- Additional 8-port LAN M12 X-coded, 10/100/1000 Mbps Ethernet Switch GbE, PoE 802.3af/at, max. 30W (nROK7271-WIC4-C8S)
- EN 50155, class OT3 conformity
- Wide voltage input 24~110VDC (w/ isolation)
- Optional up to 3-sec protection against temporary voltage dips
The NEXCOM system nROK 7271 is designed to enhance the operational efficiency of public transportation and services. It is powered by an Intel® 12/13th Gen FCLGA1700 socket-type CPU and offers a versatile solution with 4/12-port 802.3 af/at PoE, delivering robust computing capabilities. Support for dual SIM cards per modem ensures improved connectivity quality through software-based backup of two SIM cards. Additionally, including RAID 0 and 1 guarantees the safety of data stored on the 2 x external SSD drives.
What sets the nROK 7271 apart is its ability to provide power isolation for voltages ranging from 24V to 110VDC. It also offers optional 3-second protection against temporary voltage dips, a critical feature for scenarios where fluctuations in input voltage could potentially disrupt equipment operation.
With a daughter board expansion design, it offers the option for an additional 1 x mini-PCIe slot (BOM optional for M.2 Key E) and 2 x M.2 Key B slots. Moreover, it provides flexibility with options for an 8-port 1Gbps Ethernet Switch GbE with PoE 802.3af/at support (max. 30W), or a 2-port 10GbE M12 X-coded configuration. This versatility makes the nROK 7271 well-suited to meet various demands in rolling stock applications, including infotainment, transportation cellular routers, video servers, and video surveillance systems.
Key Features:
- Powered by 12/13th Gen Intel® Core™ CPU
- Fanless, compact and rugged design
- Designed with DDR5, excellent memory bandwidth, lower latency
- 2 x 2.5” SSD for data integrity (compatible with 15mm disk)
- 5G/Wi-Fi, PoE, 10GbE, daughter board expansion support
- 4 x Independent 10/100/1000/2500 Mbps PoE 802.3af/at, total 60W (nROK 7271-WIC4) / 30W (nROK 7271-WIC4-C8S)
- Additional 8-port LAN M12 X-coded, 10/100/1000 Mbps Ethernet Switch GbE, PoE 802.3af/at, max. 30W (nROK 7271-WIC4-C8S)
- EN 50155, class OT3 conformity
- Wide voltage input 24~110VDC (w/ isolation)
- Optional up to 3-sec protection against temporary voltage dips
| brand | Nexcom | ||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
||||||||||||||||||||||||||||||||
| Description | The NEXCOM system nROK 7271 is designed to enhance the operational efficiency of public transportation and services. It is powered by an Intel® 12/13th Gen FCLGA1700 socket-type CPU and offers a versatile solution with 4/12-port 802.3 af/at PoE, delivering robust computing capabilities. Support for dual SIM cards per modem ensures improved connectivity quality through software-based backup of two SIM cards. Additionally, including RAID 0 and 1 guarantees the safety of data stored on the 2 x external SSD drives. What sets the nROK 7271 apart is its ability to provide power isolation for voltages ranging from 24V to 110VDC. It also offers optional 3-second protection against temporary voltage dips, a critical feature for scenarios where fluctuations in input voltage could potentially disrupt equipment operation. With a daughter board expansion design, it offers the option for an additional 1 x mini-PCIe slot (BOM optional for M.2 Key E) and 2 x M.2 Key B slots. Moreover, it provides flexibility with options for an 8-port 1Gbps Ethernet Switch GbE with PoE 802.3af/at support (max. 30W), or a 2-port 10GbE M12 X-coded configuration. This versatility makes the nROK 7271 well-suited to meet various demands in rolling stock applications, including infotainment, transportation cellular routers, video servers, and video surveillance systems. Key Features:
|
